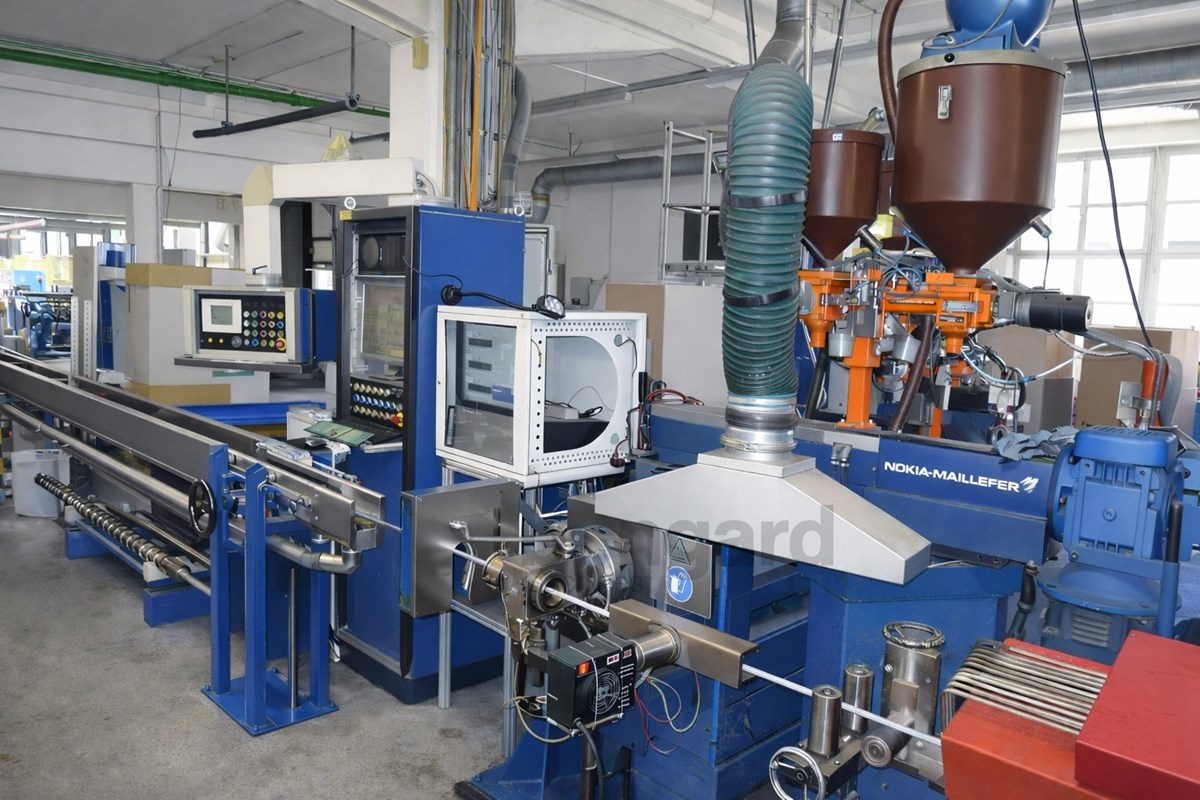

NOKIA-MAILLEFER Conductor and sheath extrusion line
general information
- Nummer: 13973
- control: Siemens S7-300
technical details
- up to now used for: LDPE, HDPE, Thermoplas flam retard, PE (-LLD,-LD,-MD,-HD)
-
suitable for:
- For the production of glass fiber cables and extrusion of full plastic inserts for steel cables.
- In addition, a third extruder is installed which can be moved in front of the system to alternatively manufacture hoses on the system with this extruder.
- technical condition: installed, electric in year 2002 modernized
- screw Ø: 1 x 100 / 1 x45 / 1 x 80 mm
- screw length: 24 D
- cable Ø max: 24 mm
- speed max: 100 m/min
- cross head: existent
- operation voltage: 380 V
- frequency: 50 Hz
- electrical cabinet: existent
- diameter control measuring device: existent
- plastificator: existent
- pay-off: existent
- take-up: existent
- caterpillars and capstan haul-offs: existent
- extruder: existent
- no. of extruders: 3
- cooling trough: existent
- dancer / accumulator: existent
- pay-off: existent
- mixer: existent
consisting of:
ITAL SPA 2200 pay-off
- reel flange Ø max: 2200 mm
CAPnet PLH 800 dancer
ITAL CN 800 pushing caterpilar
CAPnet DFO 350 fiber optic pay off
CAPnet JSF 801 defelction pulley
CAPnet RRH 801 defelction pulley
SWISSCAB GPN 18 Spinner
SETIC TRLB 400-1 tape pay off
SWISSCAB GPN 18 Spinner
MAILLEFER Guipeur 1 spinner
MAILLEFER Guipeur 2 spinner
BOREL continuous heating furnace
NOKIA-MAILLEFER NMB 100-24D extruder
NOKIA-MAILLEFER NMA 30-24D extruder
ZUMBACH ODAC 64XY diameter gauge
ITAL cooling trough
cable dryer
ZUMBACH ODAC 64XY diameter gauge
ZUMBACH ODAC 63 Trio measuring instrument
ITAL CN 800 pulling caterpillar
MAILLEFER ACO 1100-300 Control pulleys accumulator
CAPnet CHA 20-40C clamping caterpilar
NOKIA-MAILLEFER BTU 6-206 take-up
- reel flange Ø max: 2250 mm
electrical cabinet
MAILLEFER MXC80-24D extruder
ADEX cooling trough
Kühlstrecke / Vacuum Bad
