EVG Inline drawing - straightening and cutting line

EVG Inline drawing - straightening and cutting line EVG Inline drawing - straightening and cutting line EVG Inline drawing - straightening and cutting line EVG Inline drawing - straightening and cutting line EVG Inline drawing - straightening and cutting line EVG Inline drawing - straightening and cutting line EVG Inline drawing - straightening and cutting line EVG Inline drawing - straightening and cutting line EVG Inline drawing - straightening and cutting line EVG Inline drawing - straightening and cutting line

general information

  • Nummer: 14006

technical details

  • up to now used for: wire rod
  • suitable for: The line is used for processing wire rod in a continuous operation: straightening, stretching, rolling, and cutting up to a bar length of 14 meter.
  • inlet wire Ø max: 16 mm
  • inlet wire Ø min: 5 mm
  • no. of drafts: 2
  • capstan Ø 1: 584 mm
  • capstan Ø 2: 755 mm
  • speed max: 120 m/min
  • total connected load: 190 kW
  • operation voltage: 400 V
  • electrical cabinet: existent
  • pay-off: existent
  • descaling unit: existent
  • wire coating: existent
  • ribbing cassete: existent
  • additional data: The entire system is designed for a finished diameter range of 4-8 mm due to the installed straightening and cutting machine.

consisting of:

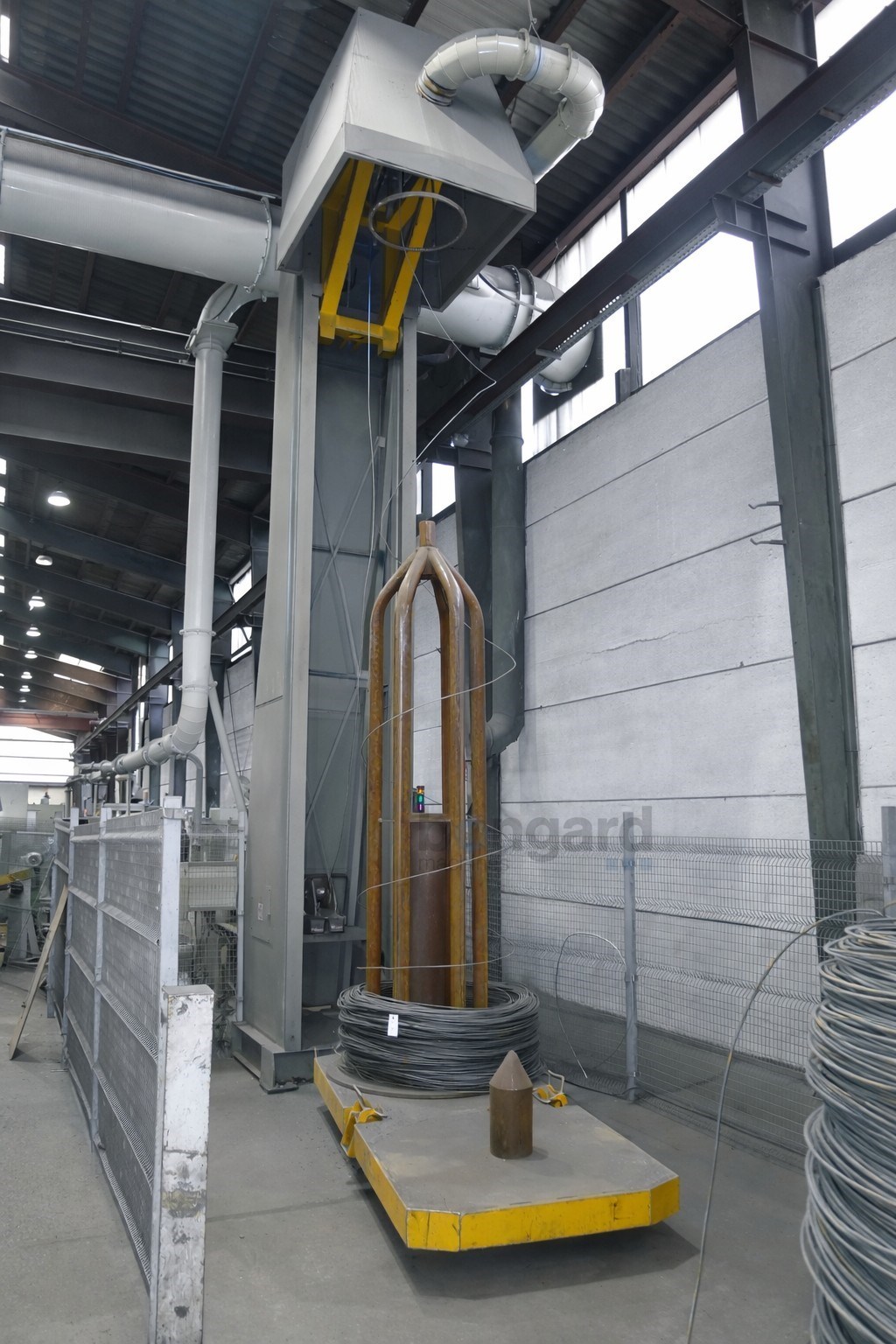

overhead-type pay-off

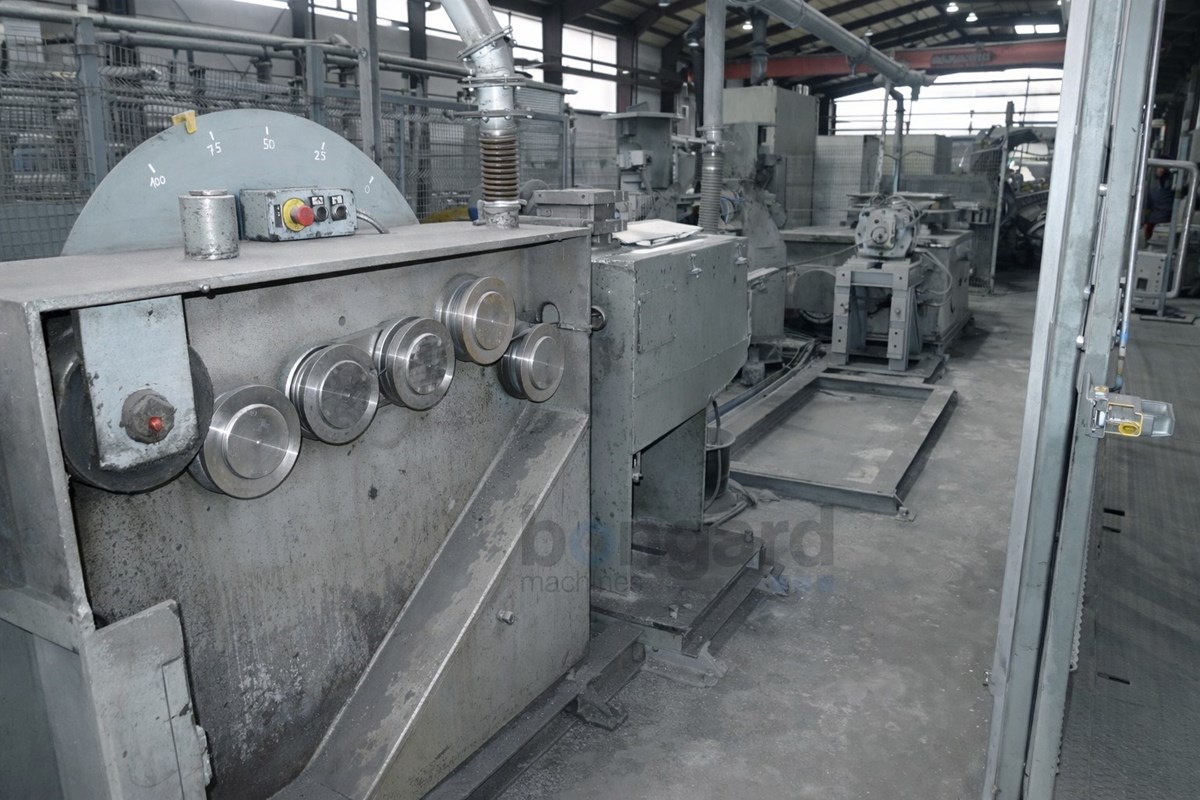

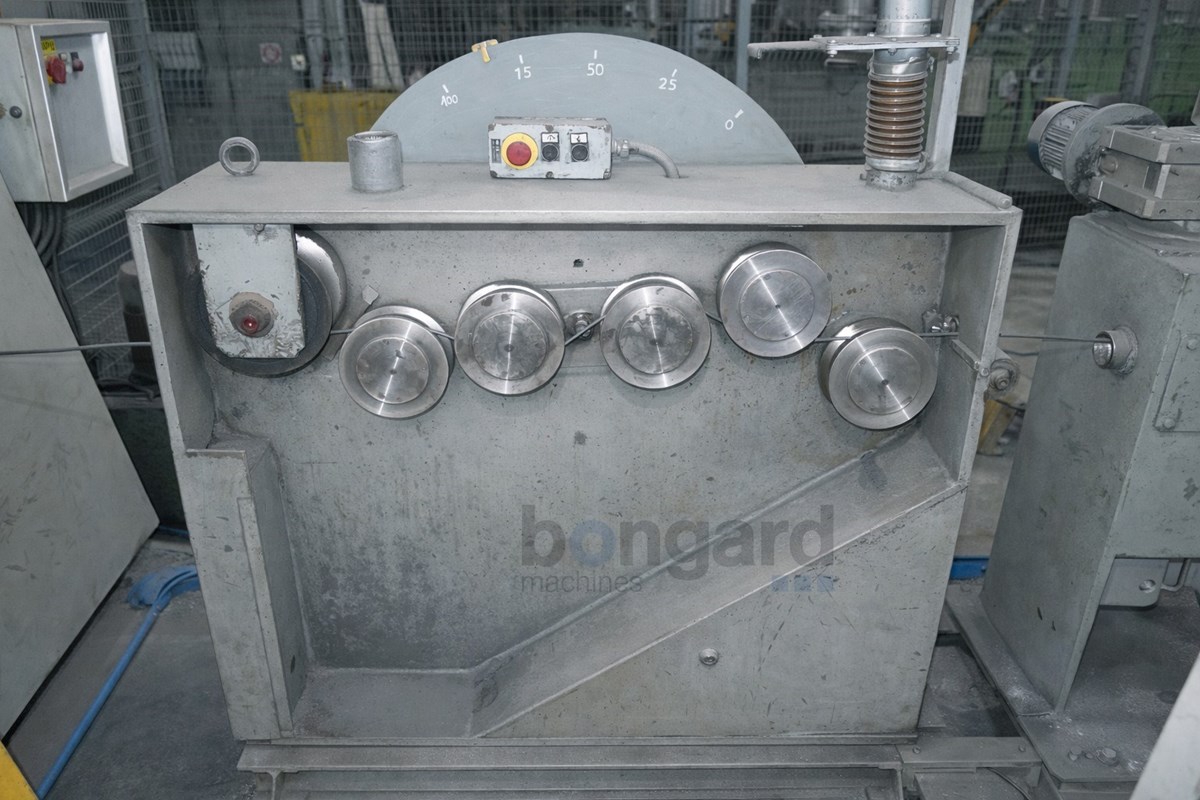

    mechanical descaler
      powder coating unit

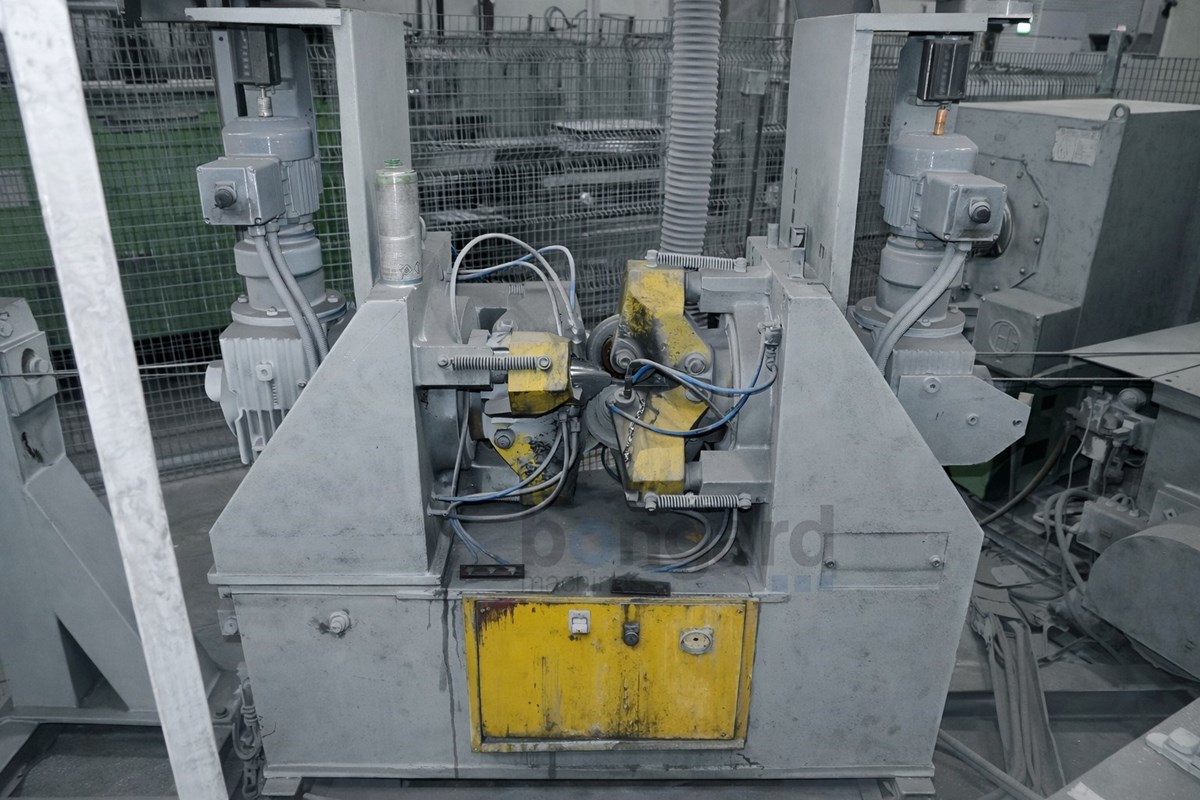

        Rolling stand

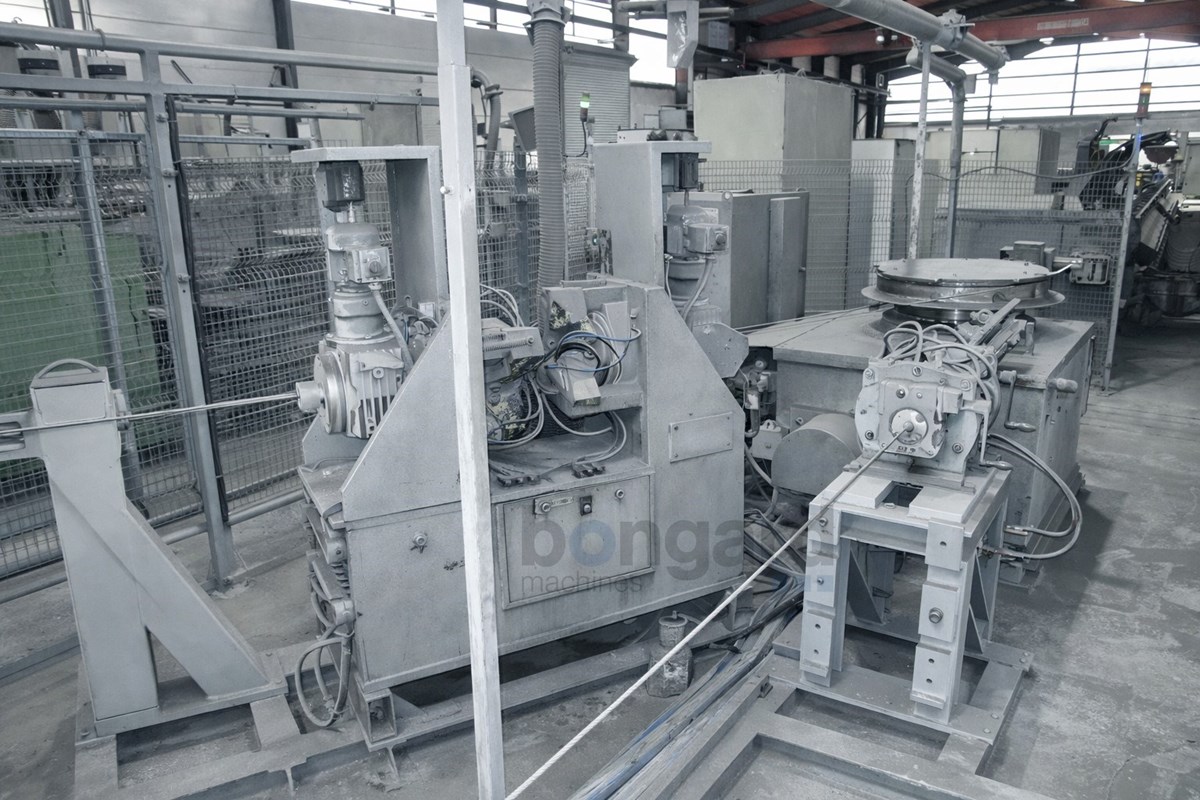

          PITTINI IMPIANTI drawing block
            dancer
              EVG DER 8-C straightering and cutting line

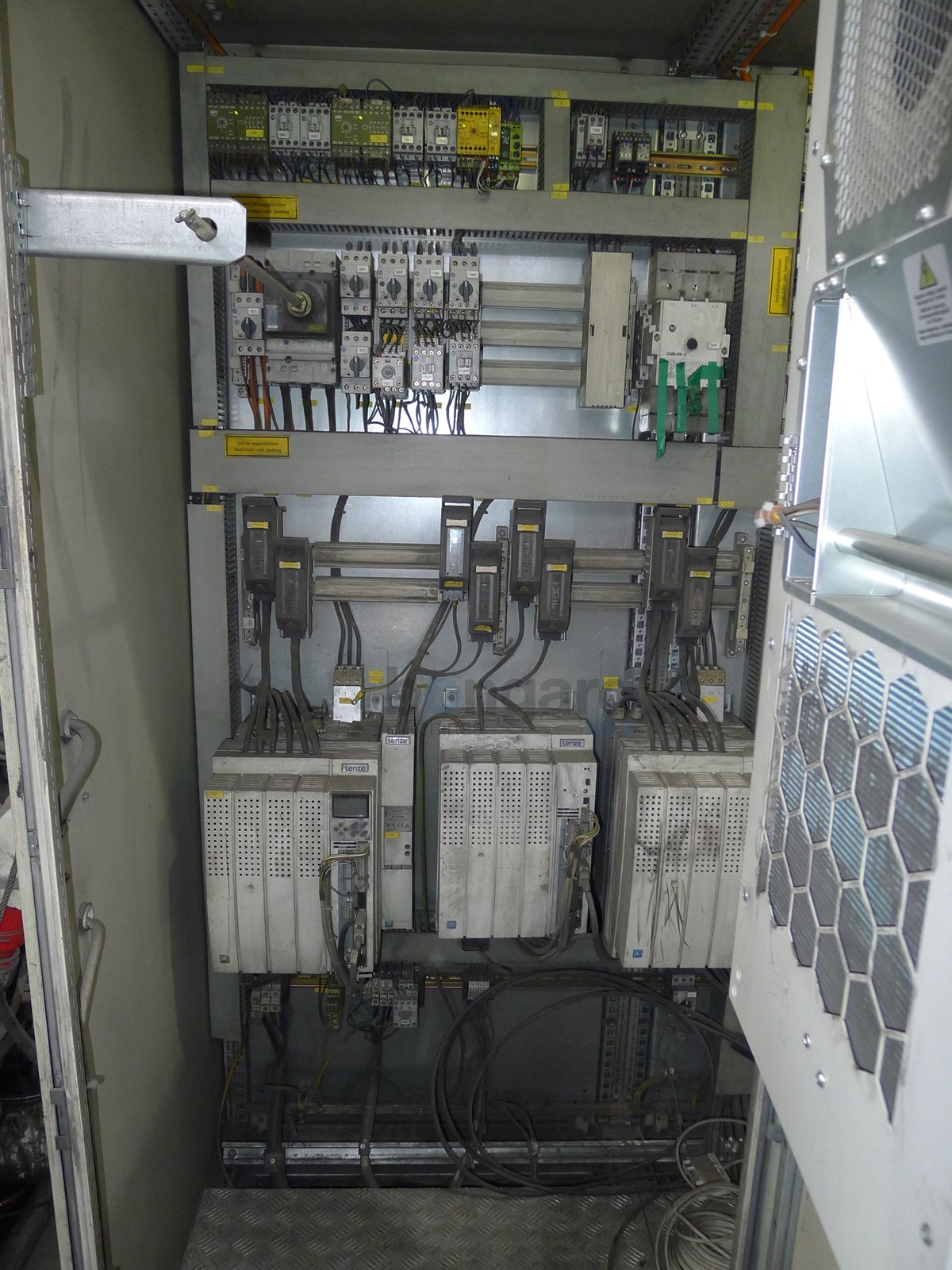

                EVG electrical cabinet straightening machine
                  PITTINI IMPIANTI electrical cabinet drawing block
