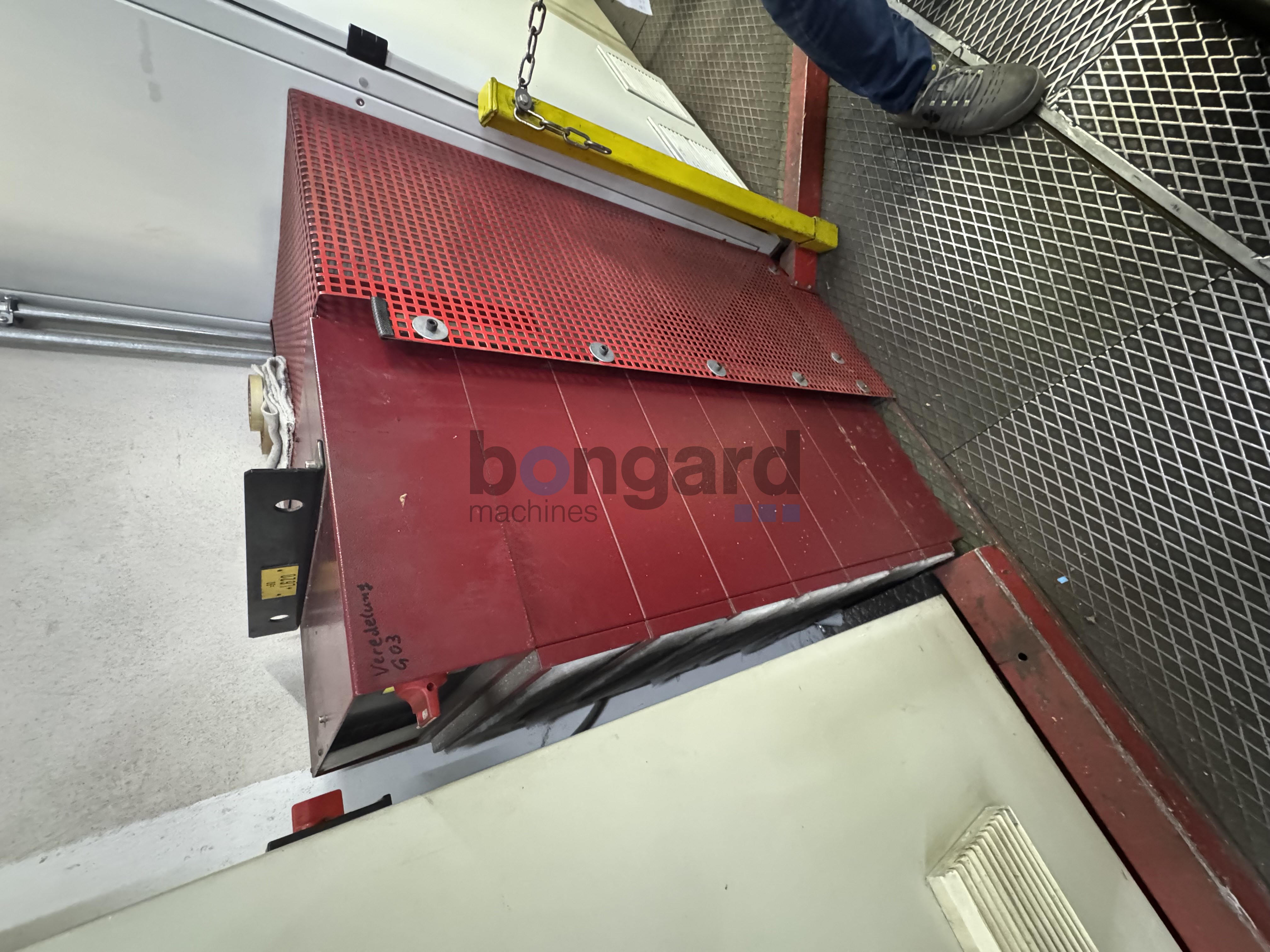

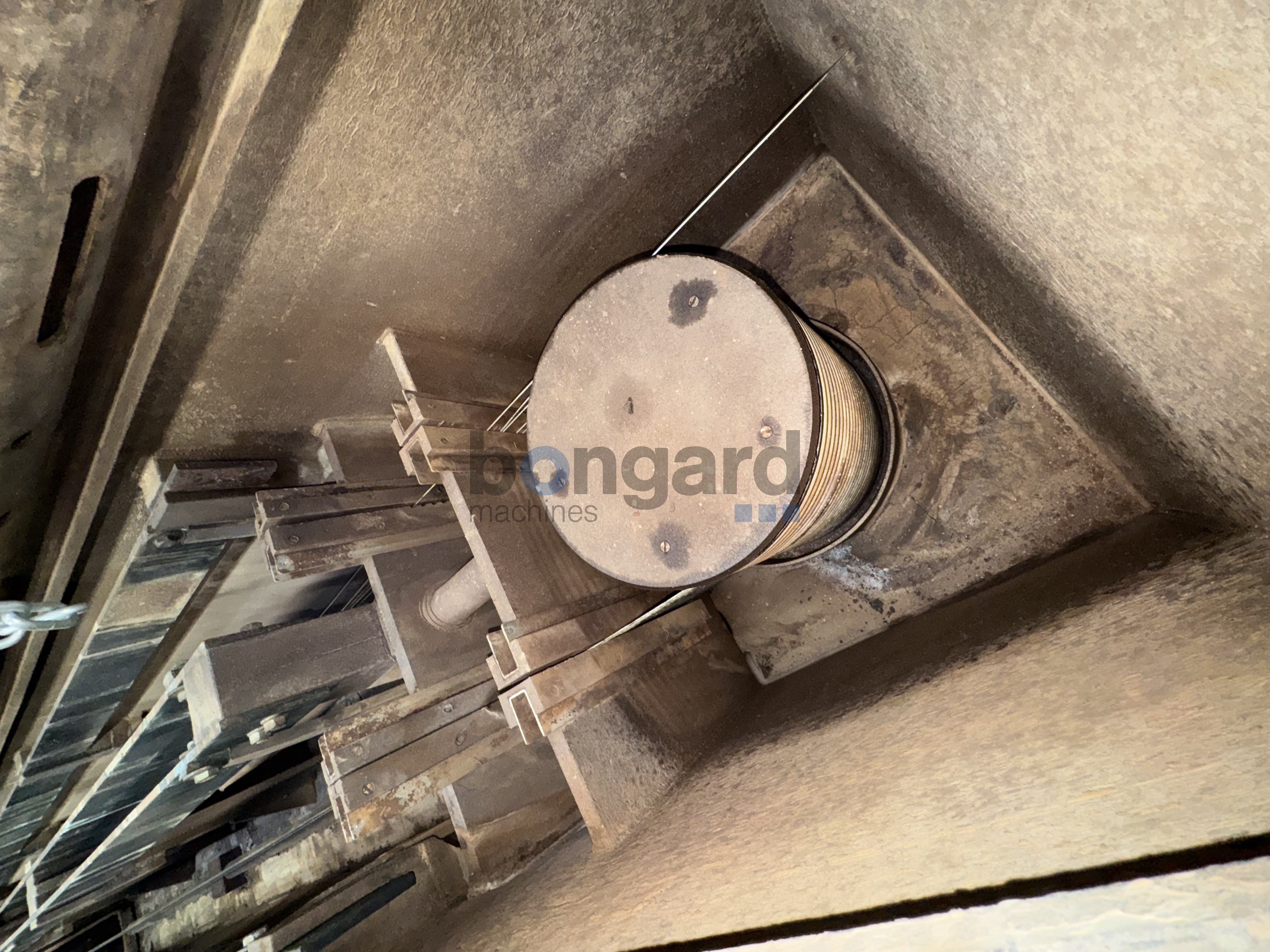

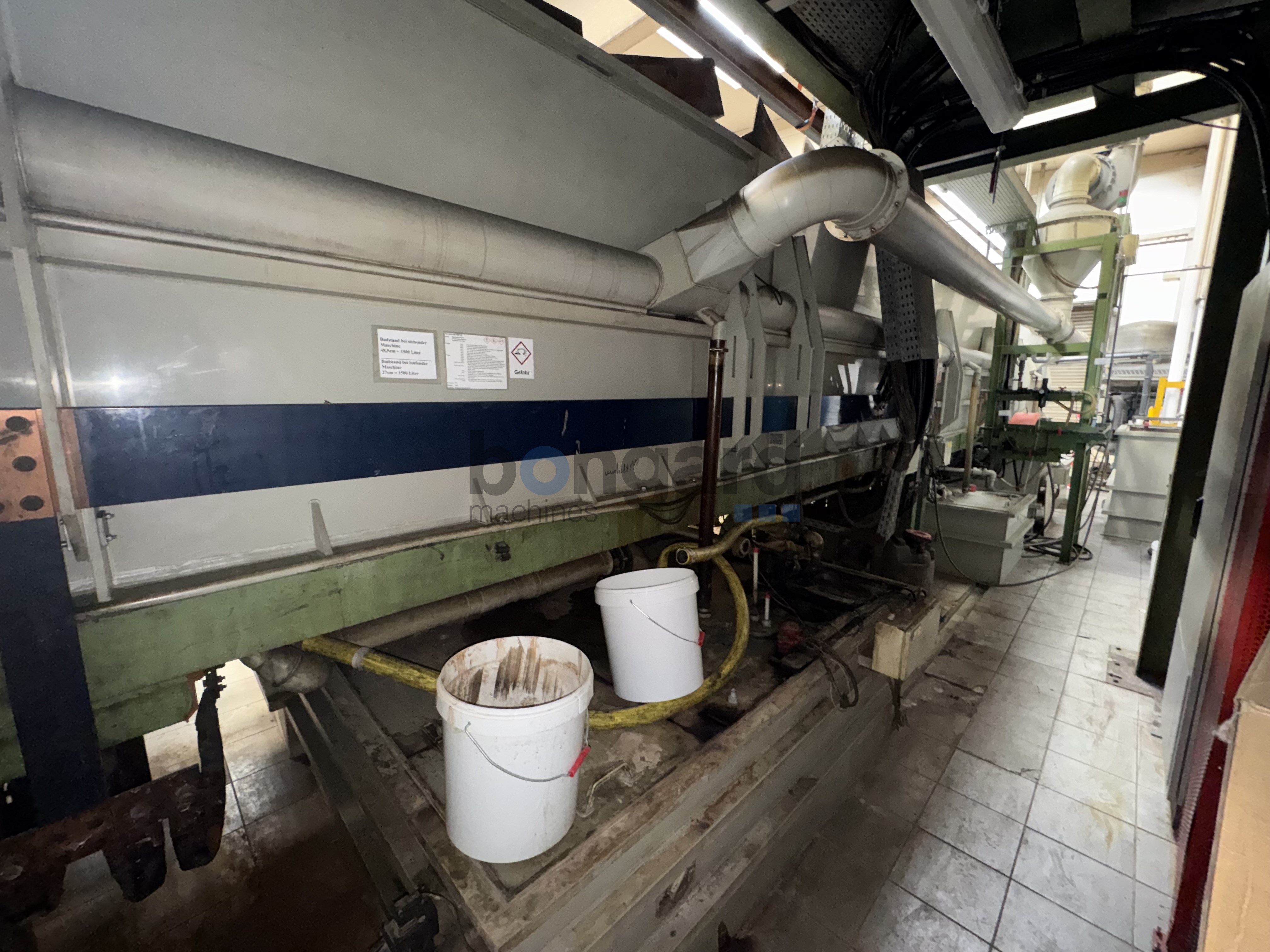

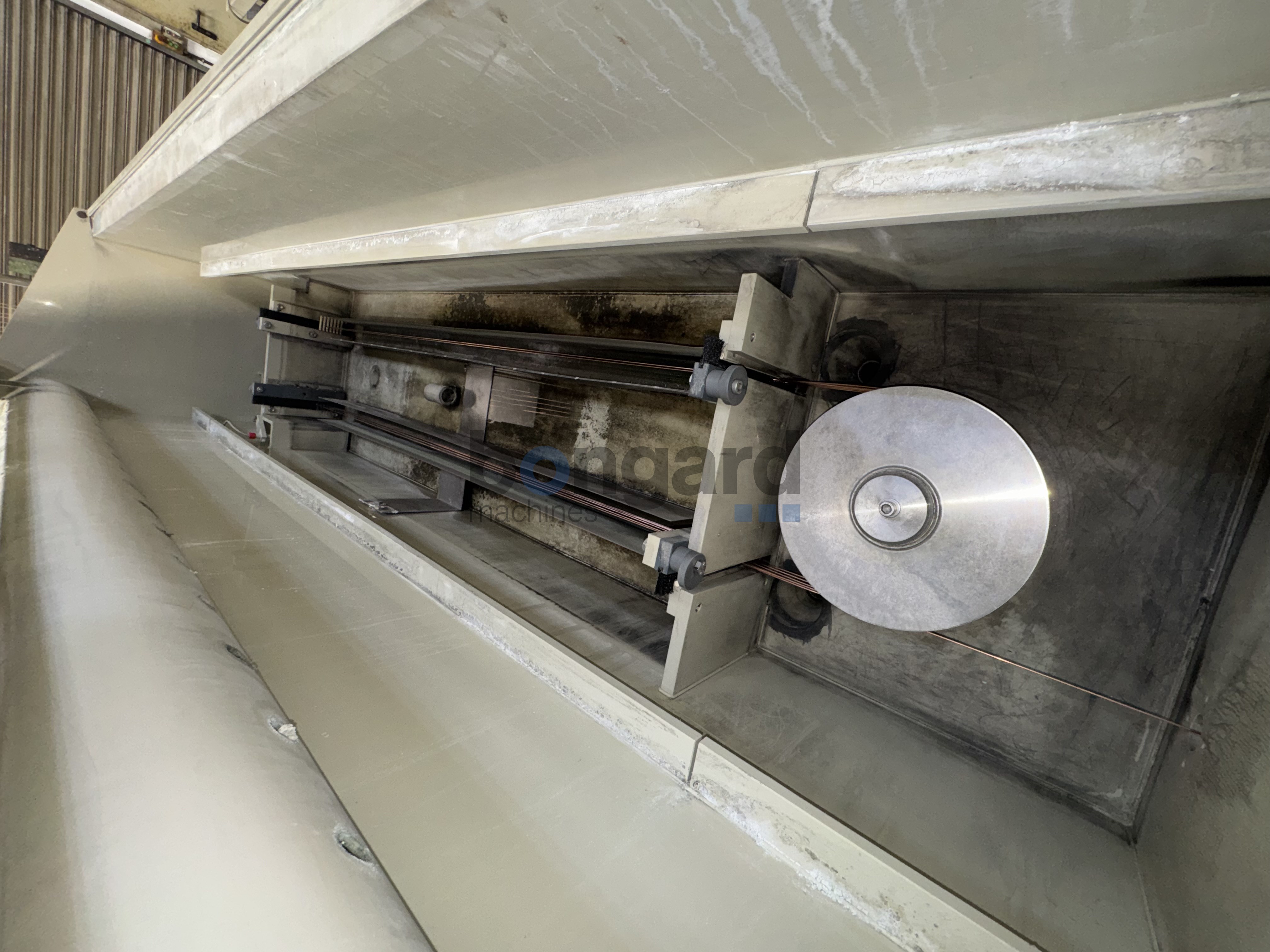

NIEHOFF VZ 300.2.2.3000 electrolytic tinning line

NIEHOFF VZ 300.2.2.3000 electrolytic tinning line NIEHOFF VZ 300.2.2.3000 electrolytic tinning line NIEHOFF VZ 300.2.2.3000 electrolytic tinning line NIEHOFF VZ 300.2.2.3000 electrolytic tinning line NIEHOFF VZ 300.2.2.3000 electrolytic tinning line NIEHOFF VZ 300.2.2.3000 electrolytic tinning line NIEHOFF VZ 300.2.2.3000 electrolytic tinning line NIEHOFF VZ 300.2.2.3000 electrolytic tinning line NIEHOFF VZ 300.2.2.3000 electrolytic tinning line NIEHOFF VZ 300.2.2.3000 electrolytic tinning line NIEHOFF VZ 300.2.2.3000 electrolytic tinning line NIEHOFF VZ 300.2.2.3000 electrolytic tinning line NIEHOFF VZ 300.2.2.3000 electrolytic tinning line NIEHOFF VZ 300.2.2.3000 electrolytic tinning line NIEHOFF VZ 300.2.2.3000 electrolytic tinning line NIEHOFF VZ 300.2.2.3000 electrolytic tinning line NIEHOFF VZ 300.2.2.3000 electrolytic tinning line NIEHOFF VZ 300.2.2.3000 electrolytic tinning line NIEHOFF VZ 300.2.2.3000 electrolytic tinning line NIEHOFF VZ 300.2.2.3000 electrolytic tinning line NIEHOFF VZ 300.2.2.3000 electrolytic tinning line

informations de base

  • Nummer: 13750
  • contrôle: Siemens S-5

détails techniques

  • matériel travaillé jusqu'à présent: Cu
  • approprié pour: production of tinned Cu wire
  • nombre de fils: 1
  • état technique: installed, production stopped, evaporator ist not scope of supply
  • Ø fil min: 1 mm
  • Ø fil max: 2,6 mm
  • courant d étamage: 2000/3000 A
  • courant de degraissage: 150 A
  • stratifié d'étain: 1,5-20 µm
  • vitesse: 200/400 mm/min
  • puissance connectée totale: 280 kVA
  • tension de service: 380 V
  • fréquence: 50 Hz
  • armoire électrique: disponible
  • données supplémentaires:
    • Drive power Degreasing:
    • Tinning: 5.5 kW
    • Degreasing: 2.2 kW

    • Submersible pump degreasing/decapping:
    • Power: 1.1 kW
    • Delivery rate: 9 m³/h
    • Delivery head: 12 WS

    • Submersible pump cascade 1 after degreasing/tinning
    • Power: 1.1 kW
    • Delivery rate: 9 m³/h
    • Delivery head: 12 WS

    • Submersible pump cascade 23 after degreasing/tinning
    • Power: 0.37 kW
    • Delivery rate: 3 m³/h
    • Delivery head: 5.3 WS

    • Submersible pump for tinning:
    • Power: 2.2 kW
    • Delivery rate: 14 m³/h
    • Delivery head: 13 WS

    • Heater output:
    • Degreasing: 2 x 4 kW
    • Tinning: 4 x 4 kW

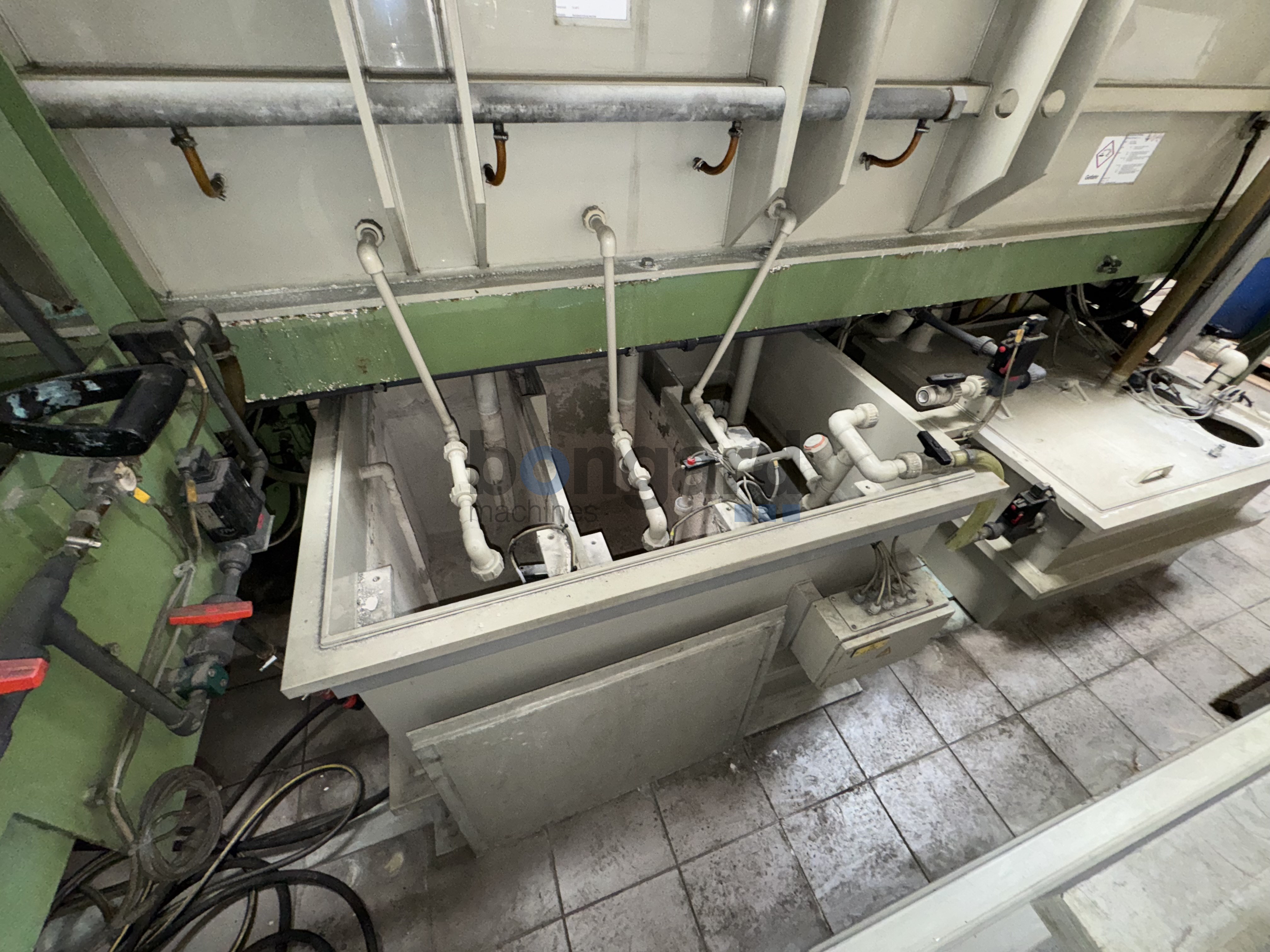

    • Bath volume:
    • Degreasing bath: approx. 400 litres
    • 5 compartment cascade rinsing after degreasing / tinning
    • Cascade 1: approx. 176 litres
    • Cascade 2: approx. 190 litres
    • Cascade 3: approx. 204 litres
    • Decapsulation: approx. 400 litres

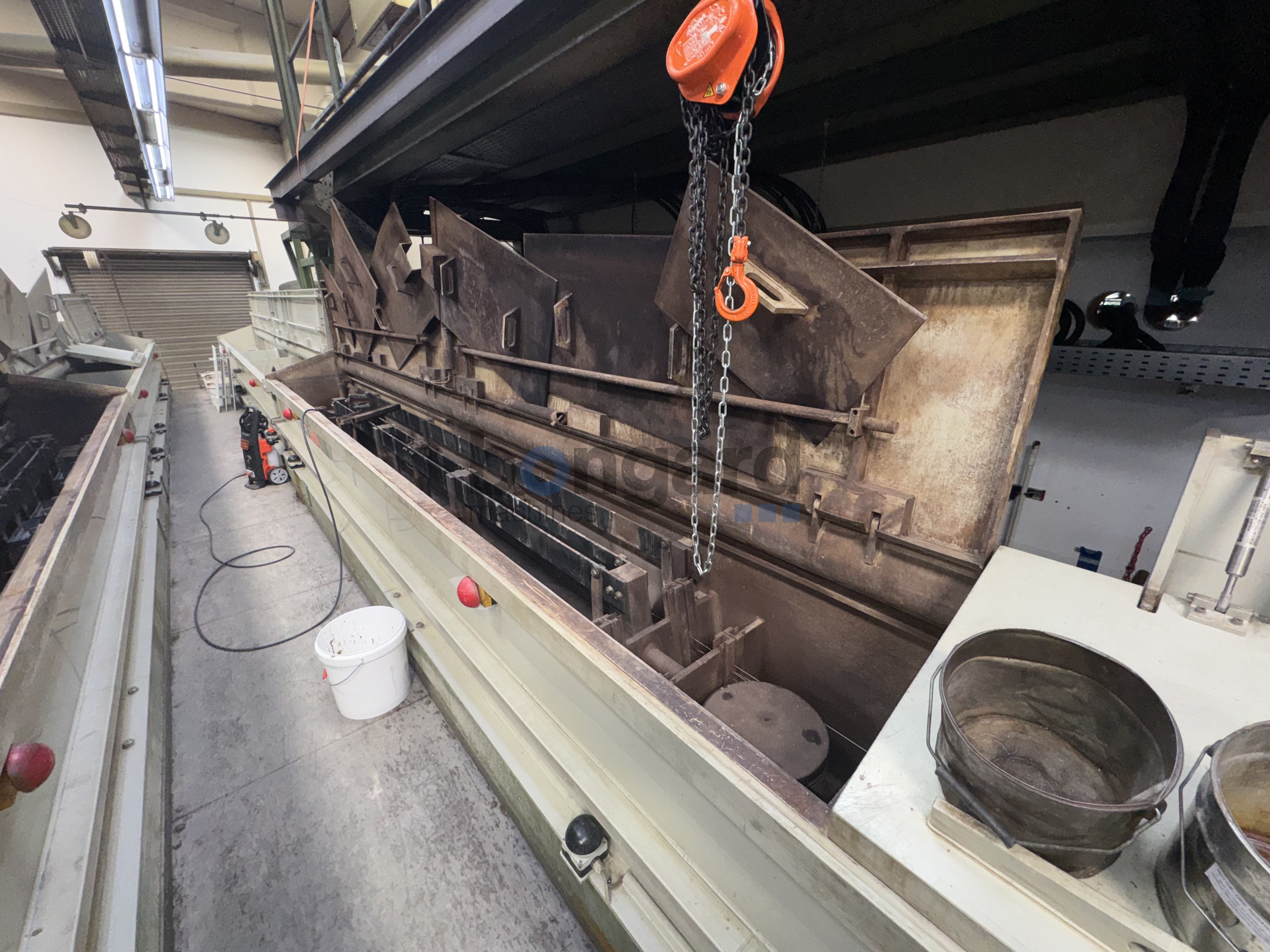

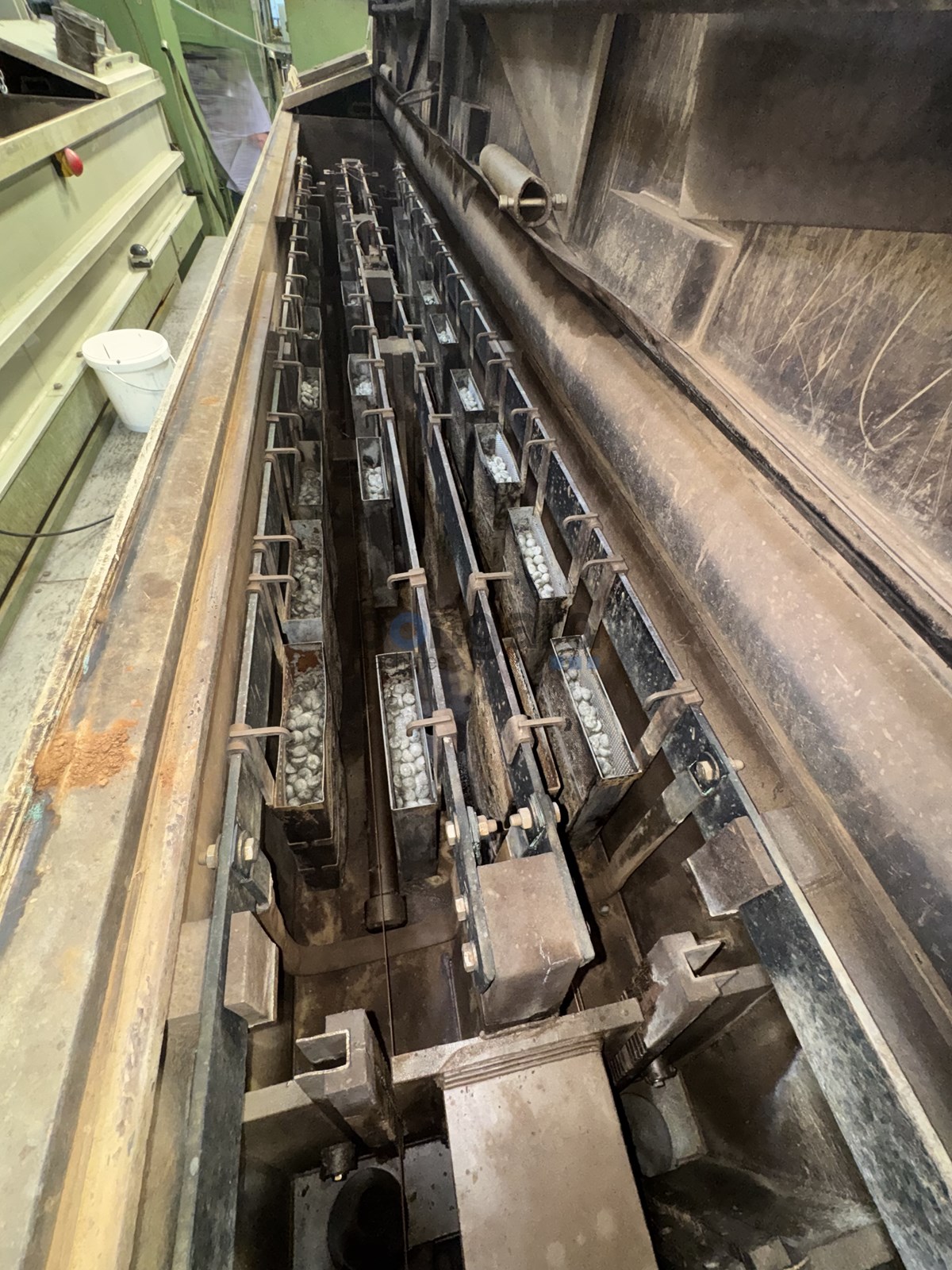

    • tinning bath: approx. 1600 litres

    • Rinsing water requirement: 2 x 20 40 litres / hour

    • Cooling water requirement at 3000 amps: 1200 litres / hour

se compose de

NIEHOFF Régulateur de tension

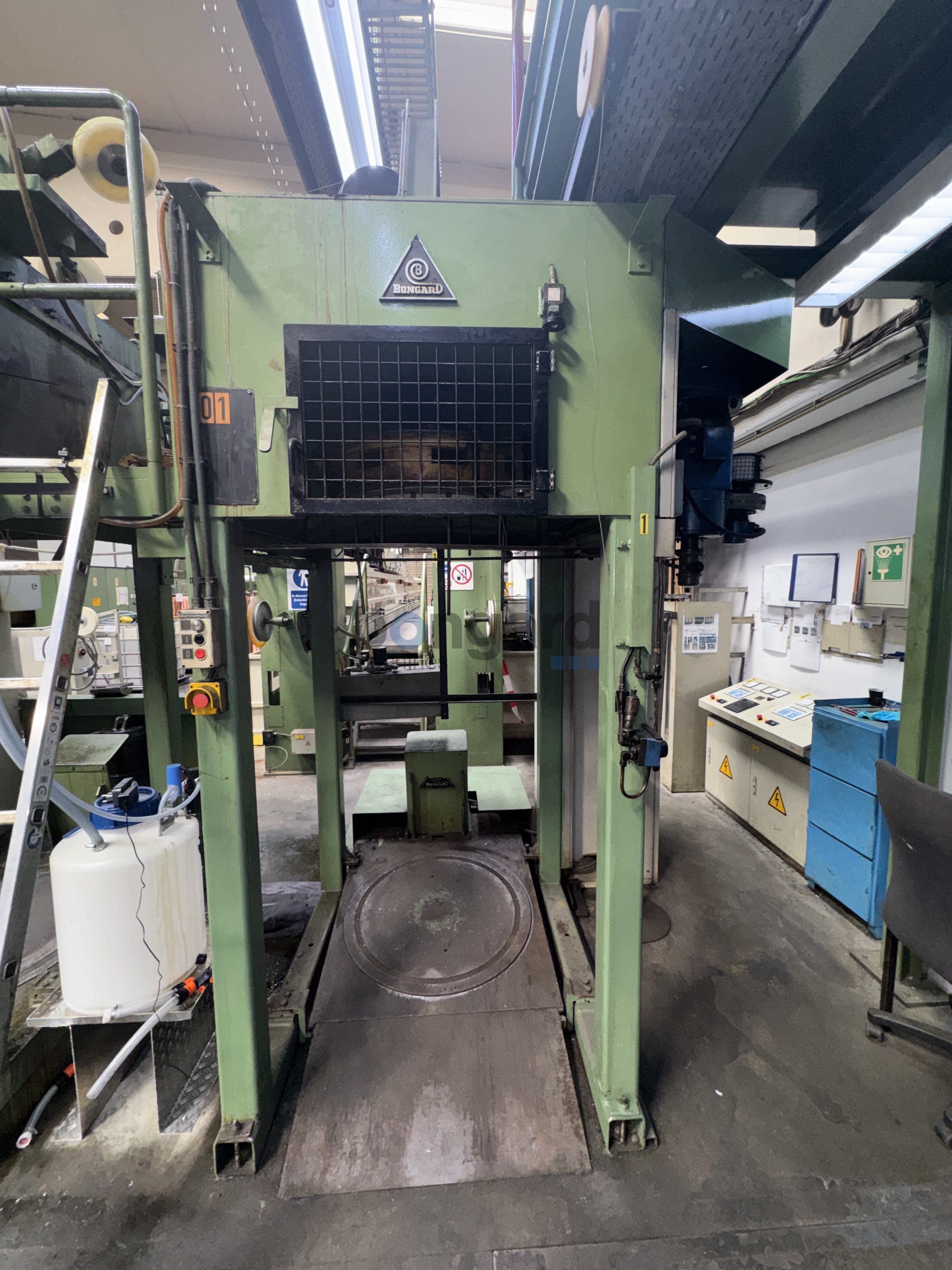

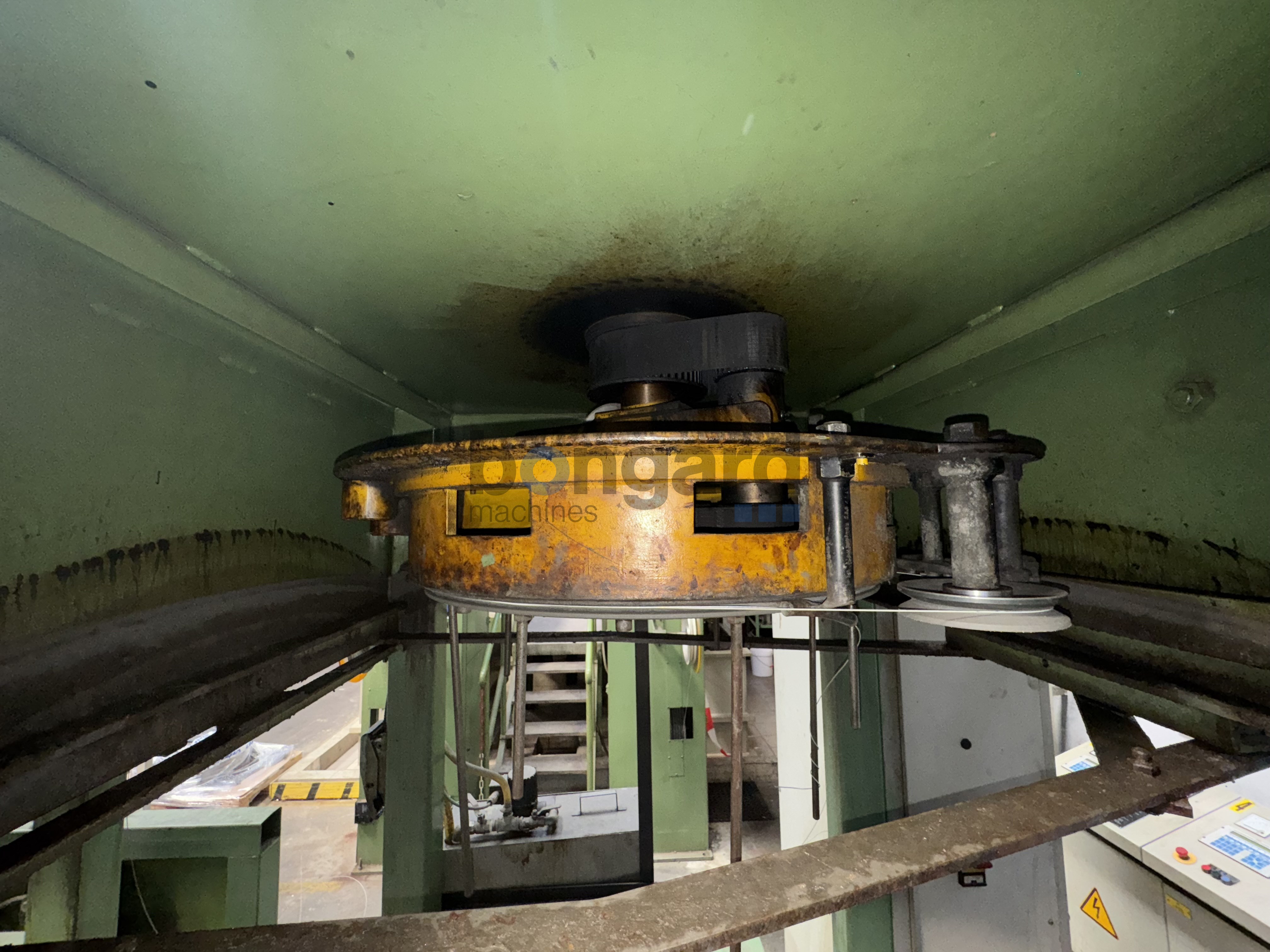

    BONGARD enrouleur statique
    • matériel travaillé jusqu'à présent: fil Cu
    • Ø cabestan d'enroulement: 600 mm

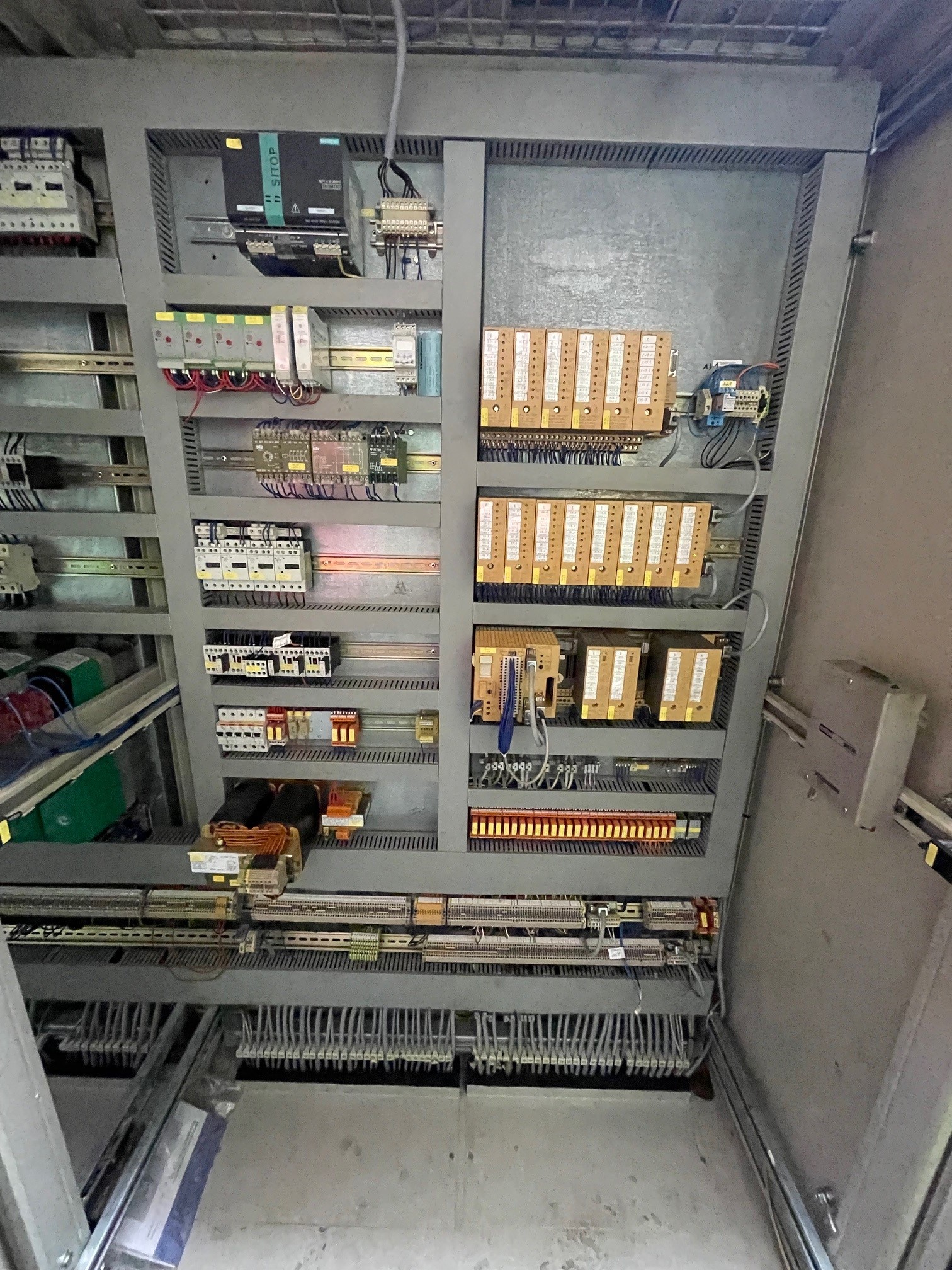

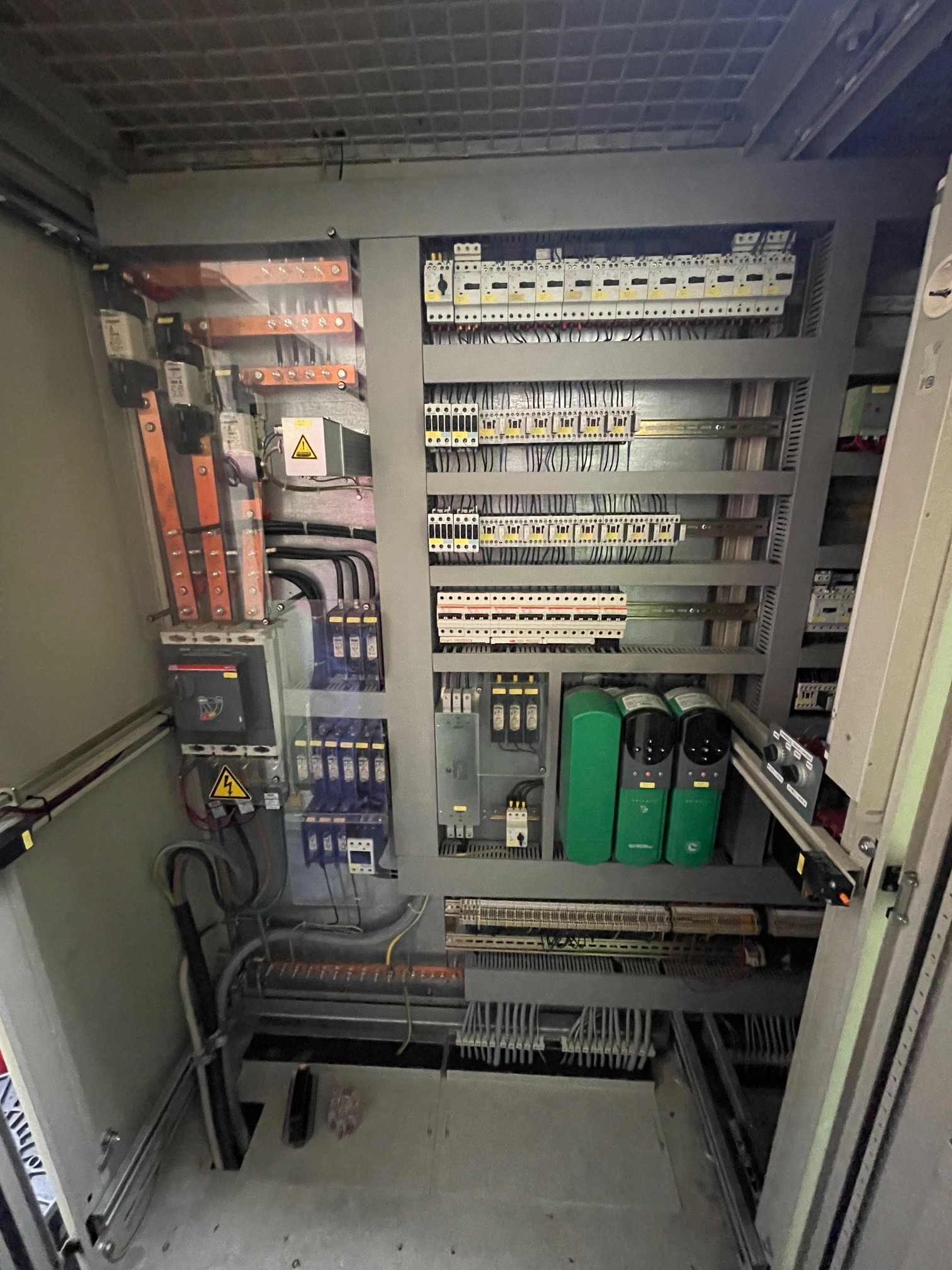

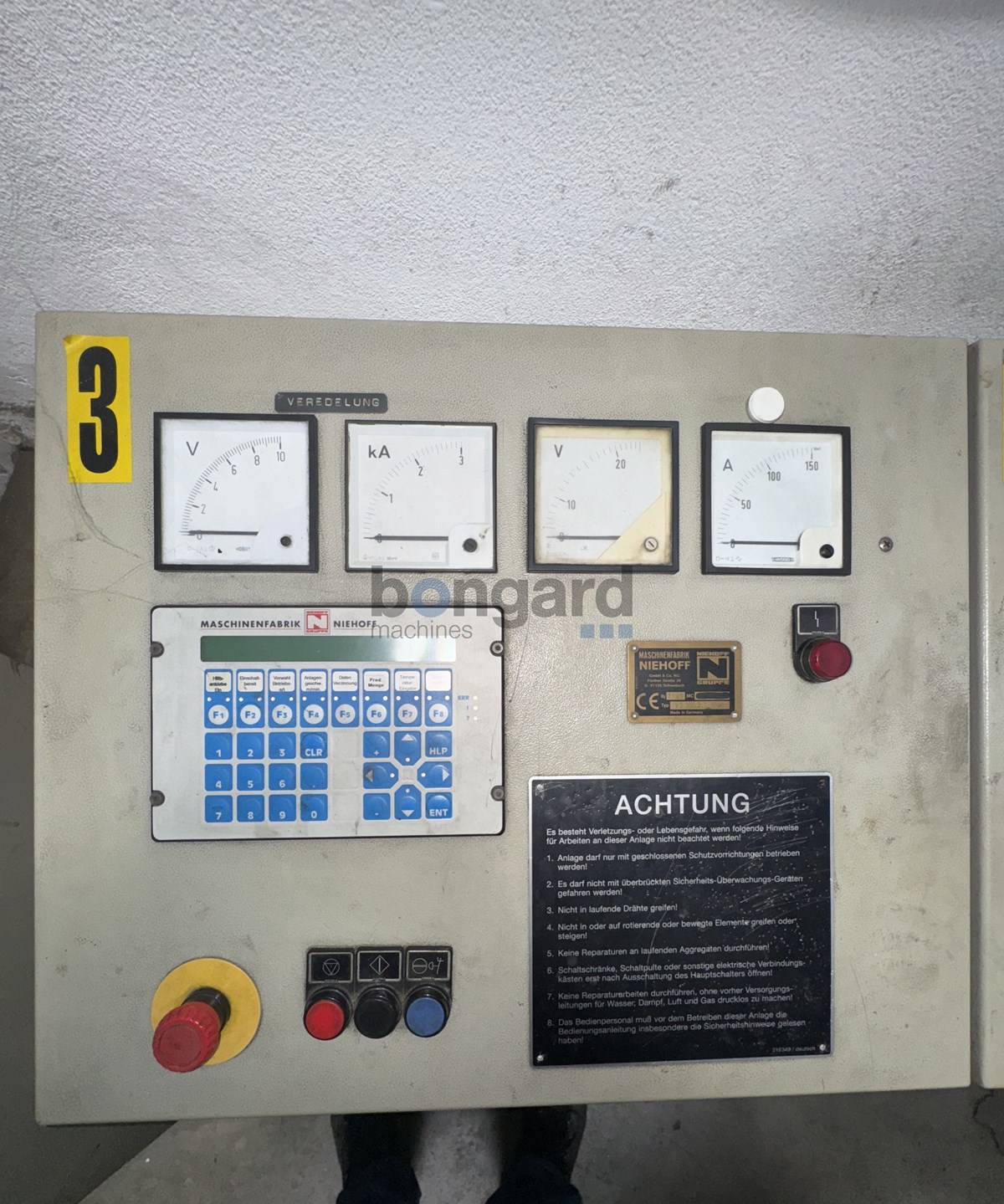

    electrical cabinet tinning line

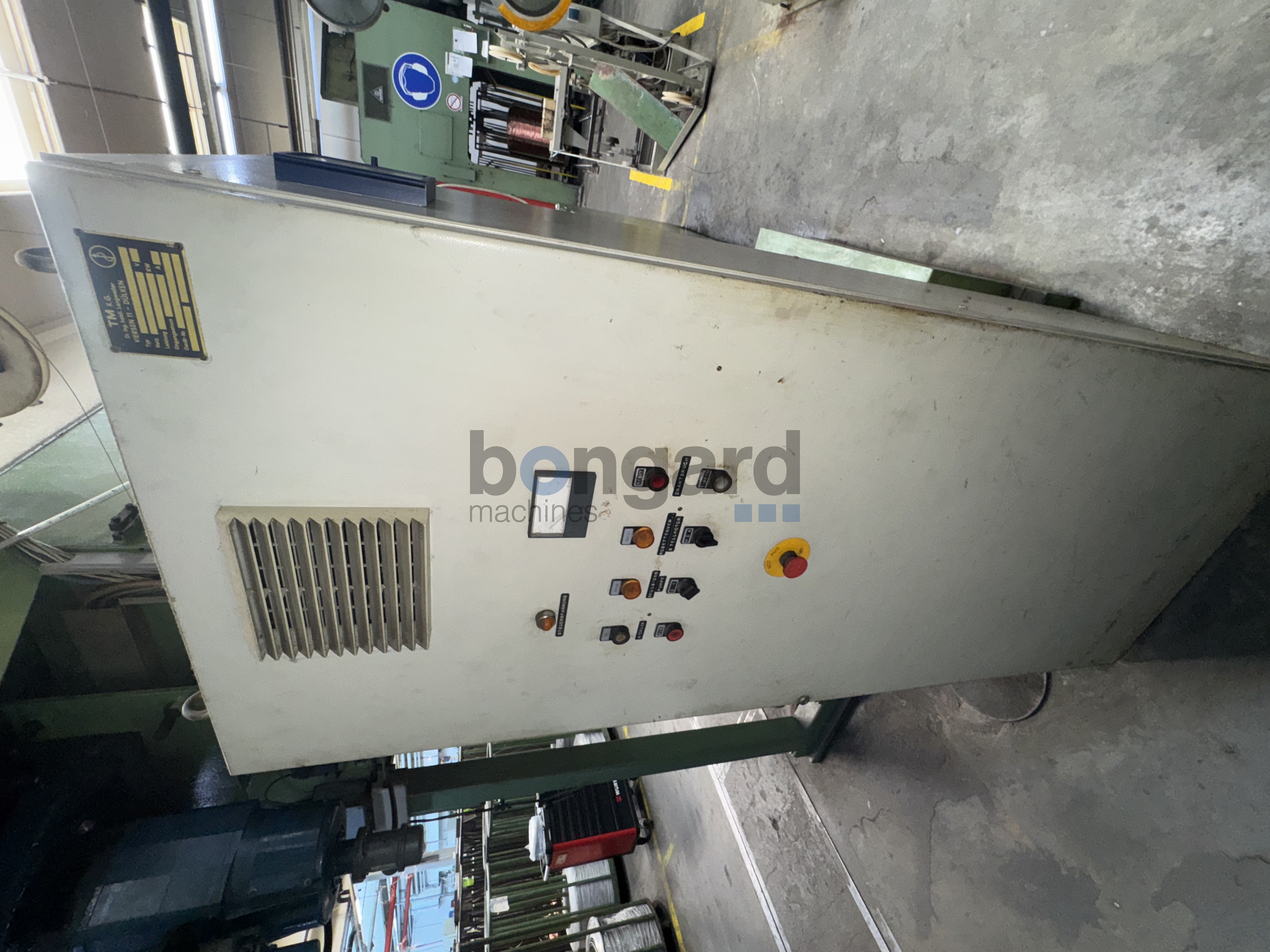

      electrical cabinet coiler
