NIEHOFF DSA4 rewinding line for braiding spools
informations de base
- Nummer: 14240
détails techniques
- matériel travaillé jusqu'à présent: CU bare and thinned (16x0,05 - 6x0,30 mm)
- approprié pour: Possible materials: CU, AL, Fe, stainless steel, textile
- no. de reception de bobine: 4
- Ø fil min: 0,05 mm
- Ø joue max: 80 mm
- largeur totale max: 100 mm
- capacité bobine max: 3 kg
- résistance à la rupture: 270 N/mm²
- axe de bobinage: horizontal
- changement de la bobine: automatique
- vitesse de rotation bobine: 7125 min⁻¹
- vitesse max: 600 m/min
- arrêt automatique en cas de rupture du fil et bobine pleine: oui
- trancanage: motorized
- mode d'entraînement: moteur CA
- puissance: 2,2 kW
- tension de service: 400 V
- fréquence: 50 Hz

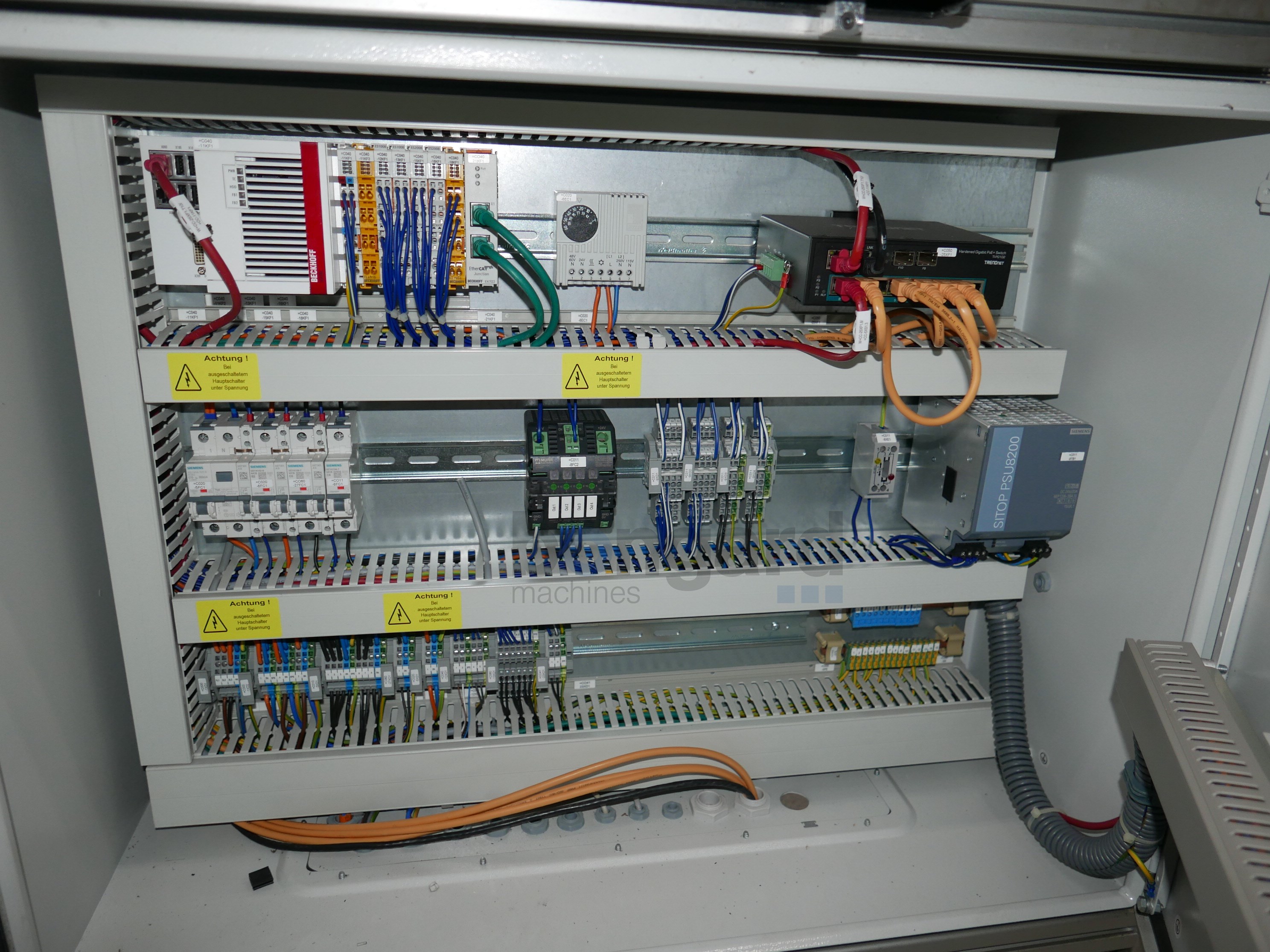

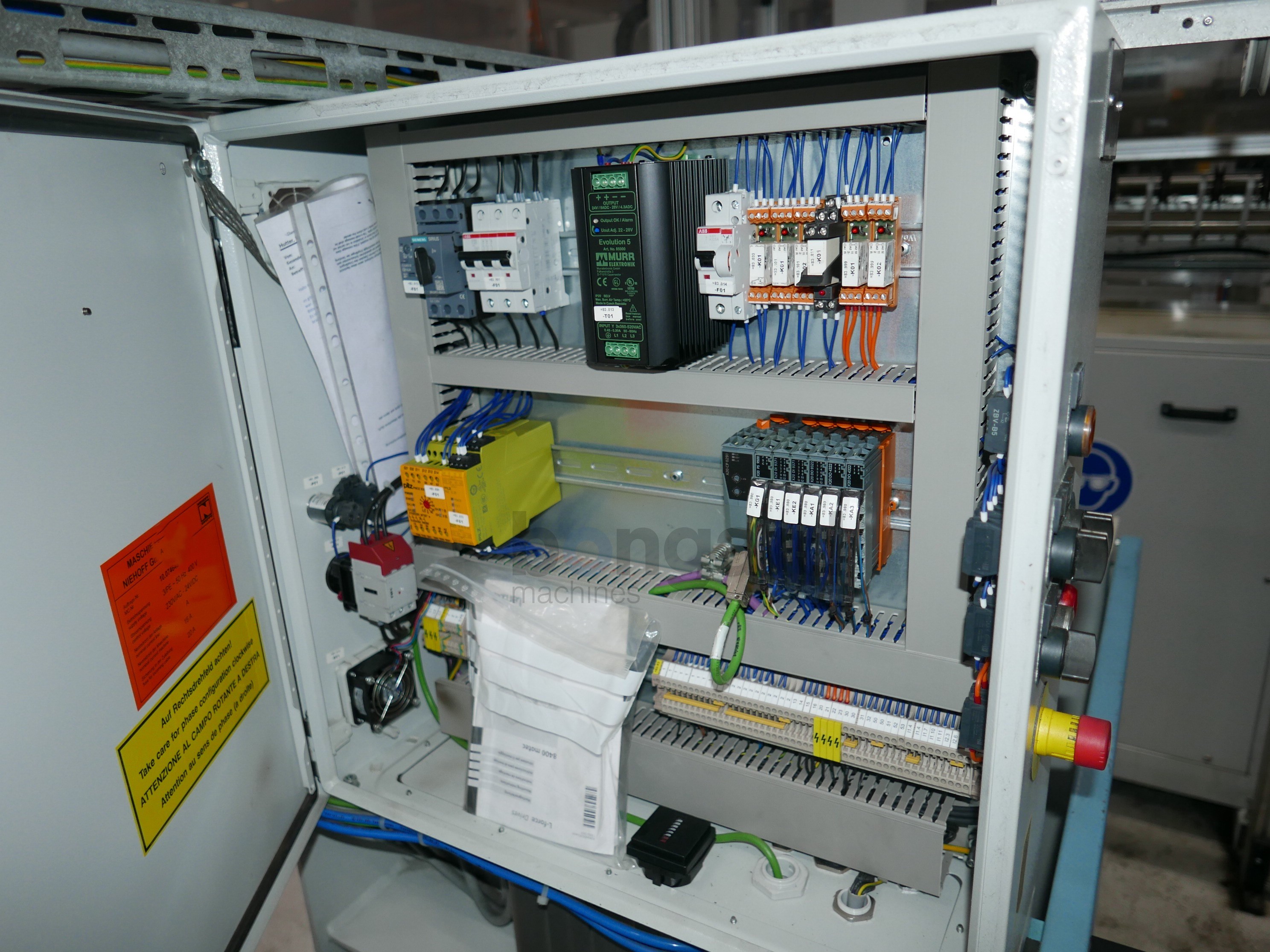

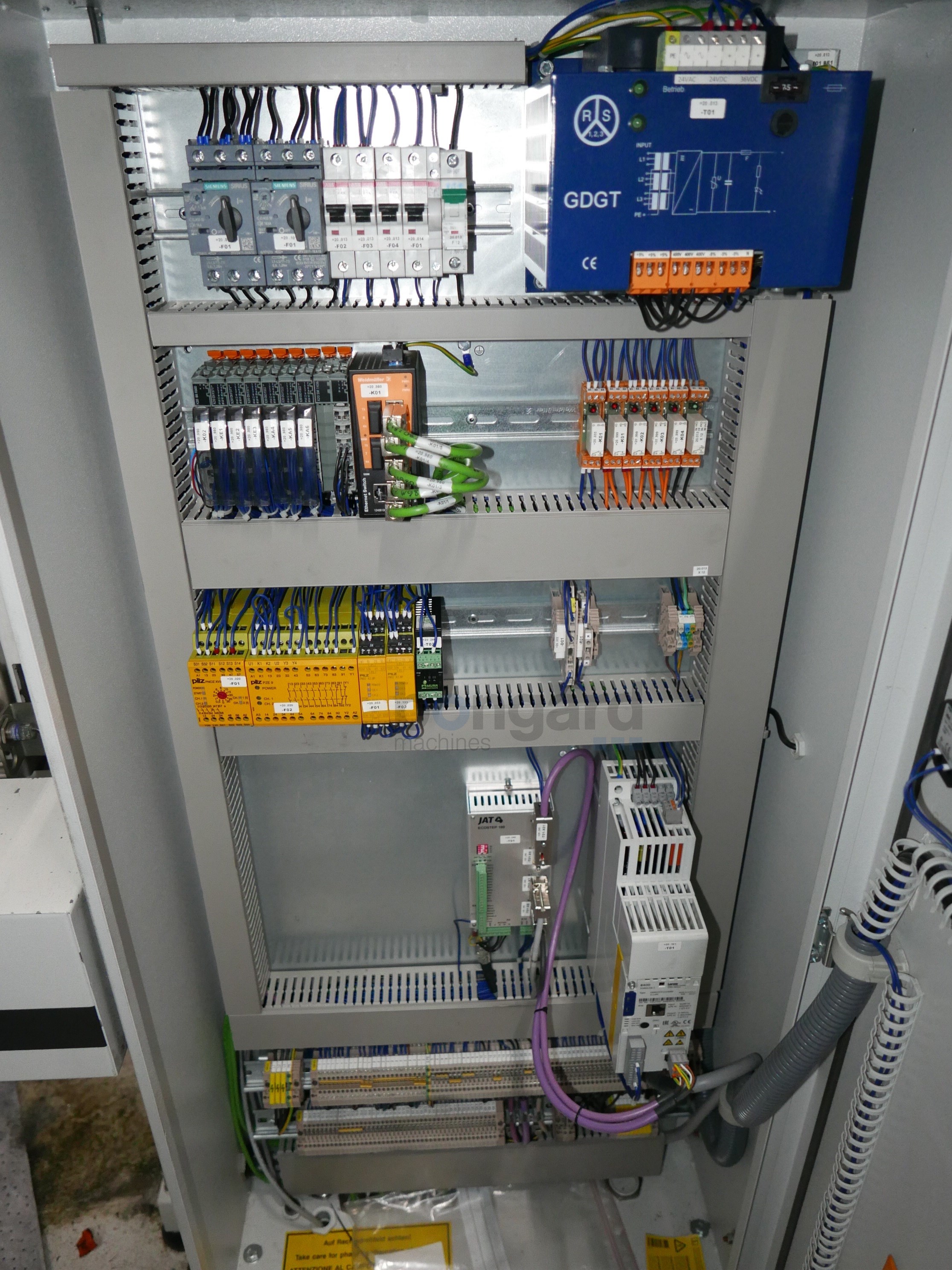

- armoire électrique: disponible
-
données supplémentaires:
Fully Automatic Niehoff Rewinding System for Braided Bobbins
The fully automatic Niehoff rewinding system for braided bobbins essentially consists of the following components:

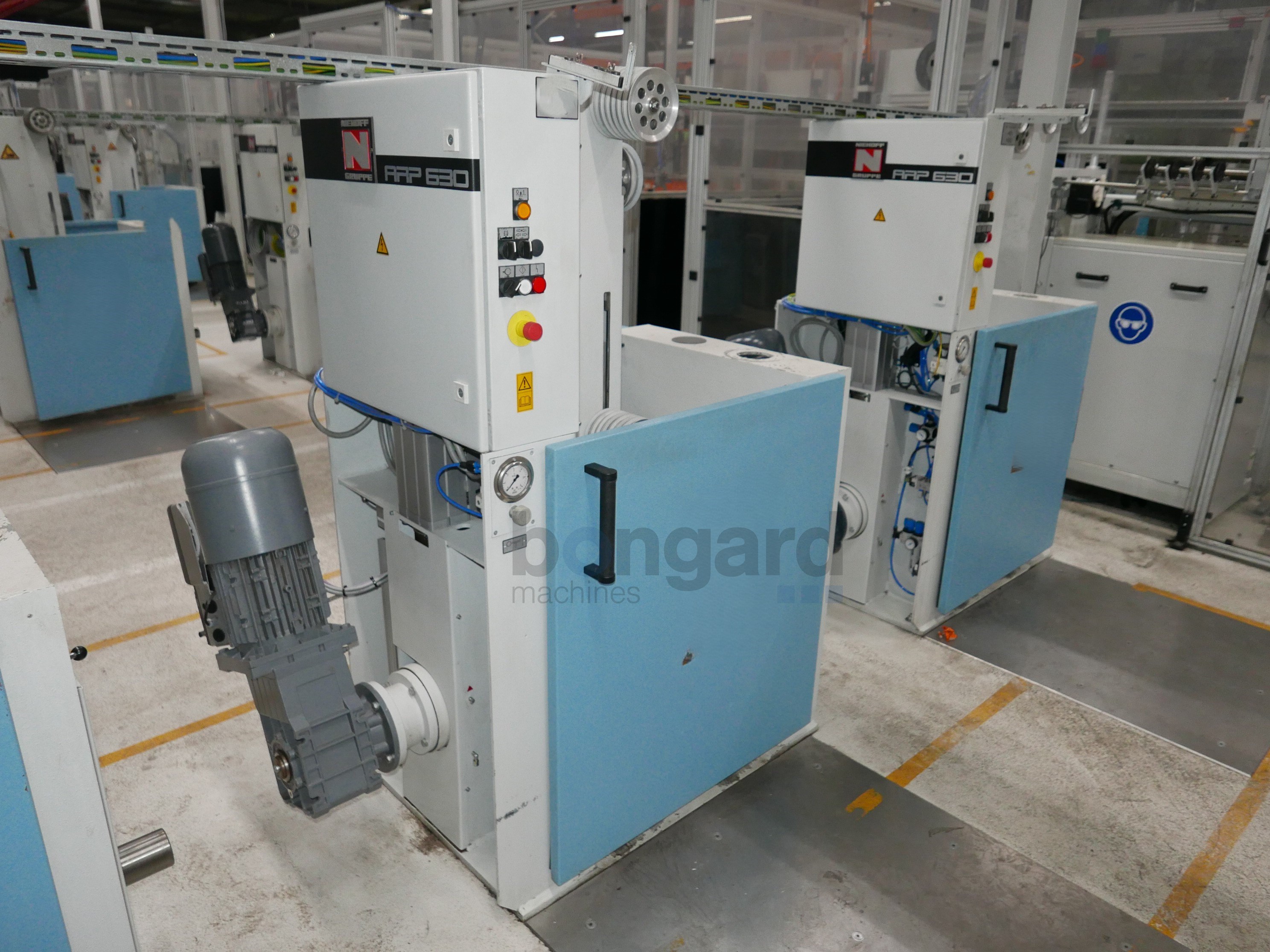

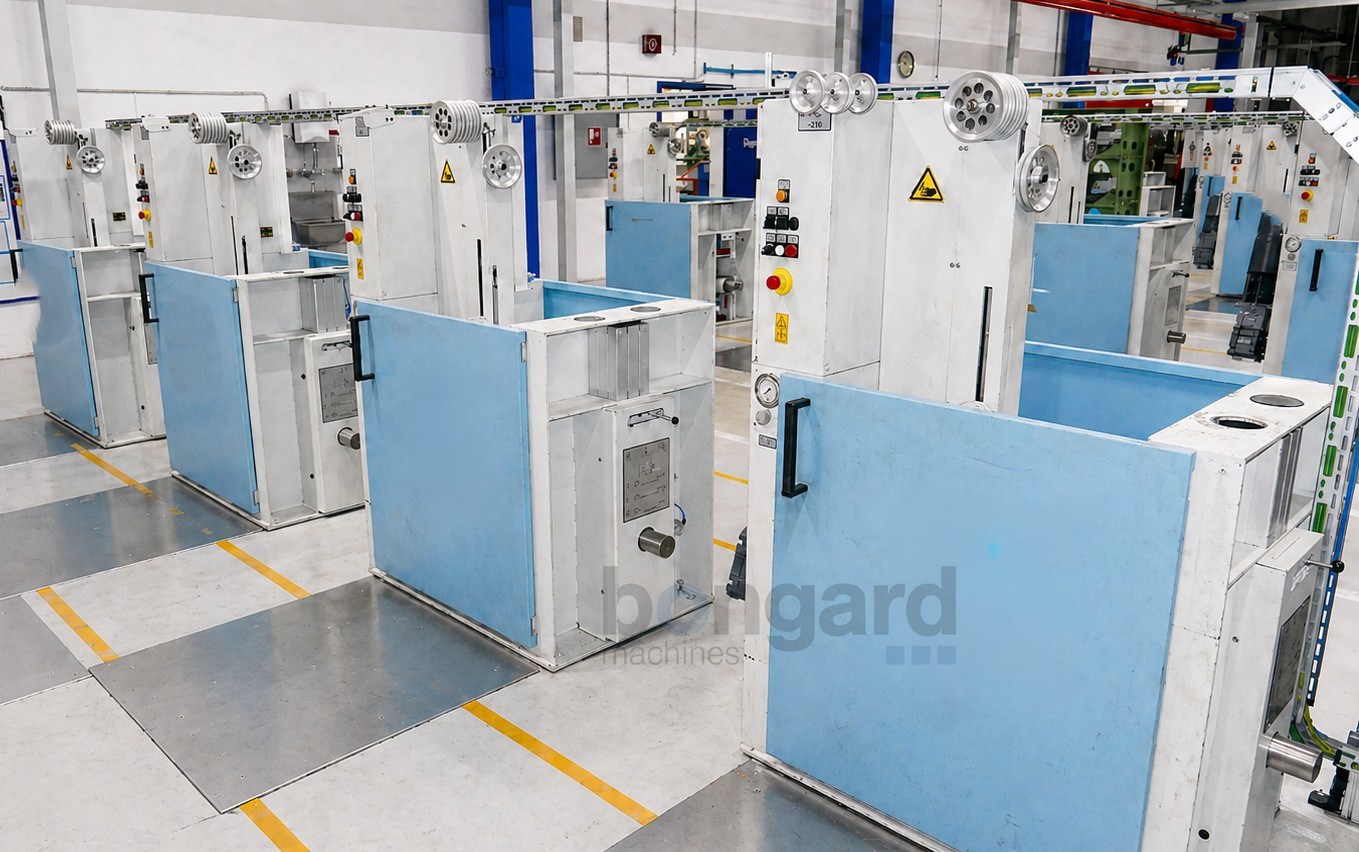

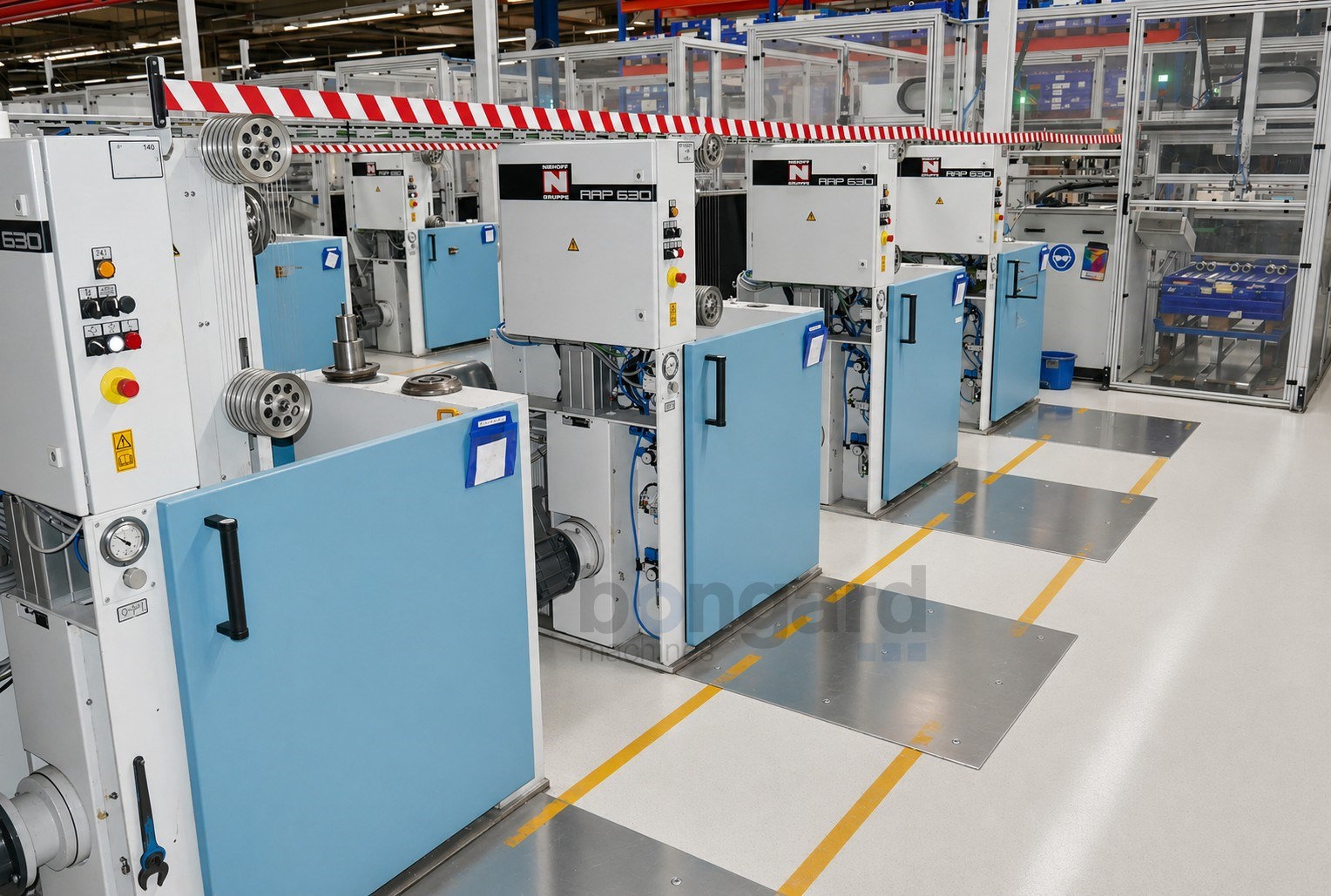

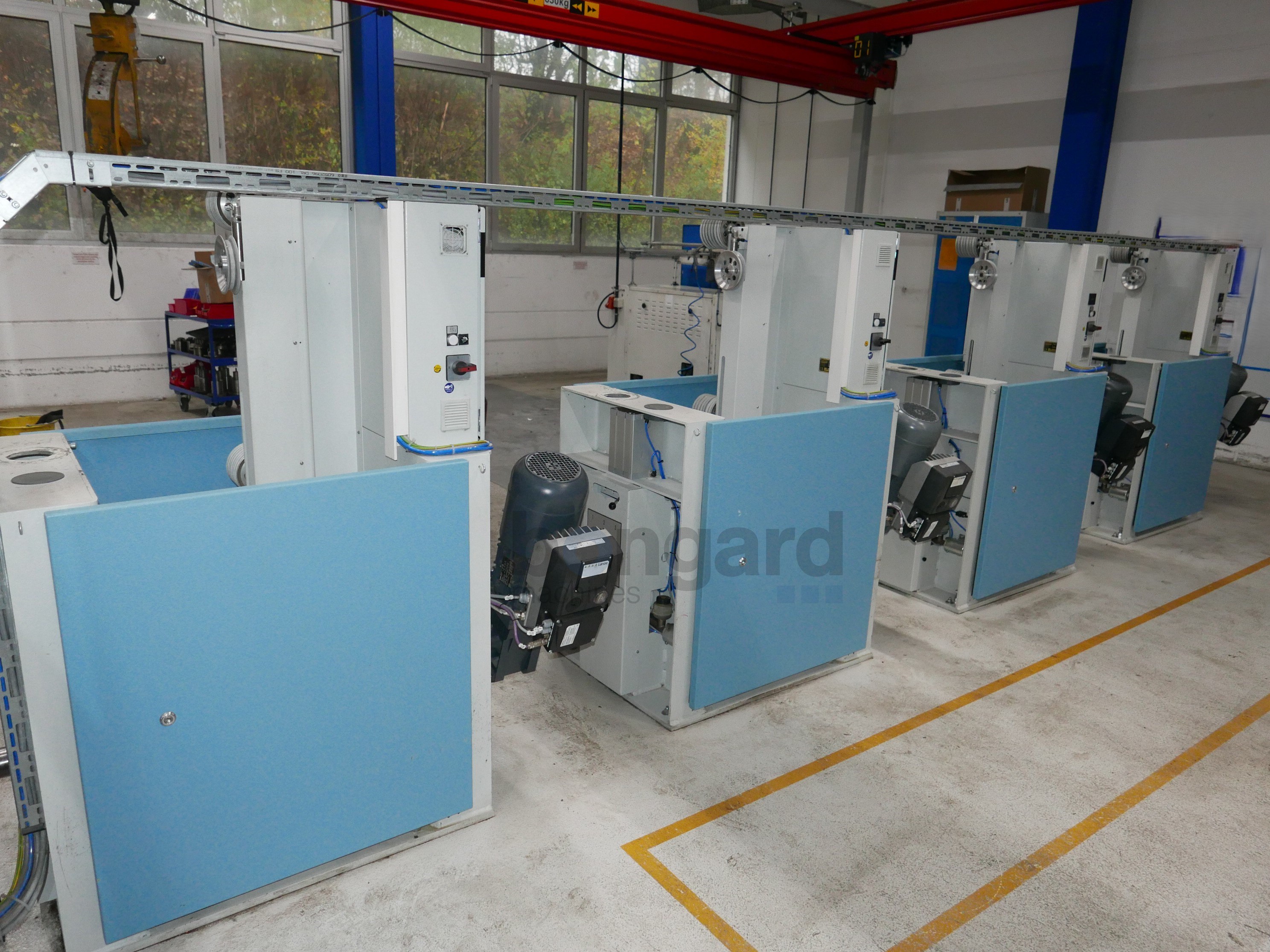

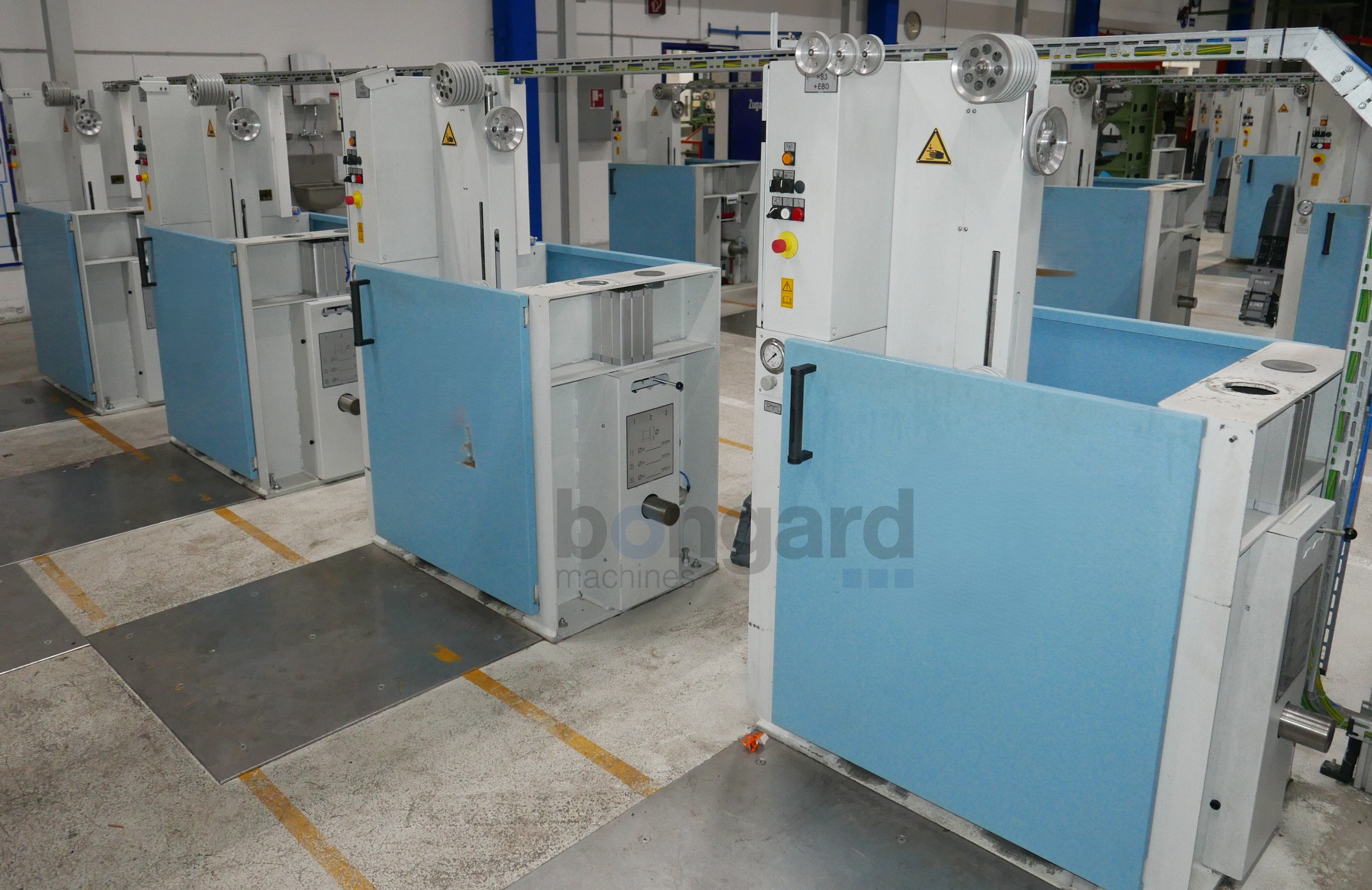

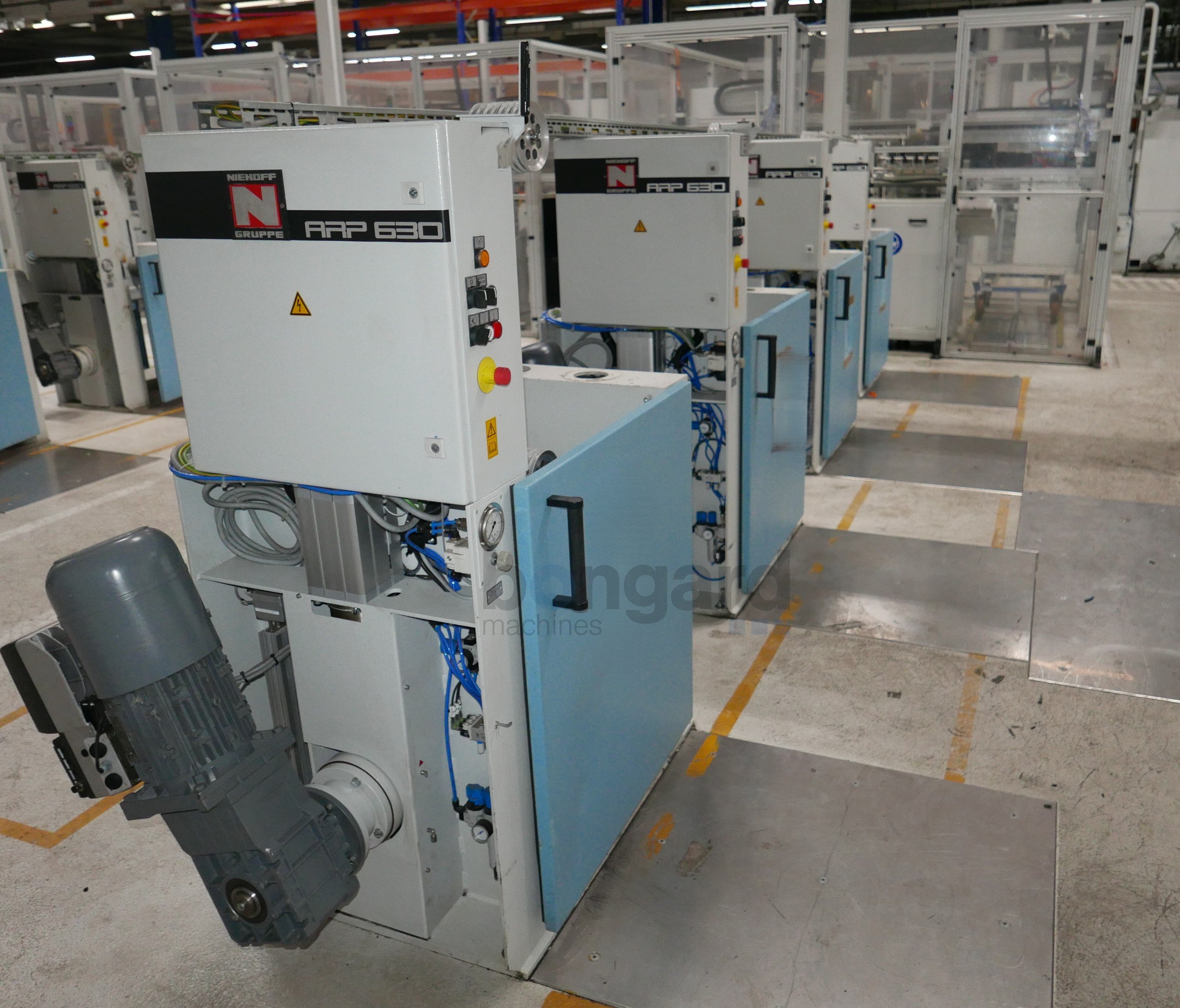

1. 4 x single spool pay off
o Manufacturer: Niehoff
o Type: ARP 630
o Year of manufacture: 2018

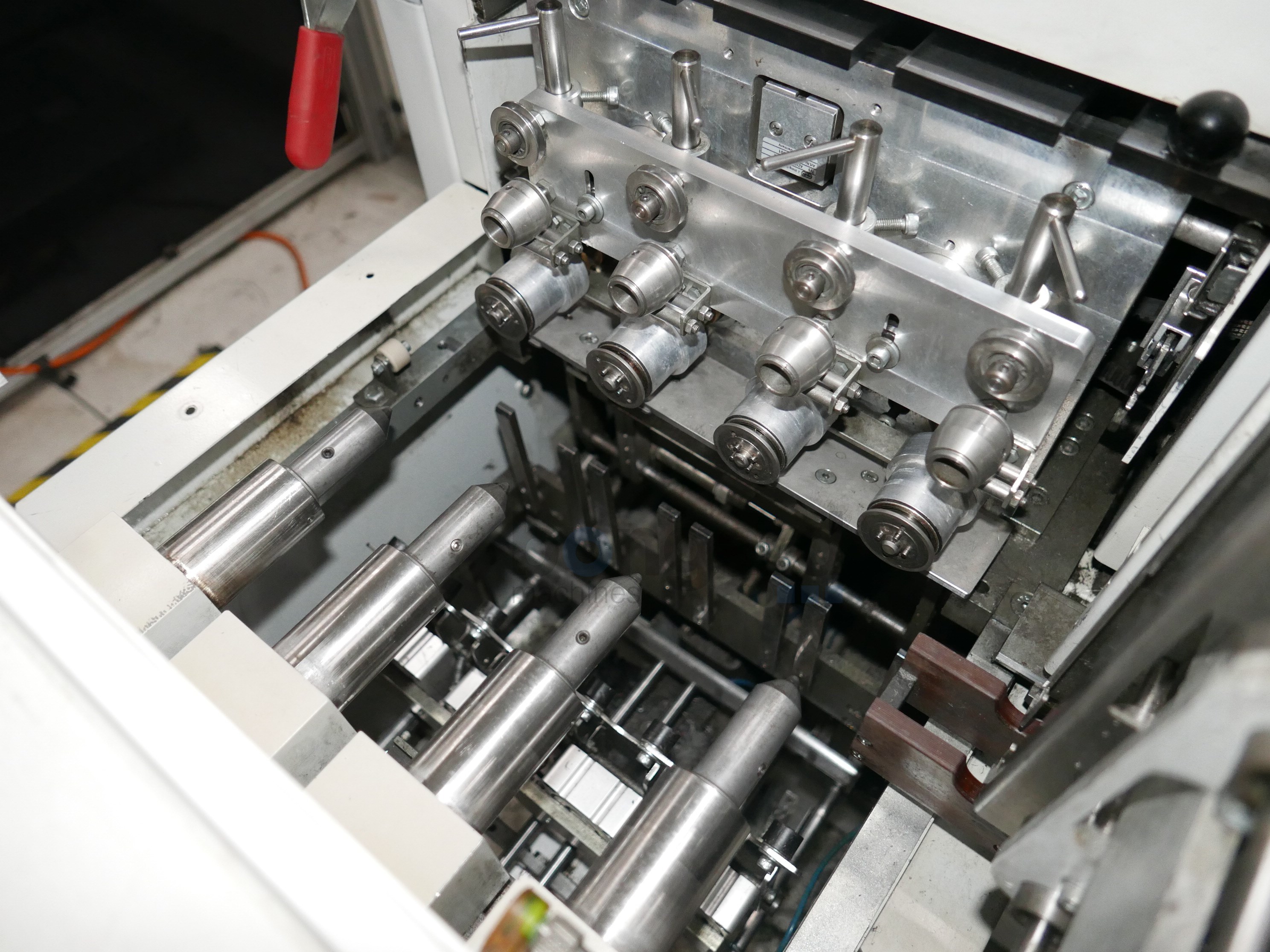

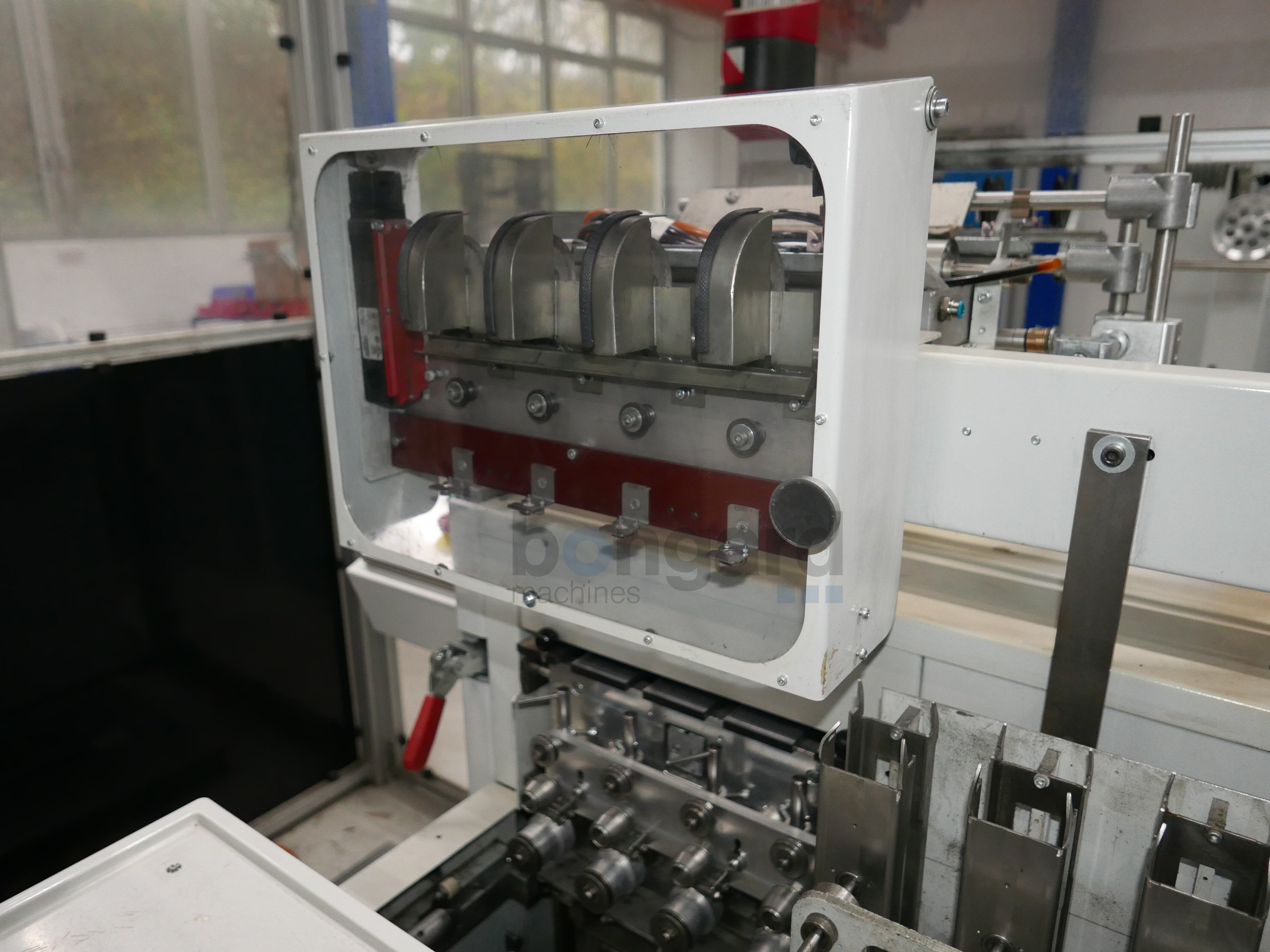

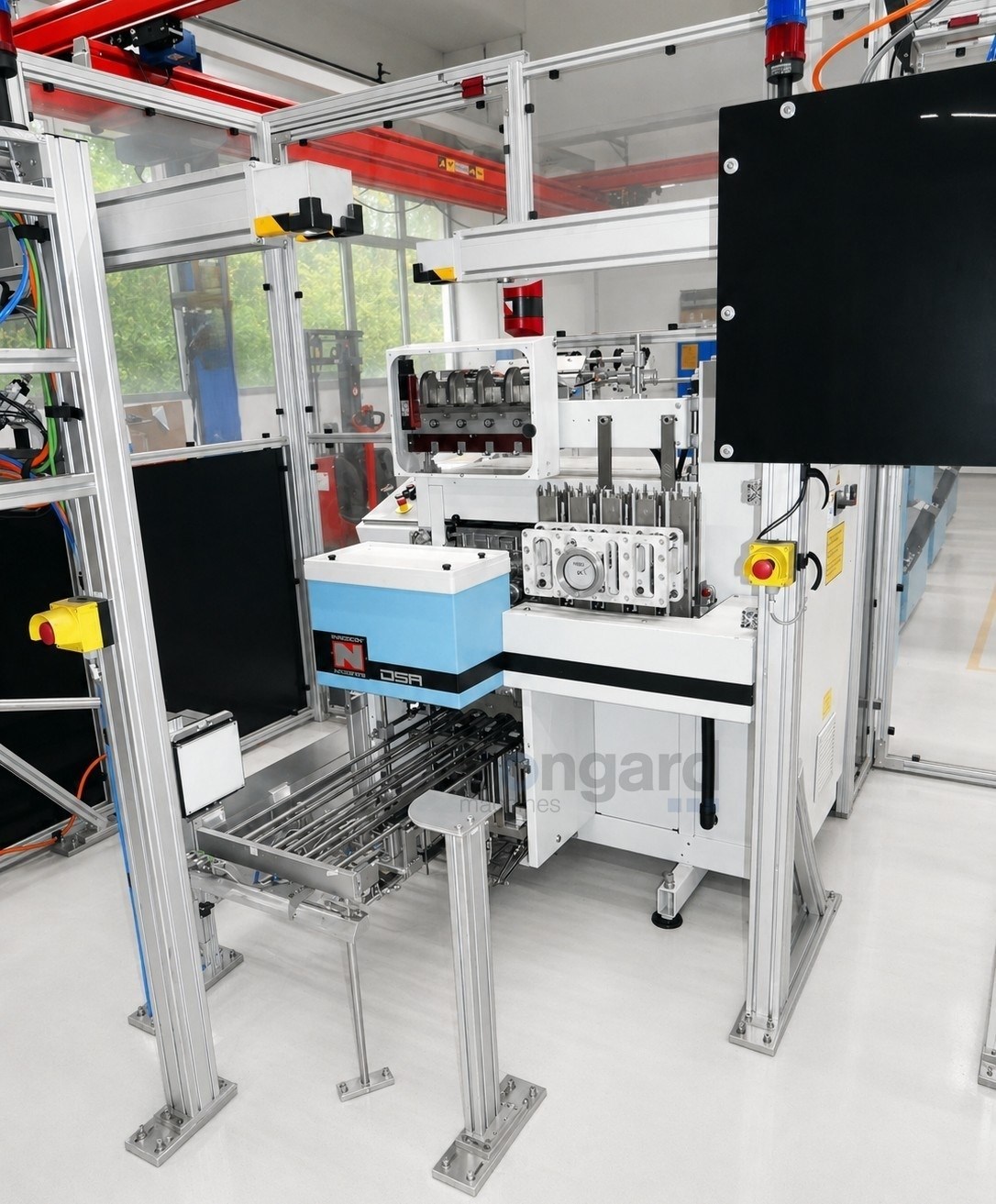

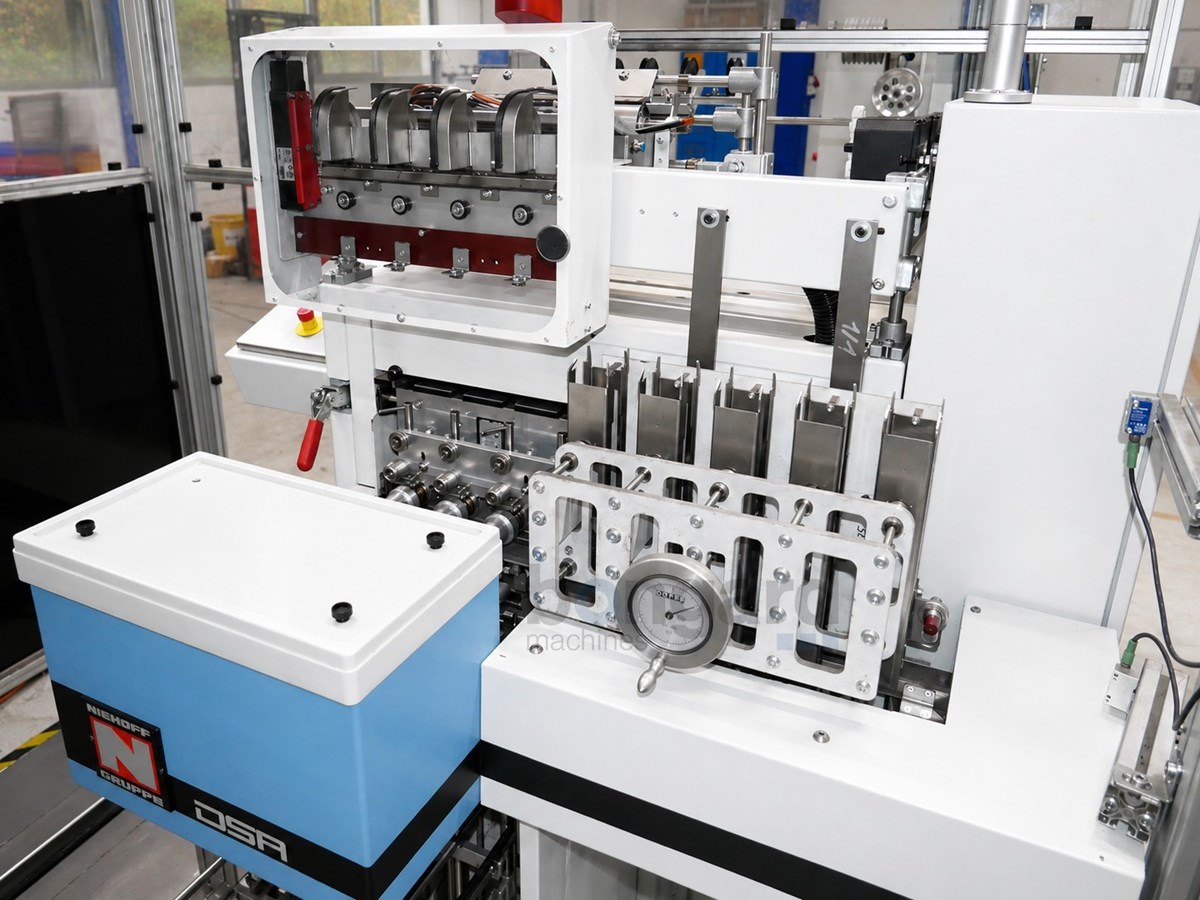

2. A fully automatic rewinding machine
o Manufacturer: Niehoff
o Type: DSA 4
o Year of manufacture: 2018
o Braid spool types: S2, S3, HSP, WSN01,02
o Consists of:wire guide, spool magazine, control cabinet, transport carriage for empty spools, spool tray, spool field, wire tensioning device, control panel, wire deflection

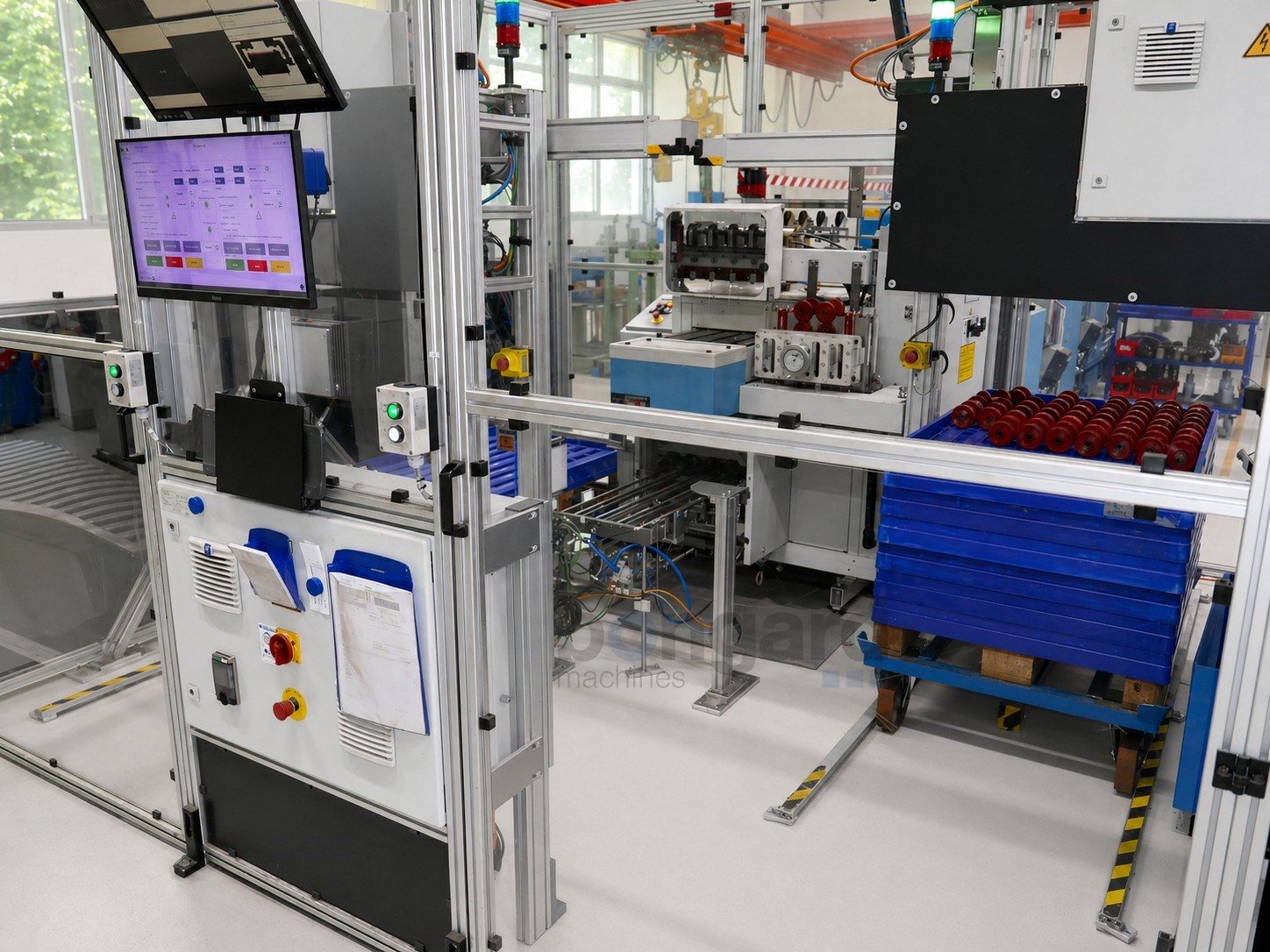

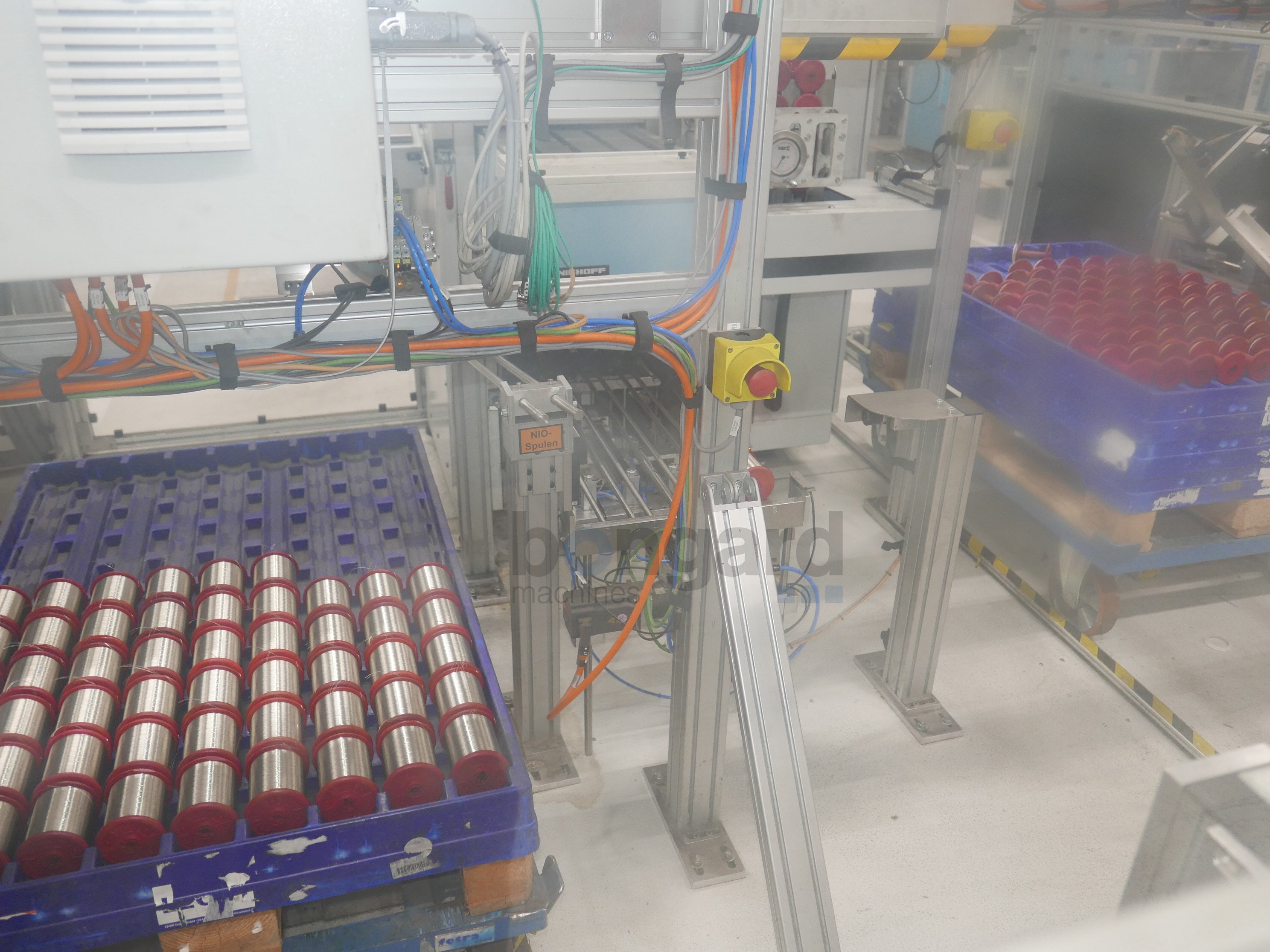

In addition, the system was equipped with an automation system from Wasotec / Hacoba Automation. This automation system includes:
• a handling system for loading empty spools
• a handling system for unloading full spools

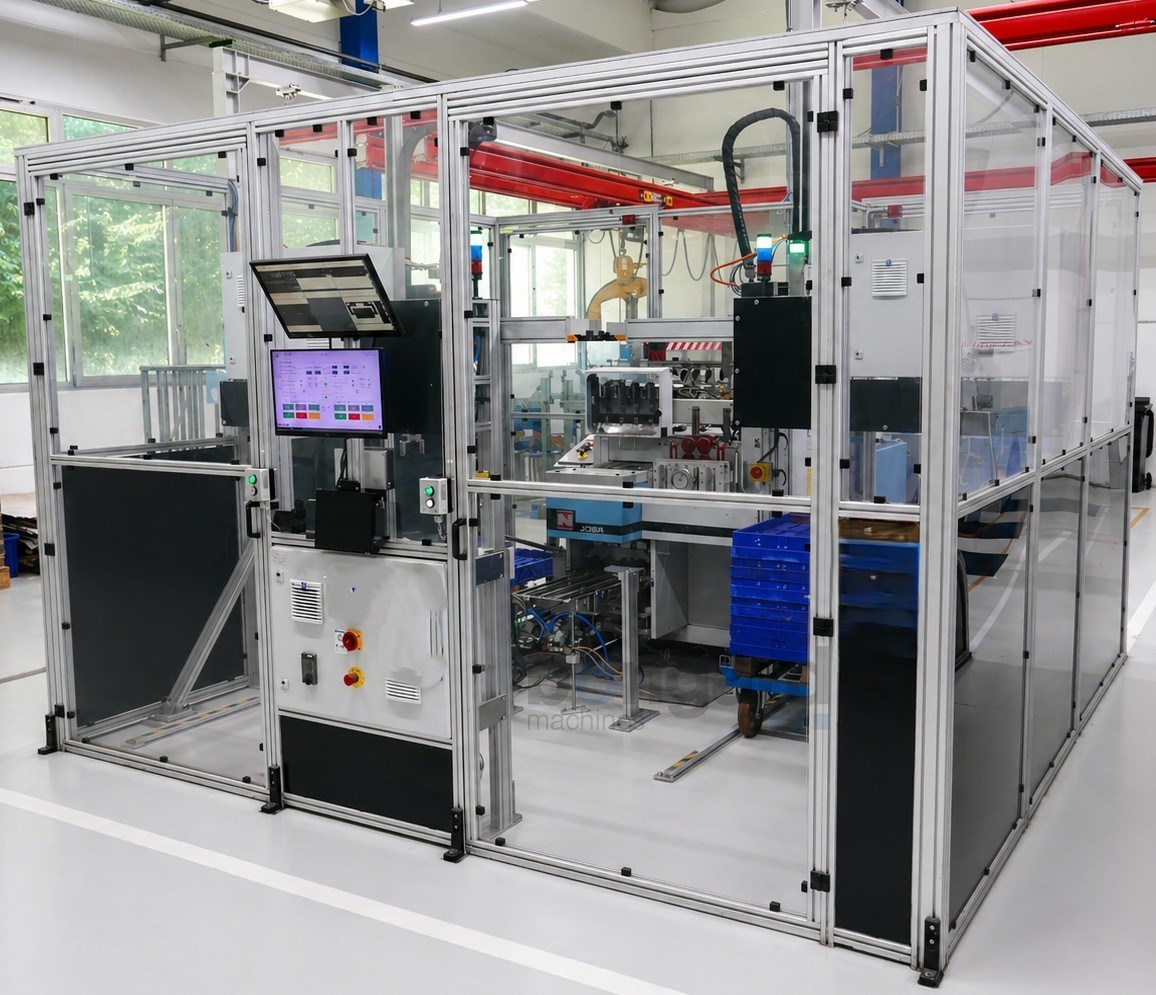

• a protective enclosure made of aluminium profiles with acrylic inserts
• a four-door version of the protective enclosure.
The automation system was installed to fully automate the Niehoff system. A handling system handles the insertion of empty spools and the removal of full spools. This enables automatic production operation with this system.
If necessary, the system can also be operated without the automation system, as the automation system has its own separate control unit.
se compose de
NIEHOFF ARP630.2.6.P.TE dévidoir
NIEHOFF ARP630.2.6.P.TE dévidoir
NIEHOFF ARP630.2.6.P.TE dévidoir
NIEHOFF ARP630.2.6.P.TE dévidoir
