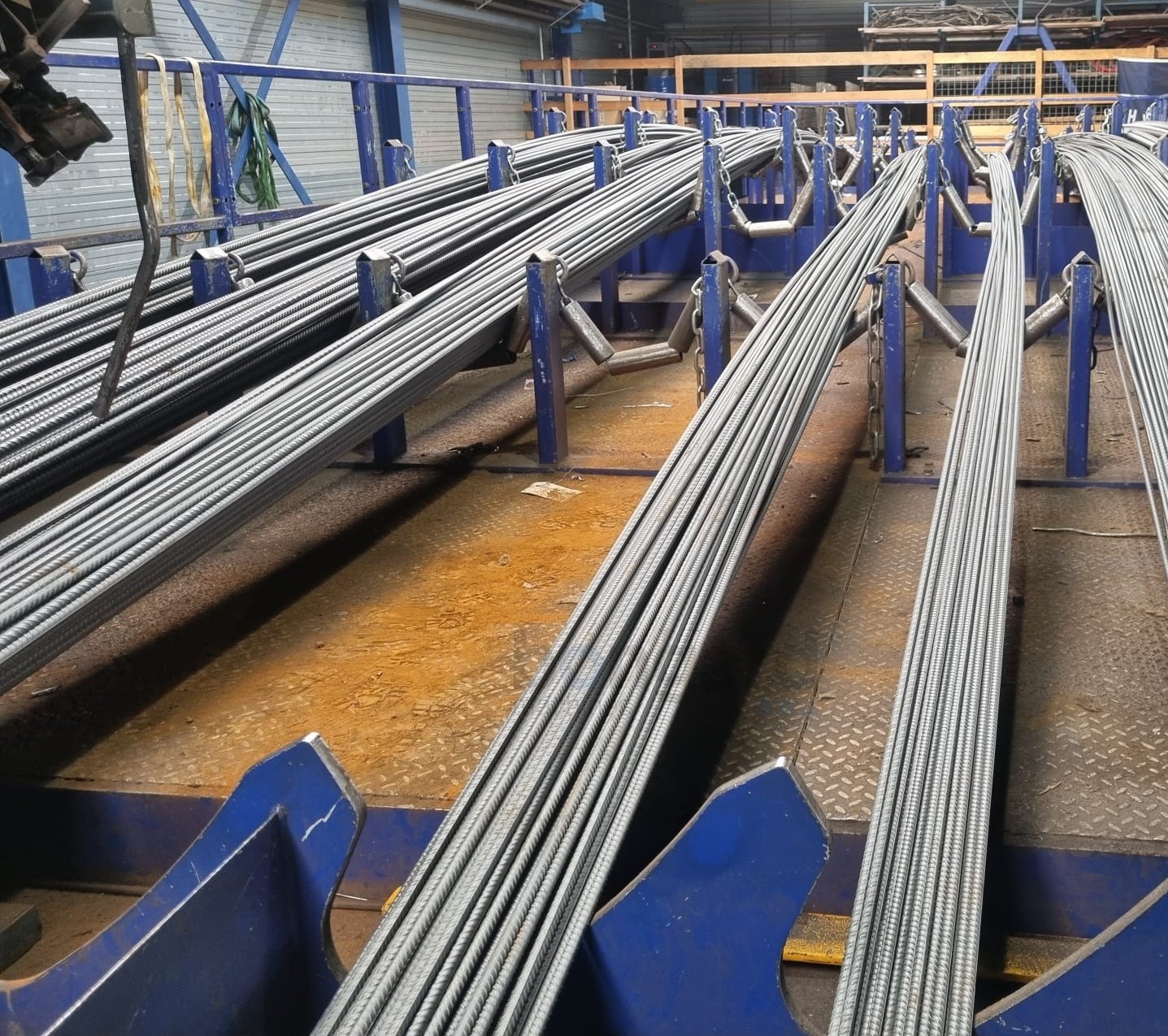

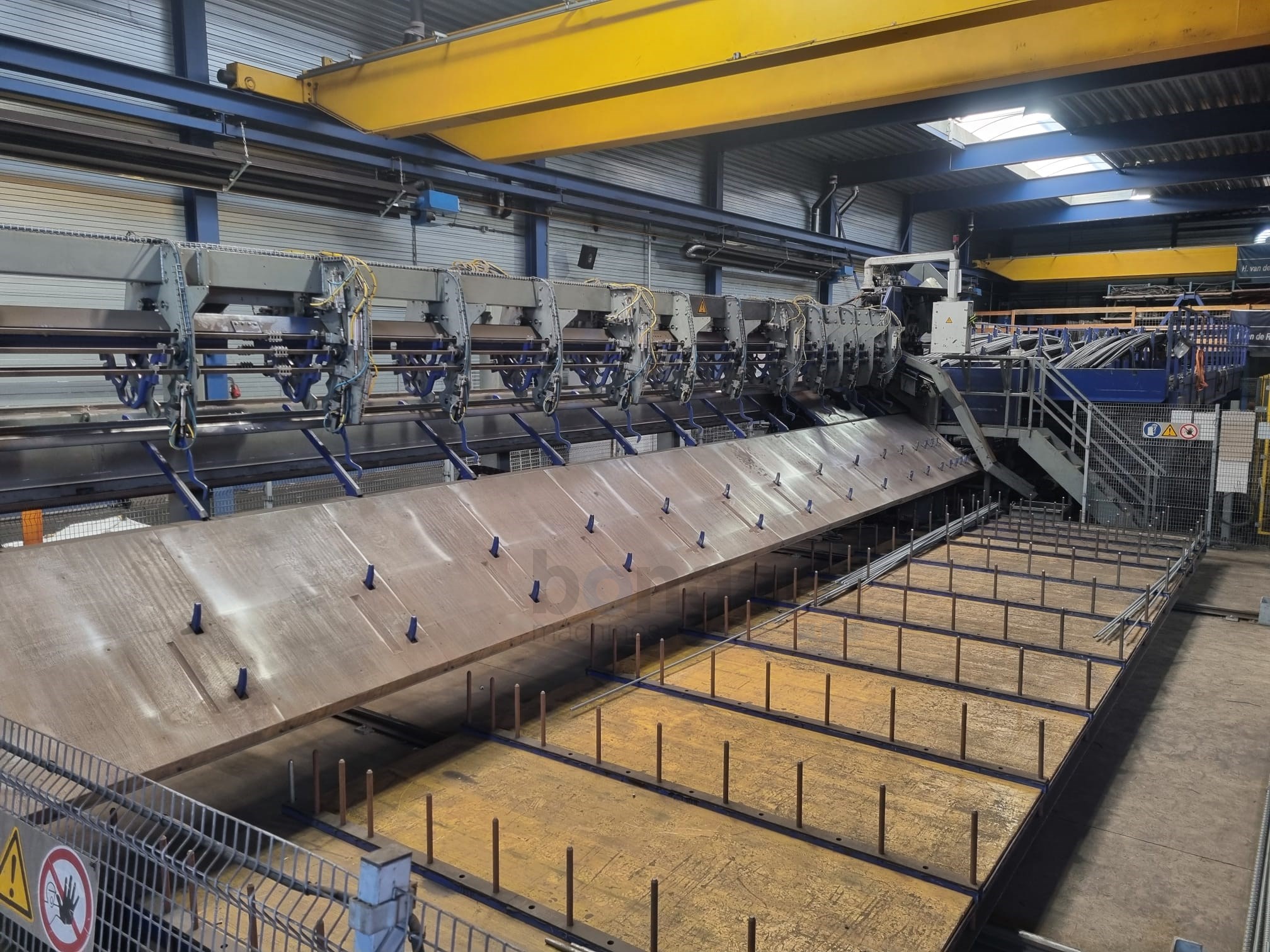

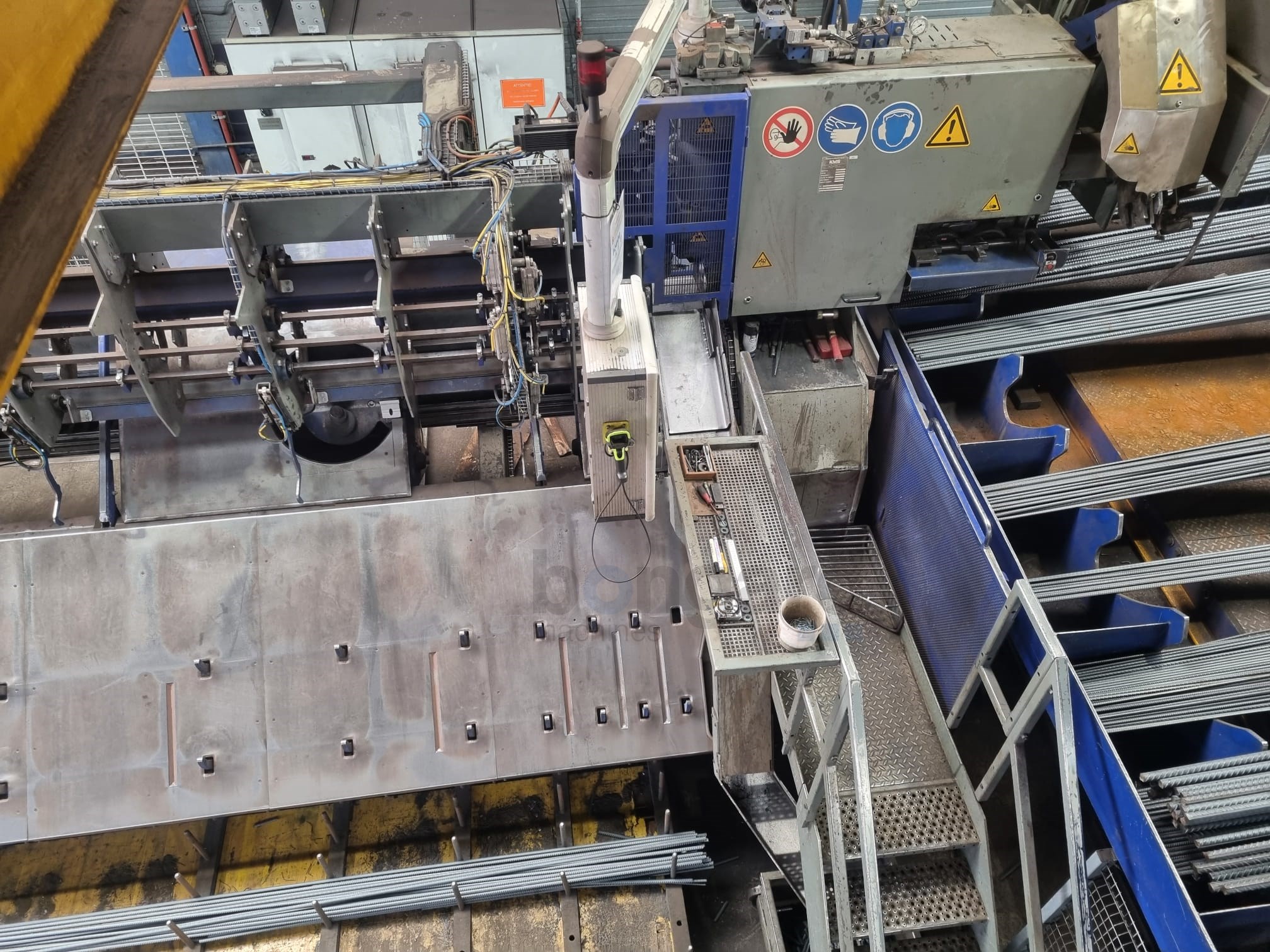

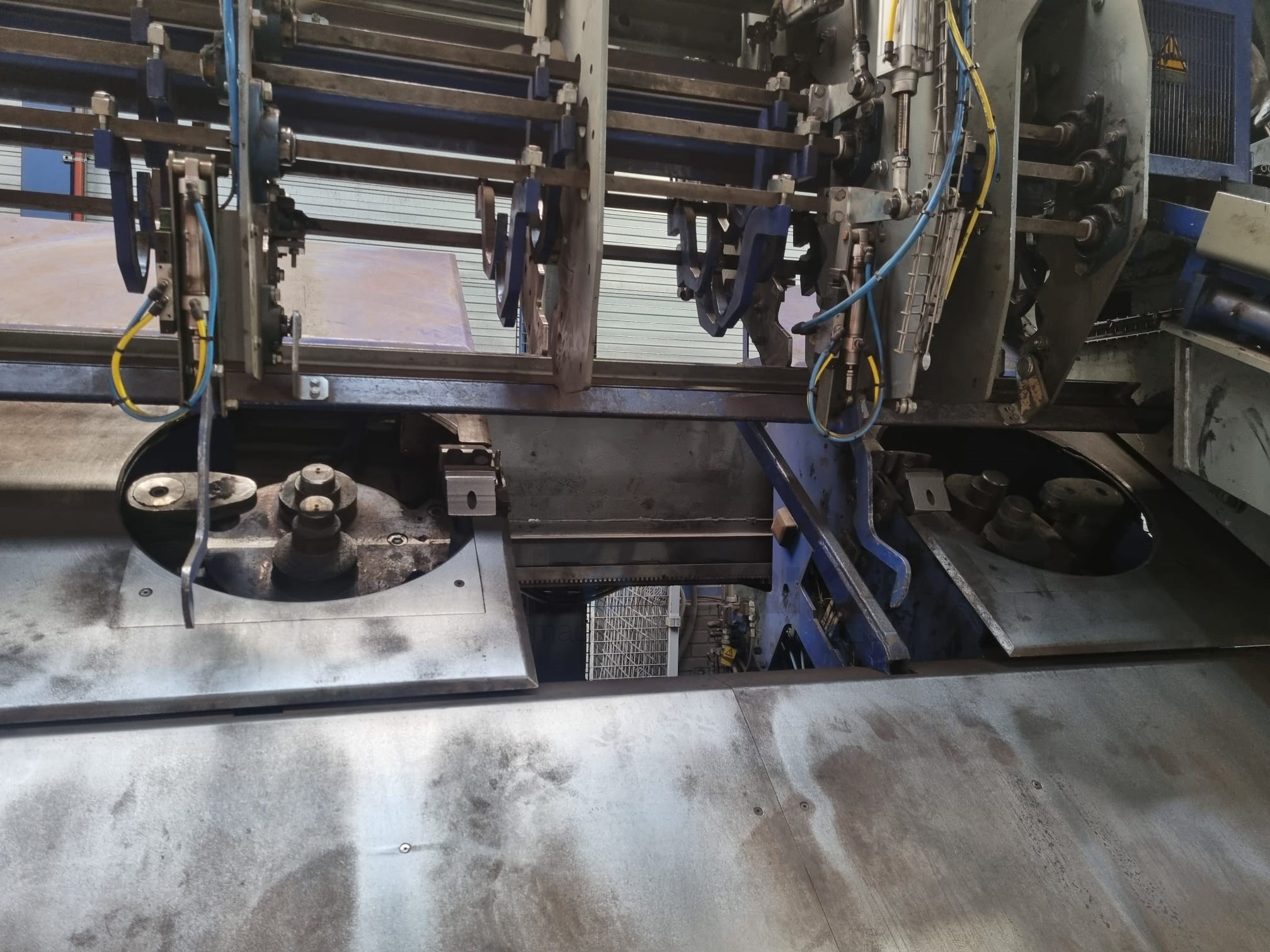

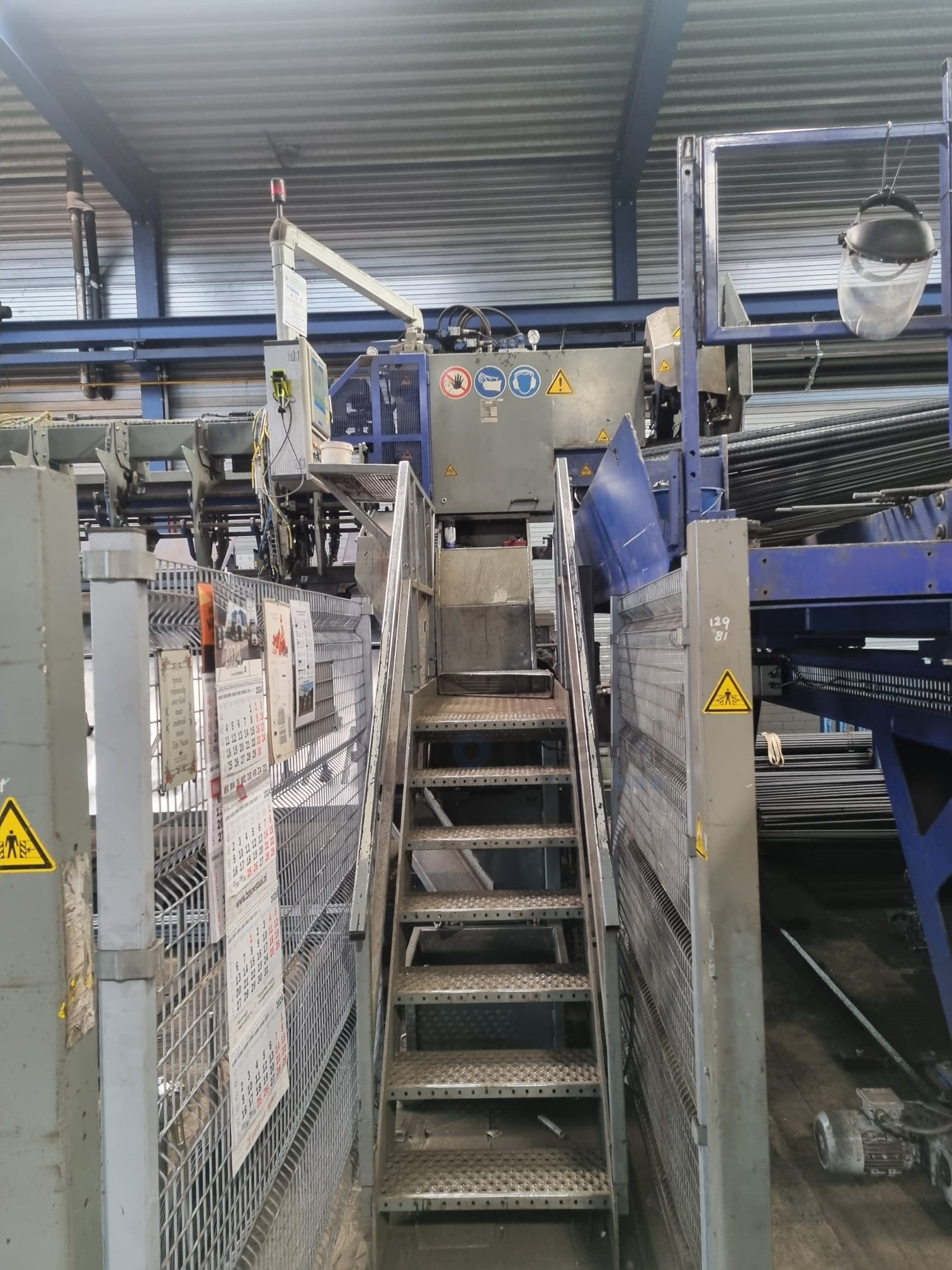

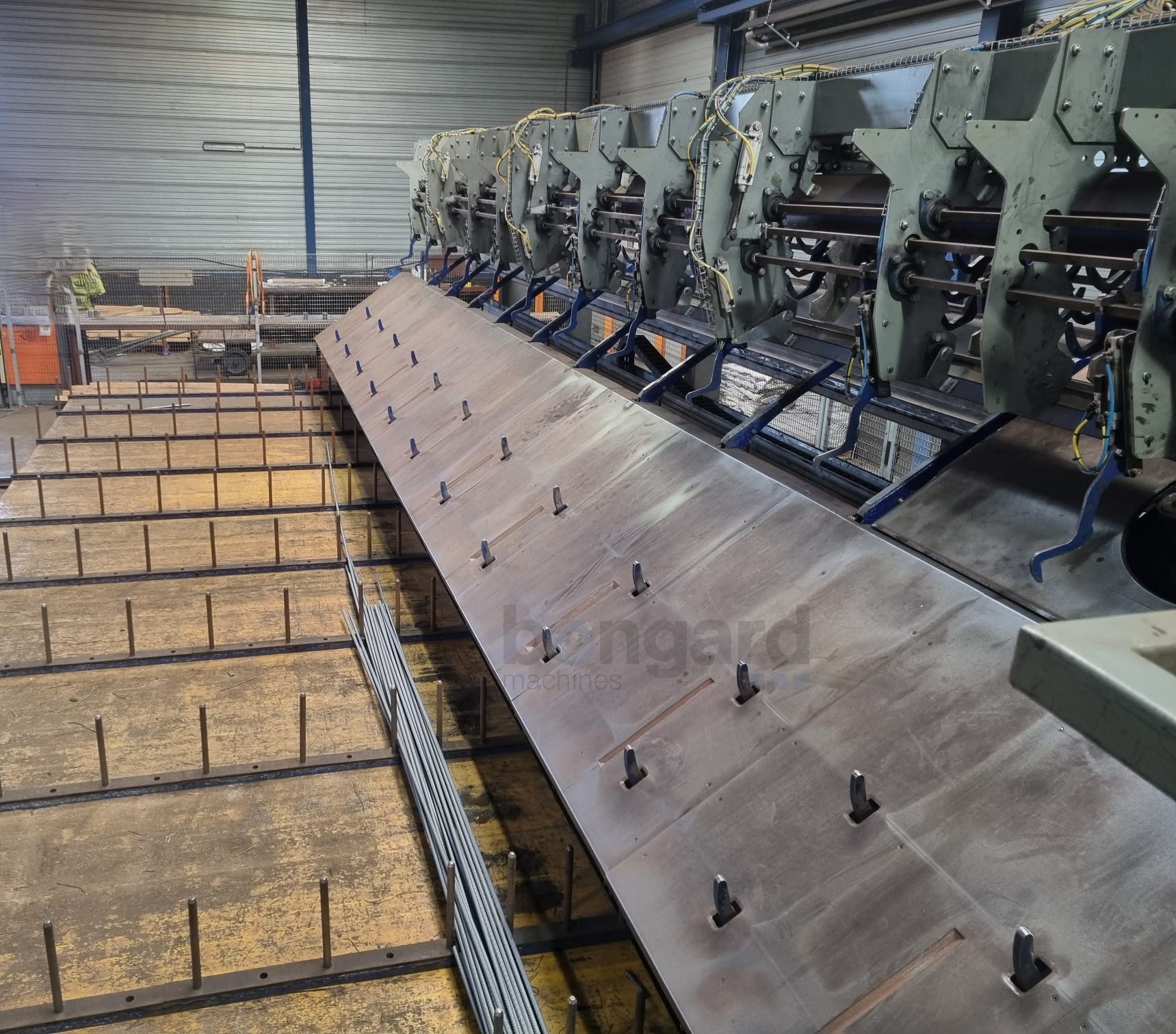

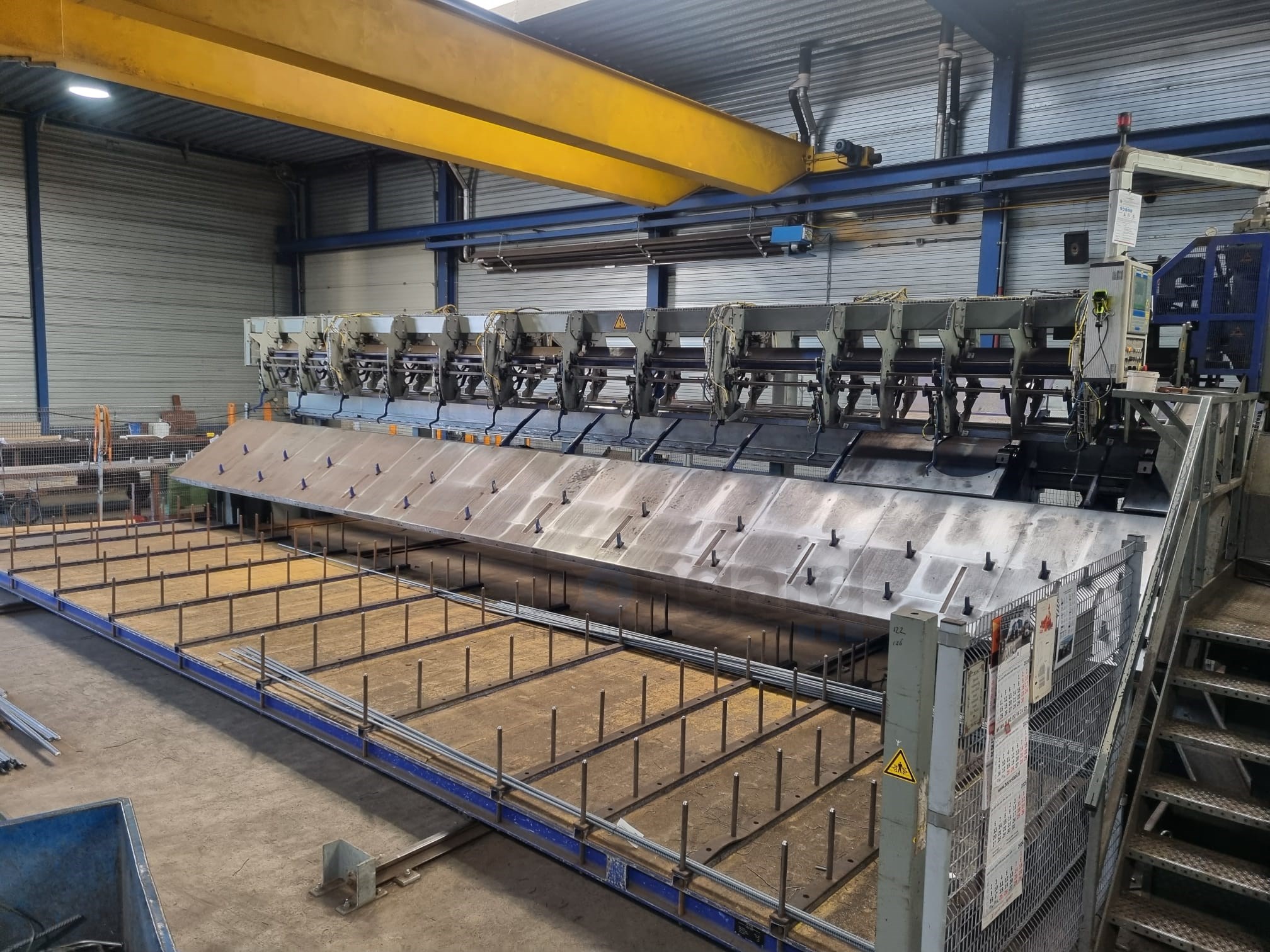

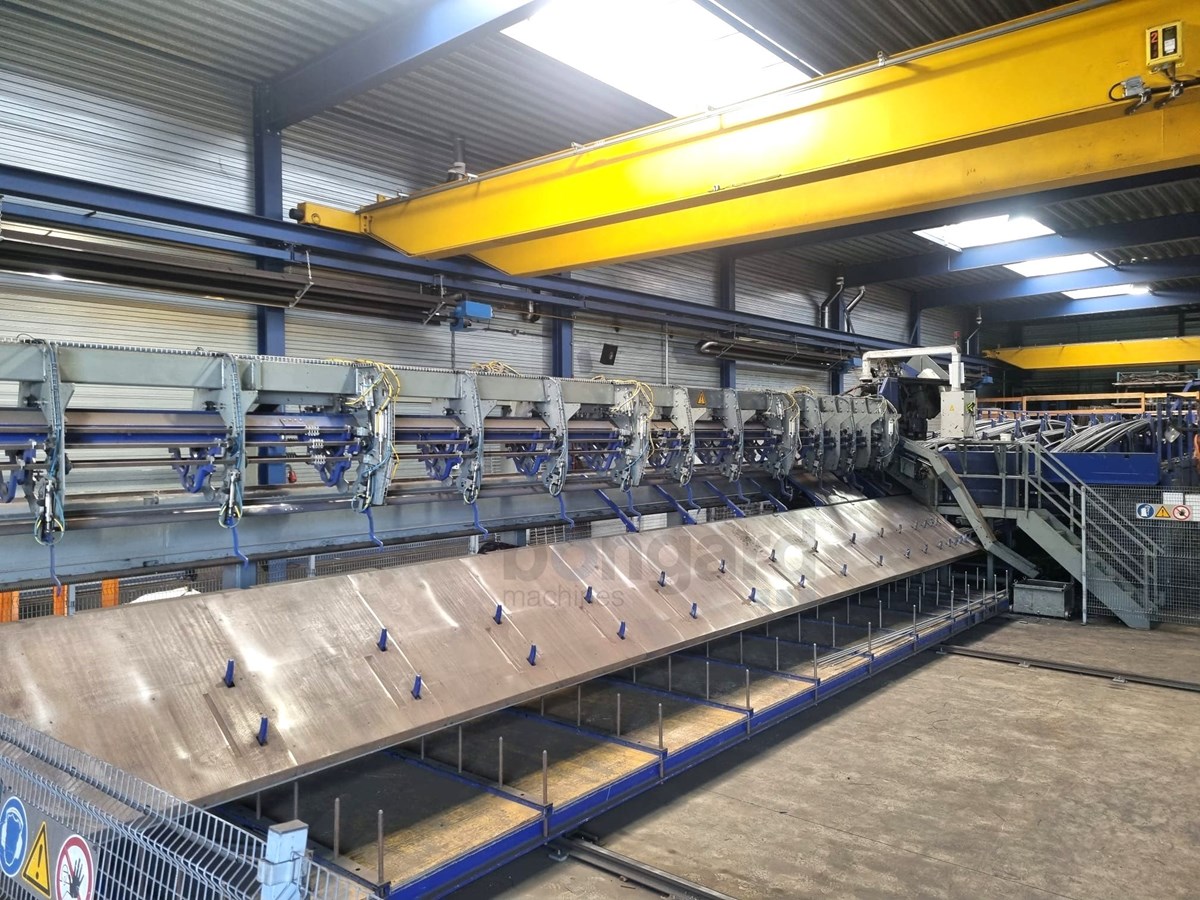

EVG DBE 28 Flexible processing centre for fully automatic cutting and bending of steel bars
détails techniques
-
matériel travaillé jusqu'à présent:
acier à beton
-
approprié pour:
The system cuts and bends reinforcing steel bars from 8 to 28 mm, with cutting and bending taking place simultaneously in two separate processes. Bars up to 32 mm can be processed in pure cutting mode.
-
inlet speed max:
3 m/s
-
état technique:
instaled
-
Ø min de la barre:
8 mm
-
Ø max de la barre:
32 mm
-
longueur de coupe min:
0,8 m
-
longueur de coupe max:
12 m
-
tension de service:
380 V
-
fréquence:
50 Hz
-

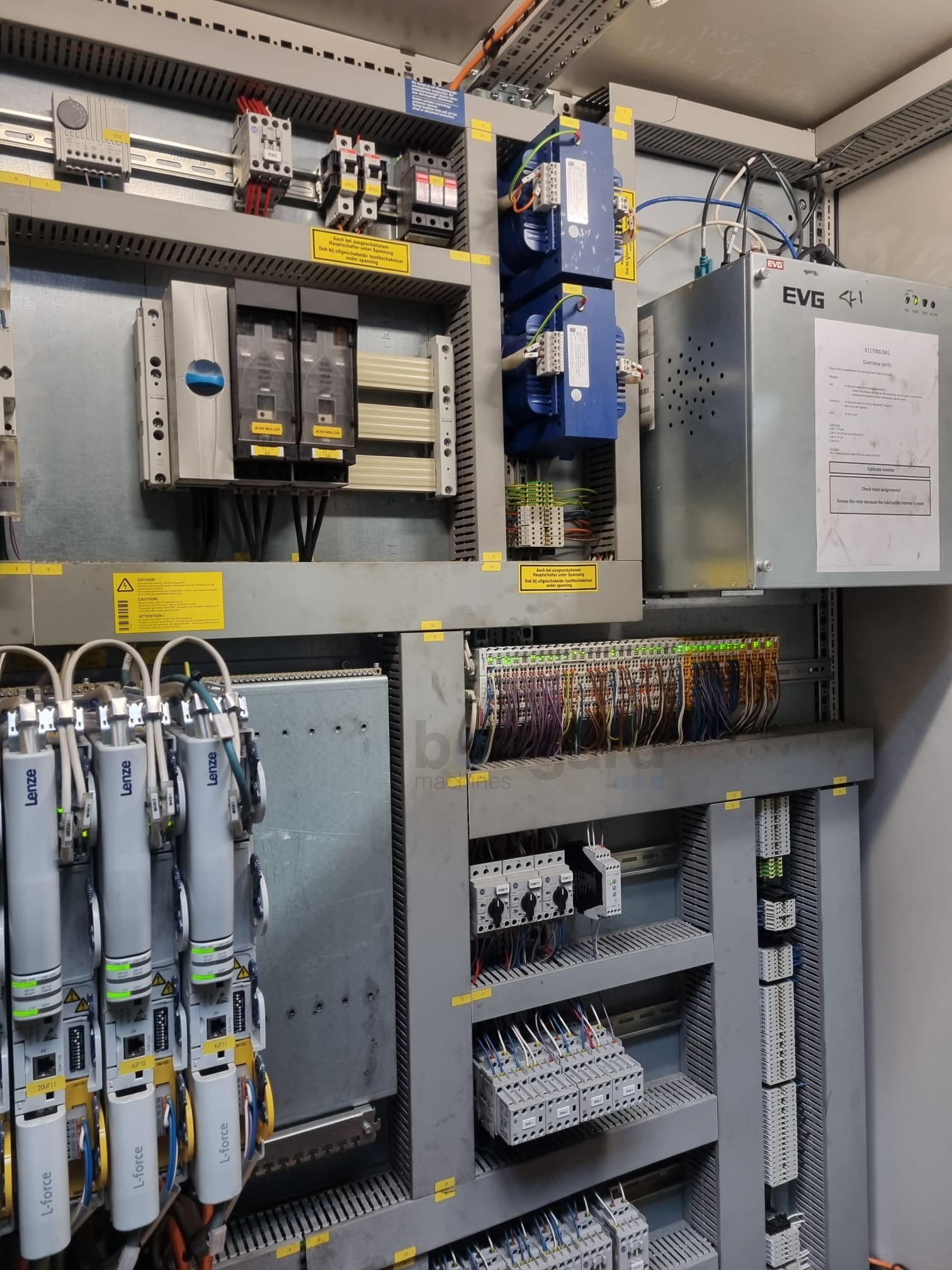

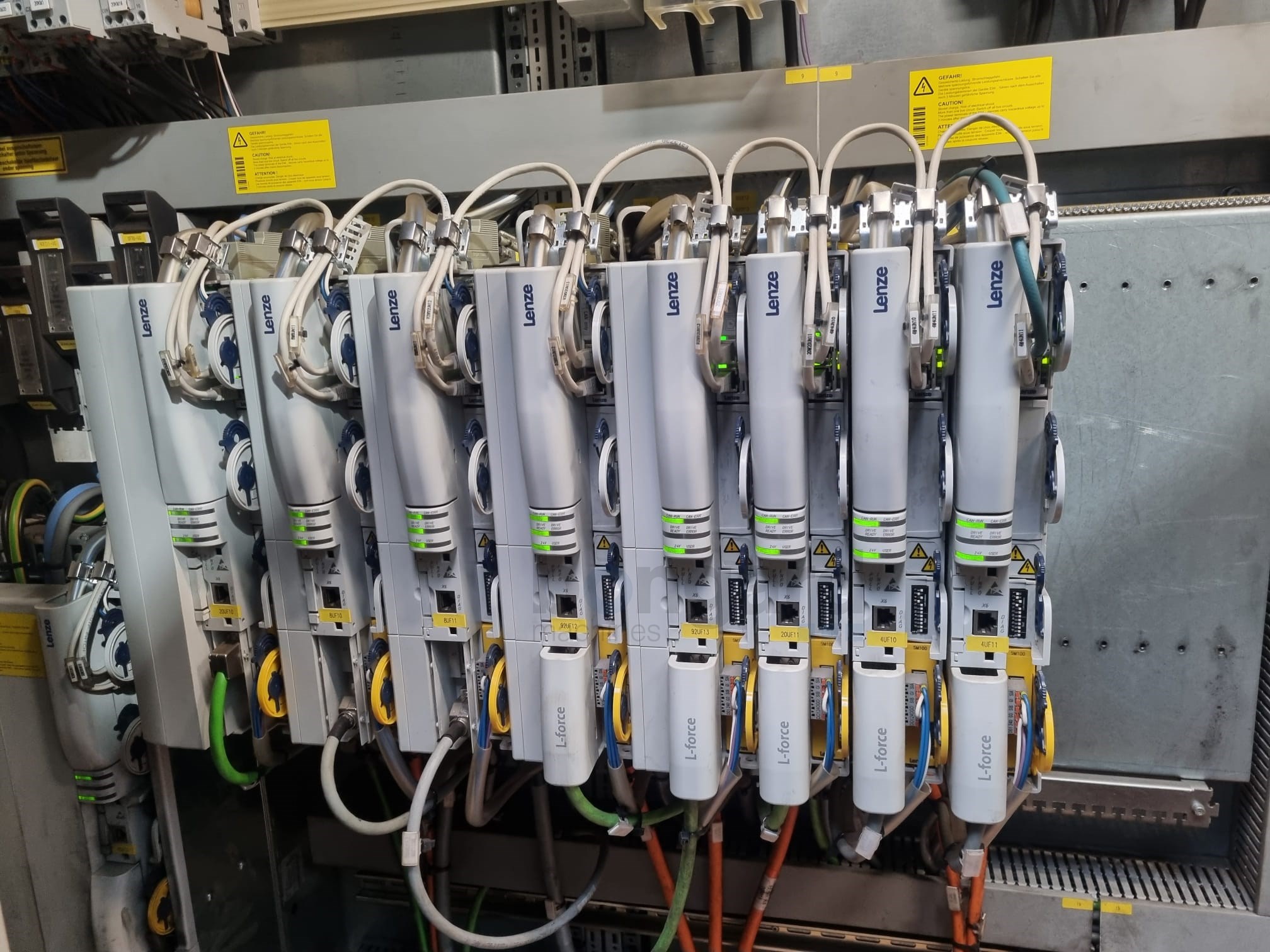

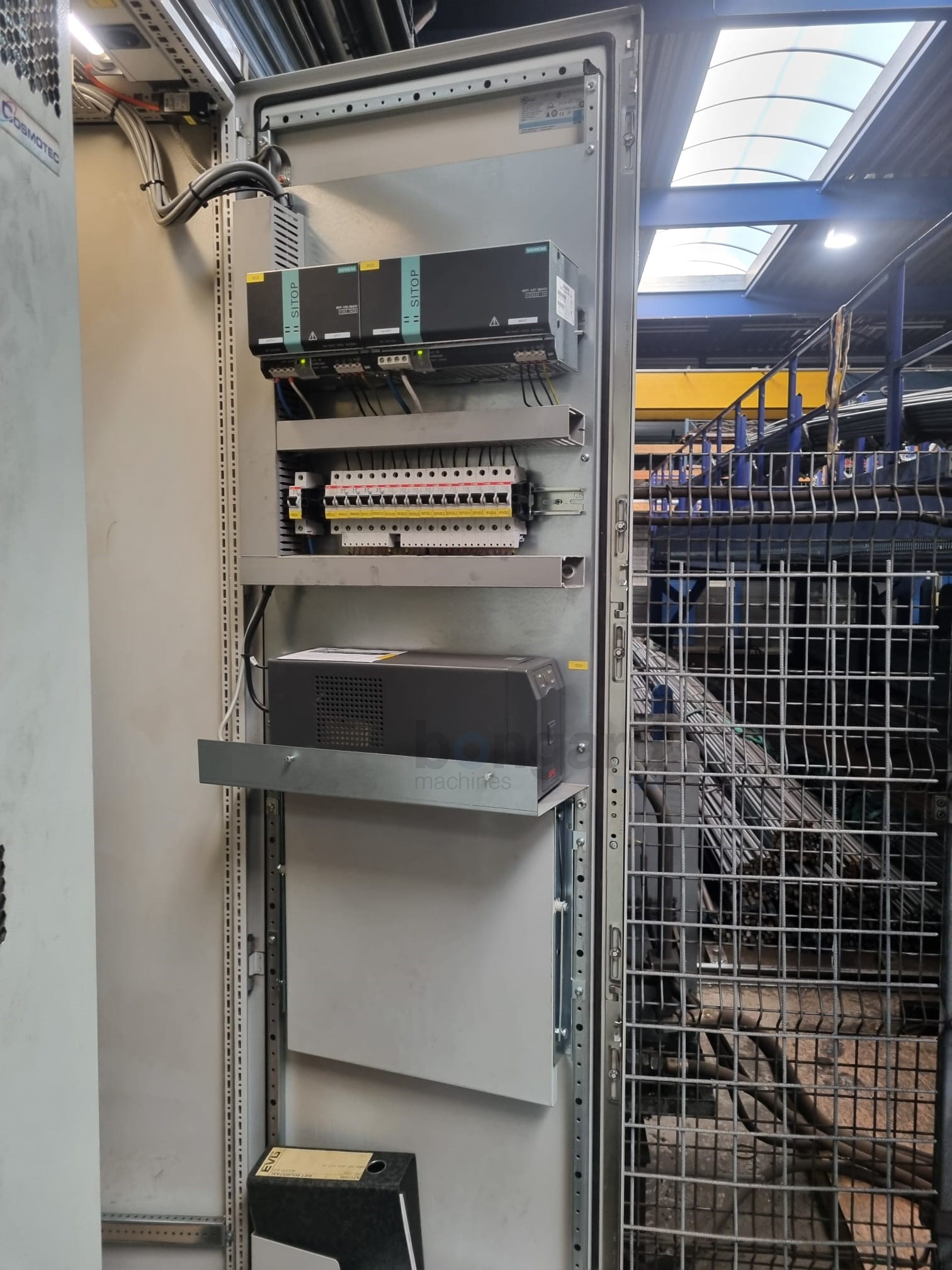

armoire électrique:
disponible
-
données supplémentaires:
- Fully automatic operation without manual material feed, transfers etc. thanks to automatic gripper system.
- Maximum flexibility thanks to automatic change of bar diameter and bending tool within a few seconds.
- High output rates thanks to short throughput times and simultaneous bending of up to 3 bars.
- Automatic depositing or shredding of offcuts.
- Minimal length tolerance of the cut-to-length bar or bent leg.
- Long service life thanks to high-quality components and robust design.
- Low noise emission even at high processing speeds.

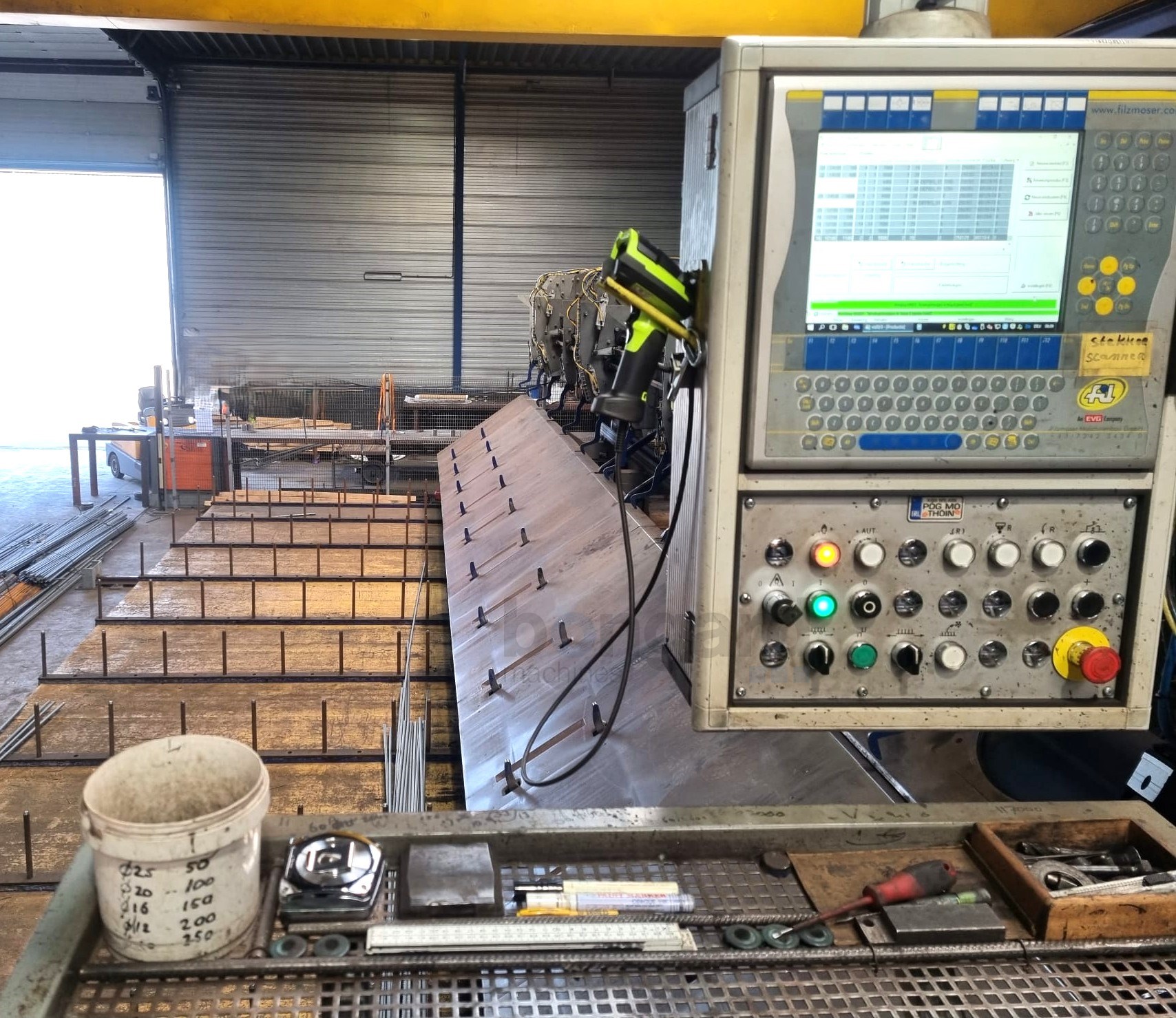

- User-friendly Windows-based soft PLC control.
- Bending capacity:
- up to bar diameter 12 mm: 3 bars
- up to bar diameter 16 mm: 2 bars
- up to bar diameter 28 mm: 1 bar
- Leg lengths:
- Centre leg: 76013,780 mm
- Bending upwards: 1101,100 mm
- Bending downwards: 1102,000 mm
- Max. Bending speed: 269 degrees / sec
- Max. shear force: 500 kN

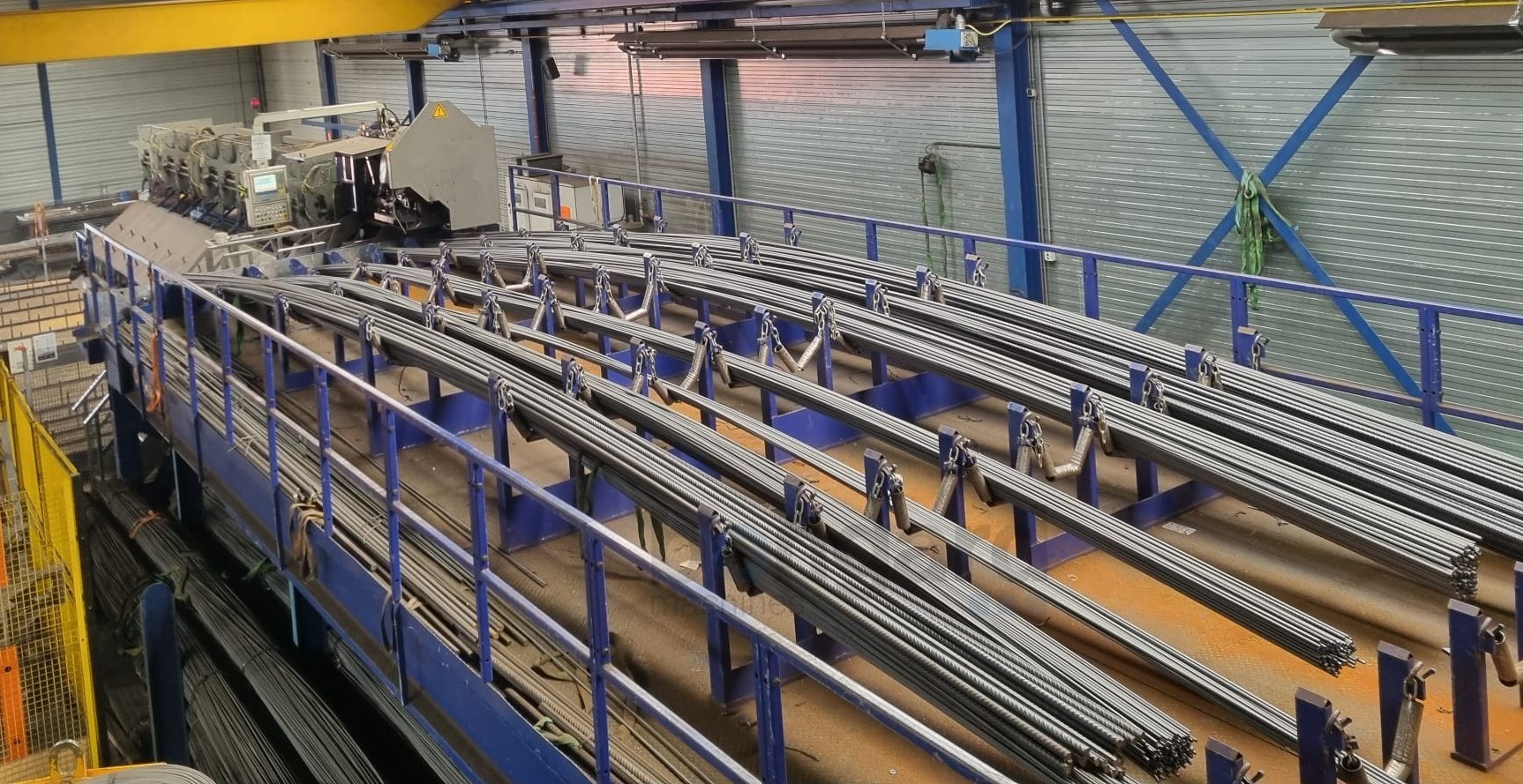

- Line consists of:
- Bar lengthener, travelling version.

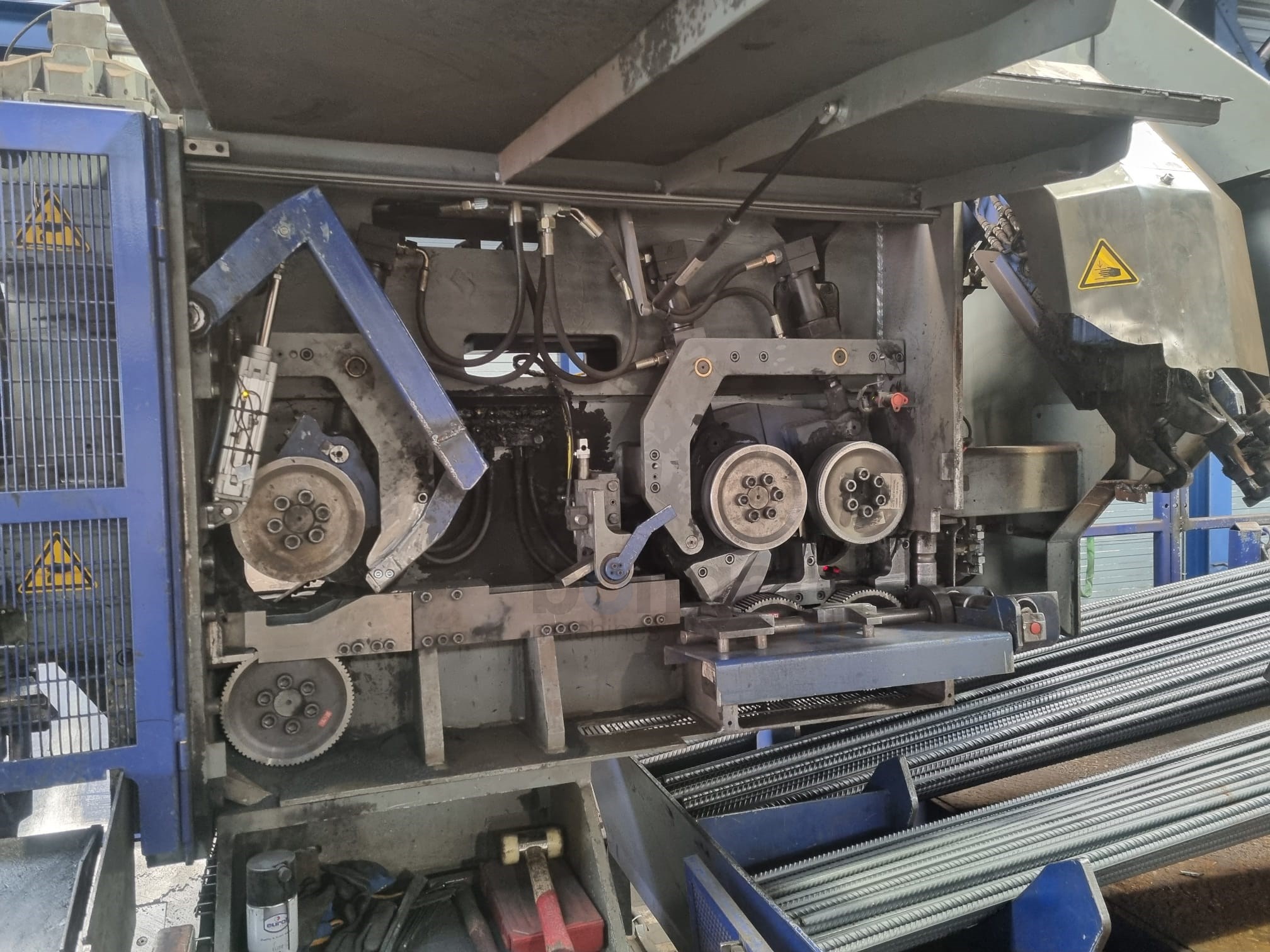

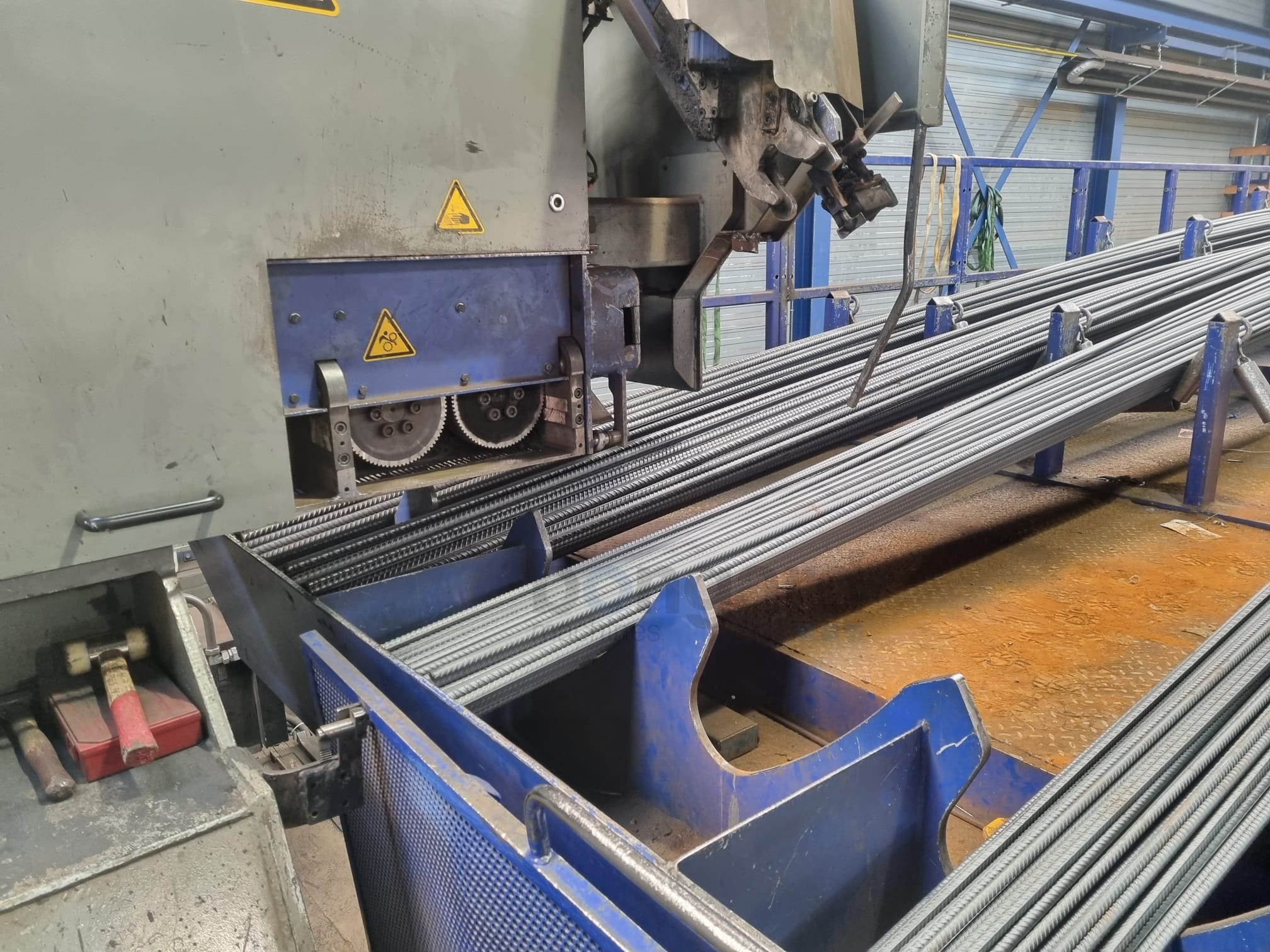

- Automatic bar feeder

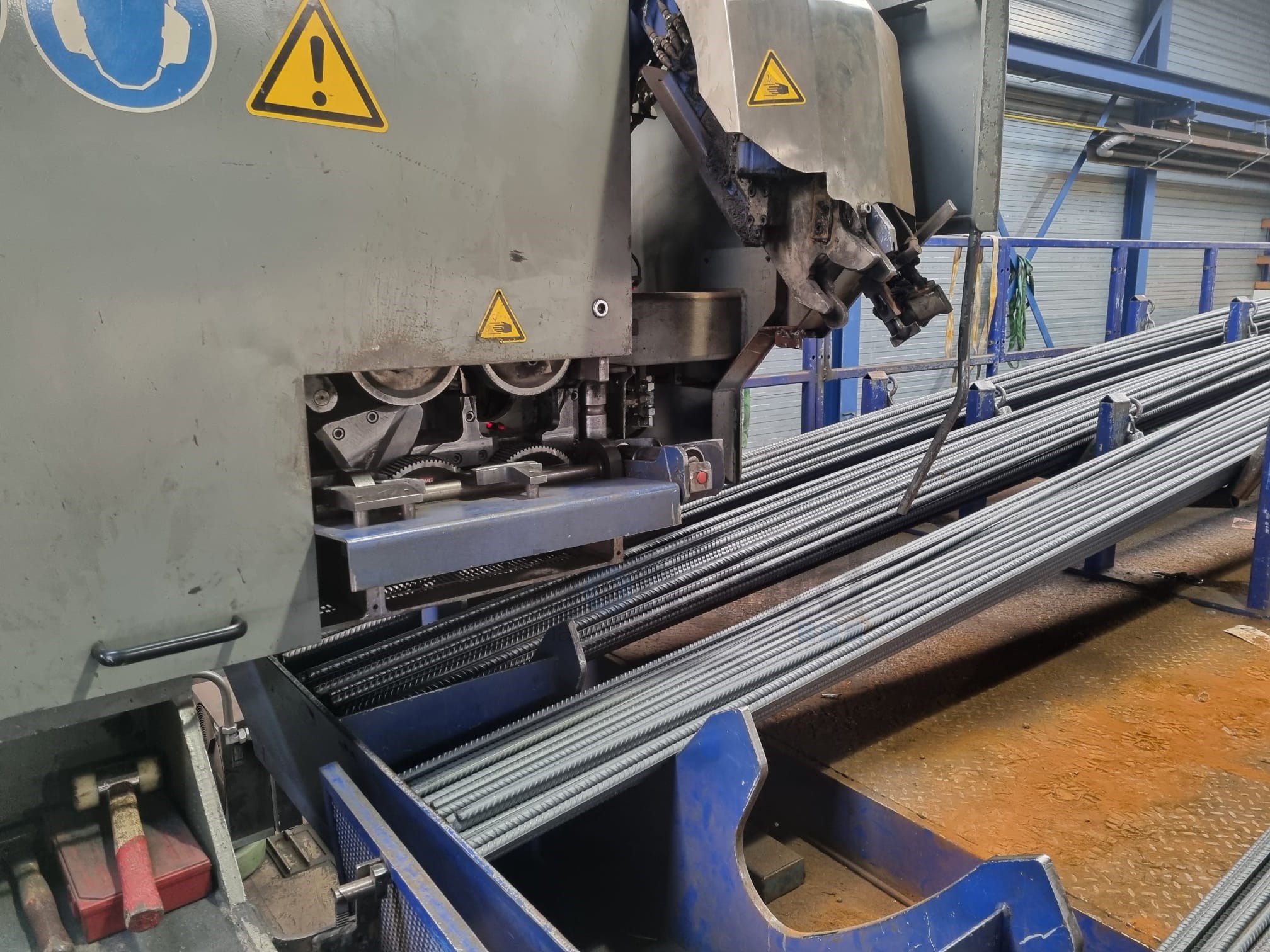

- Bar feeder with feed and shear
- Hydraulic shear
- Bar outfeed conveyor for max. bar length 12 m

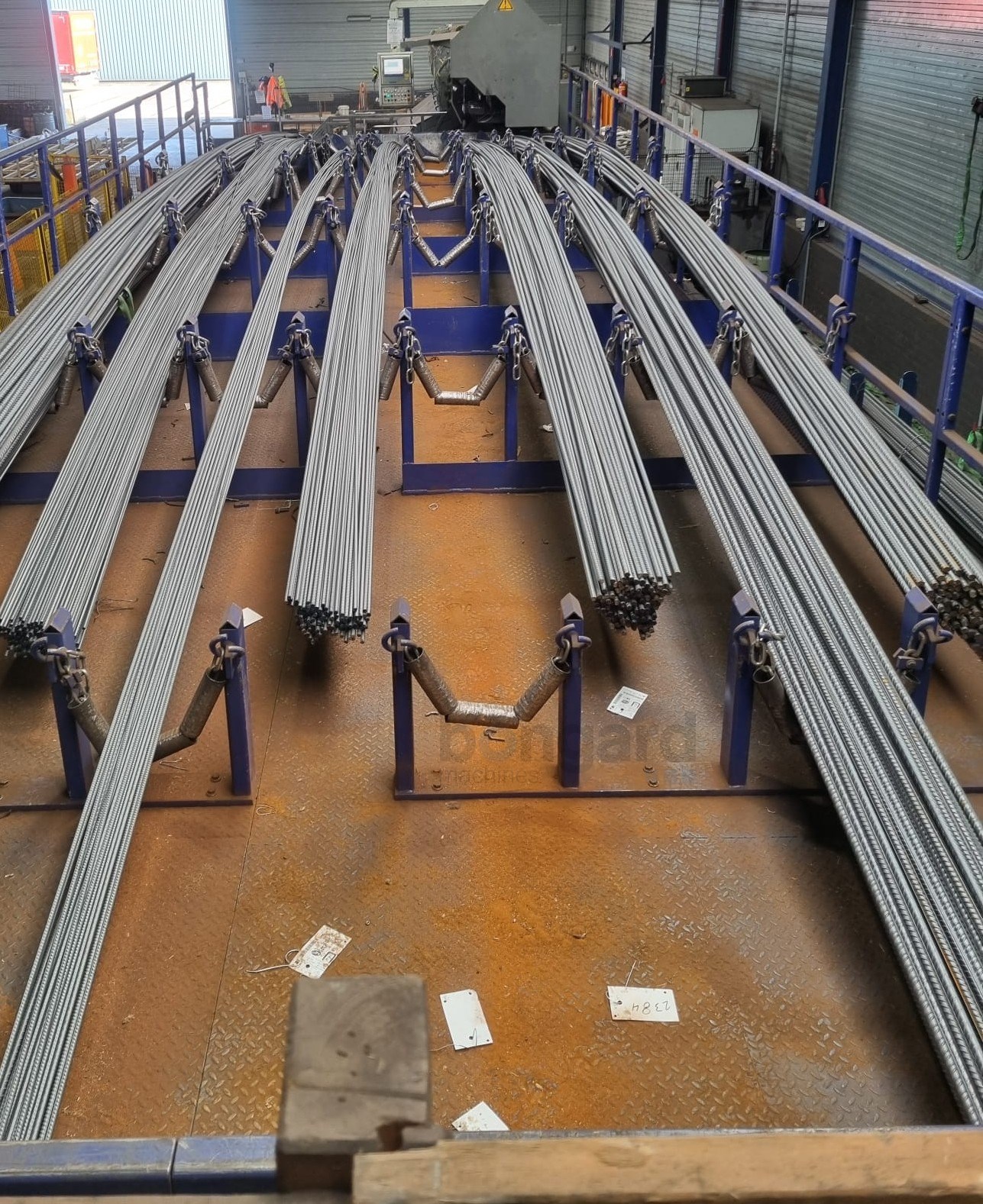

- Intermediate magazine

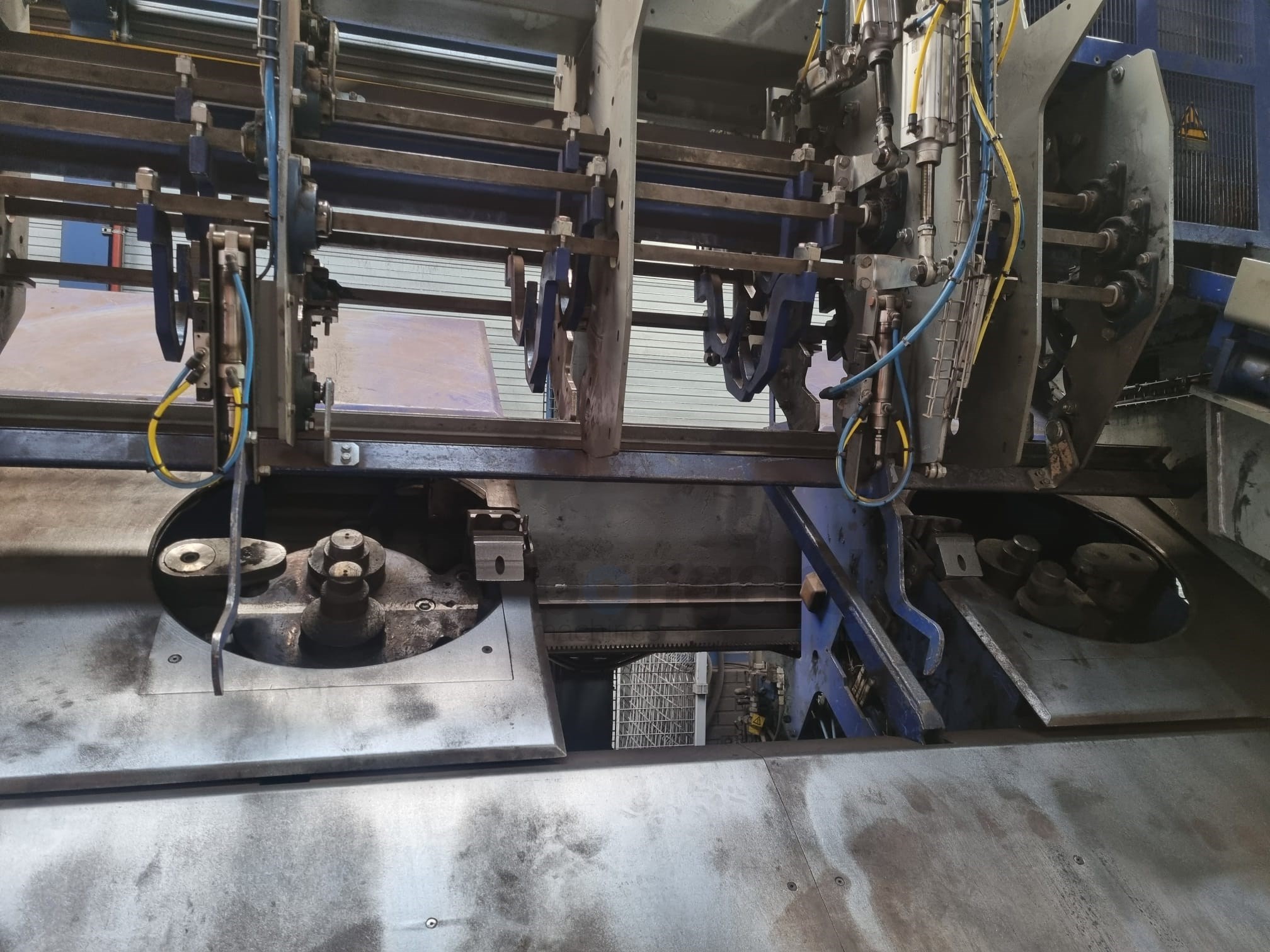

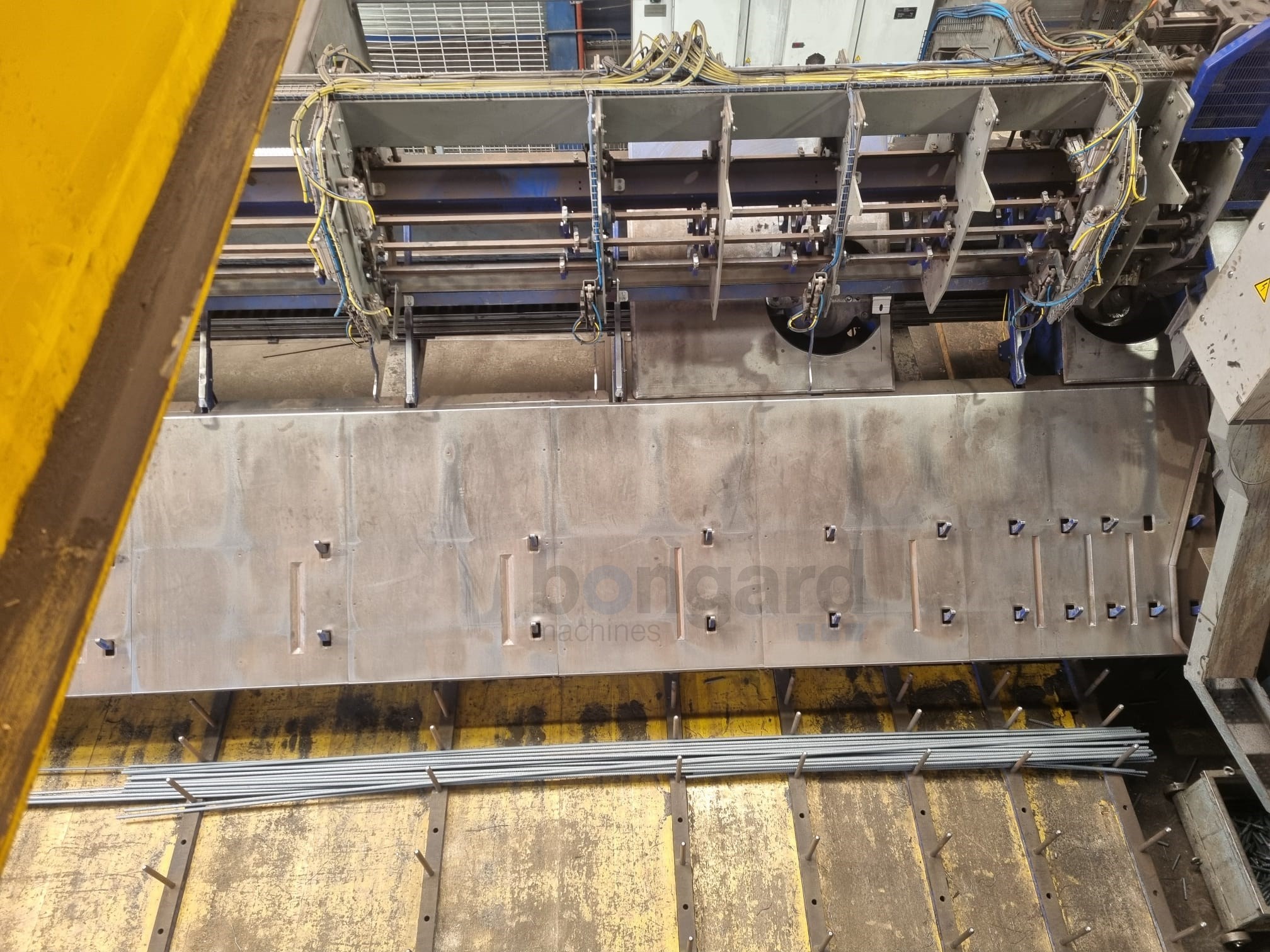

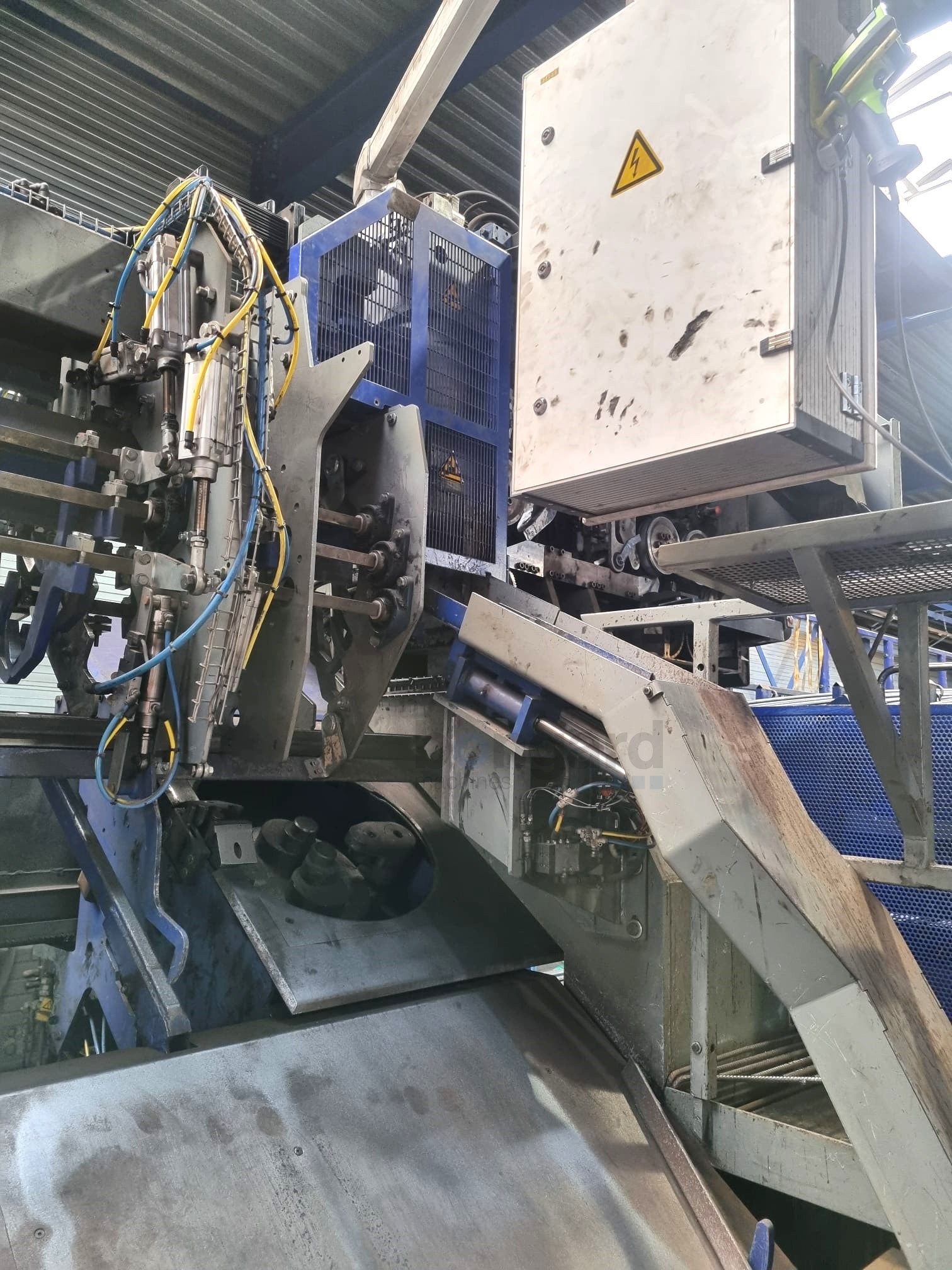

- Double bending unit DBE

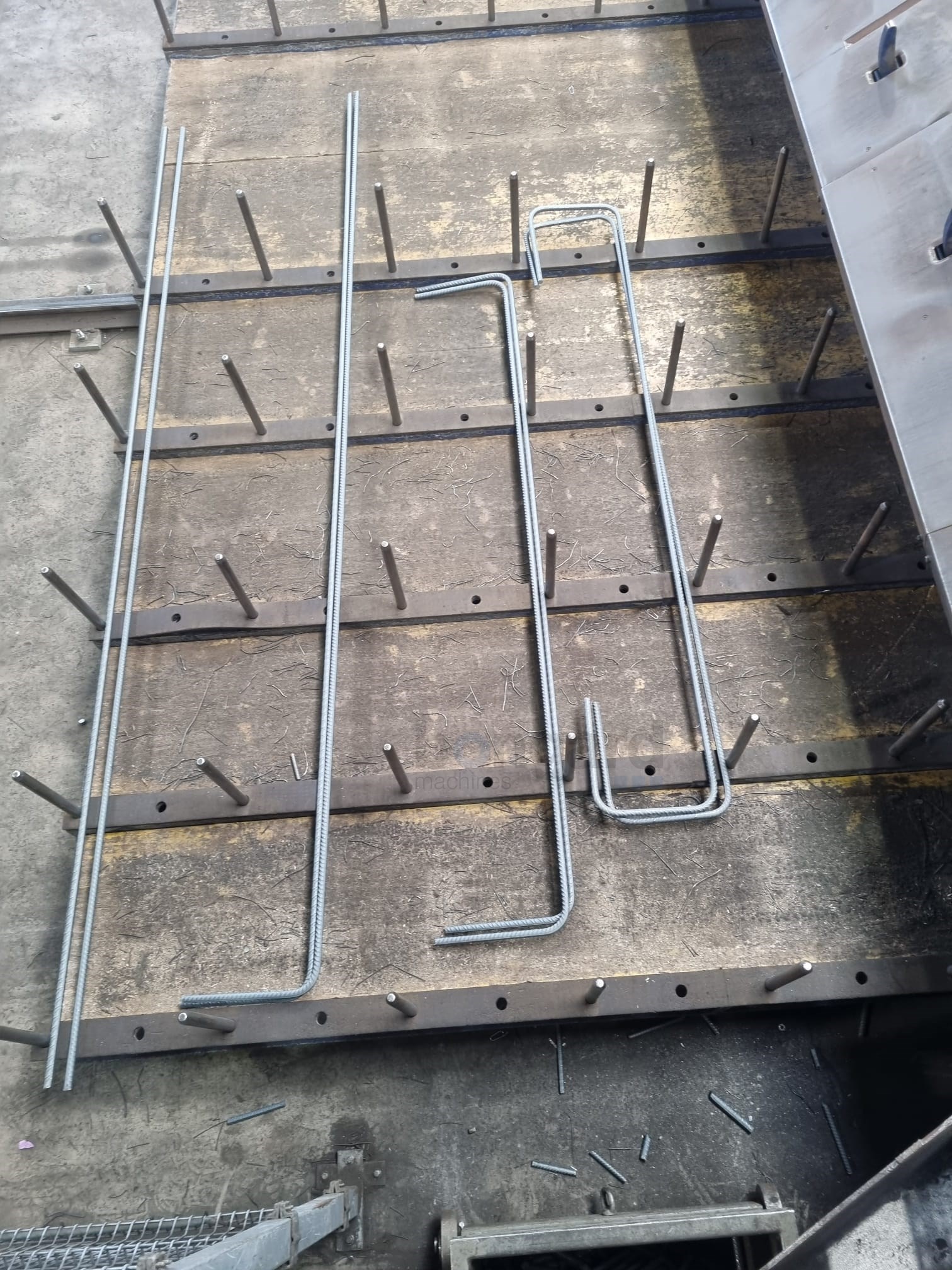

- Hook magazine
- Pallet trolley, automatically movable
