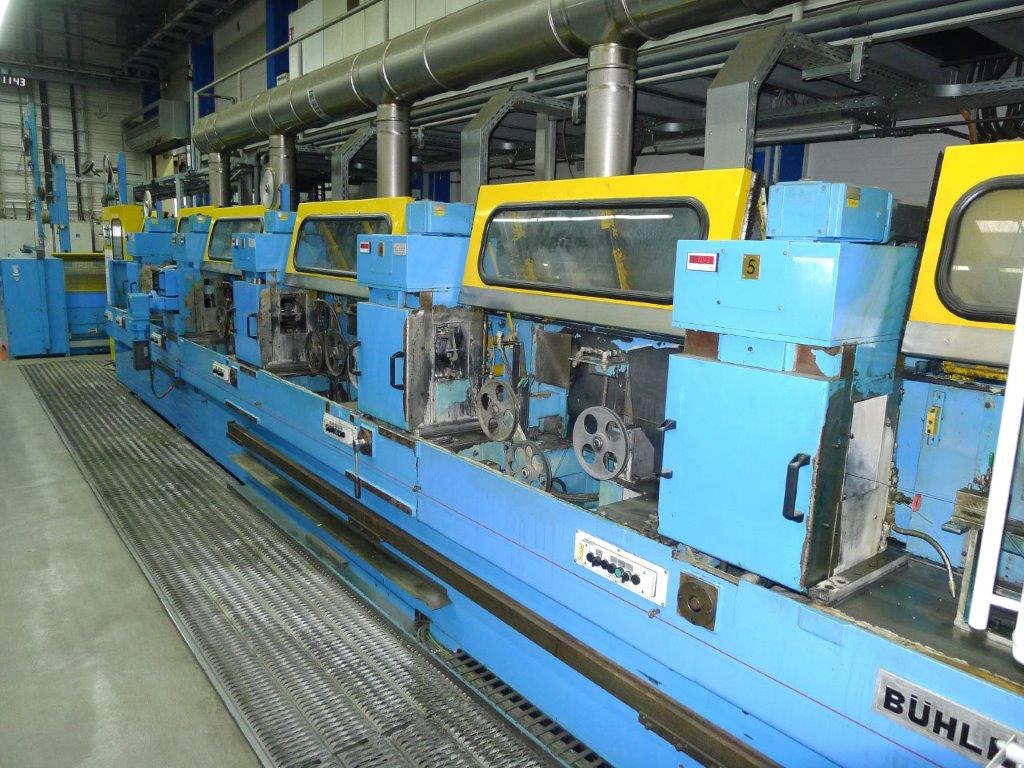

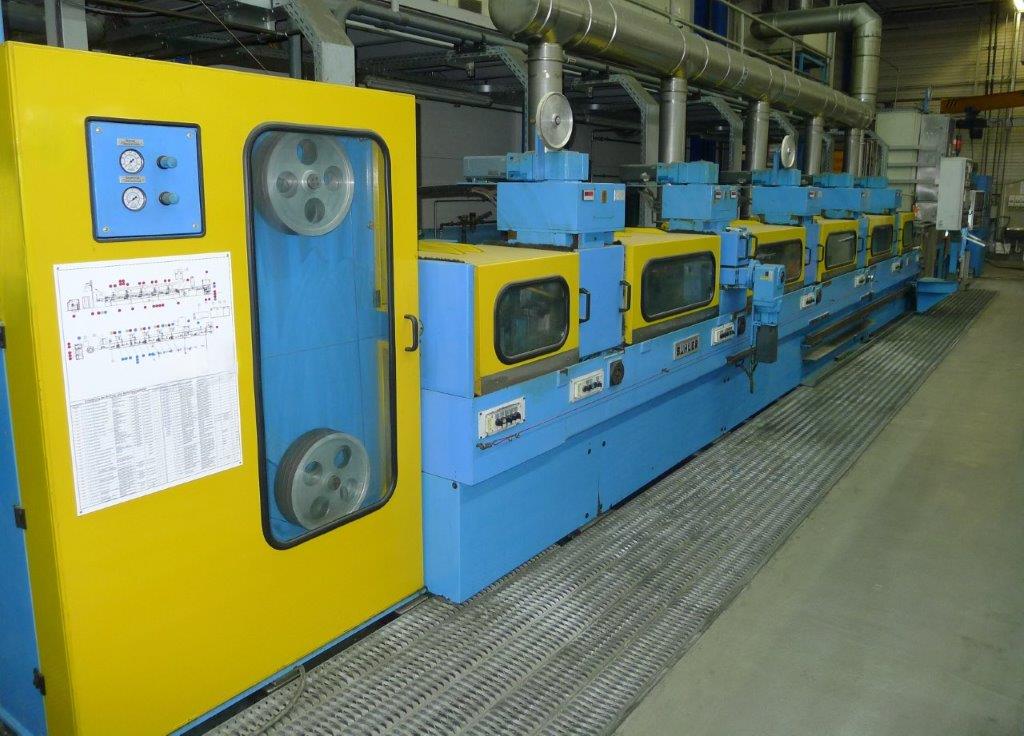

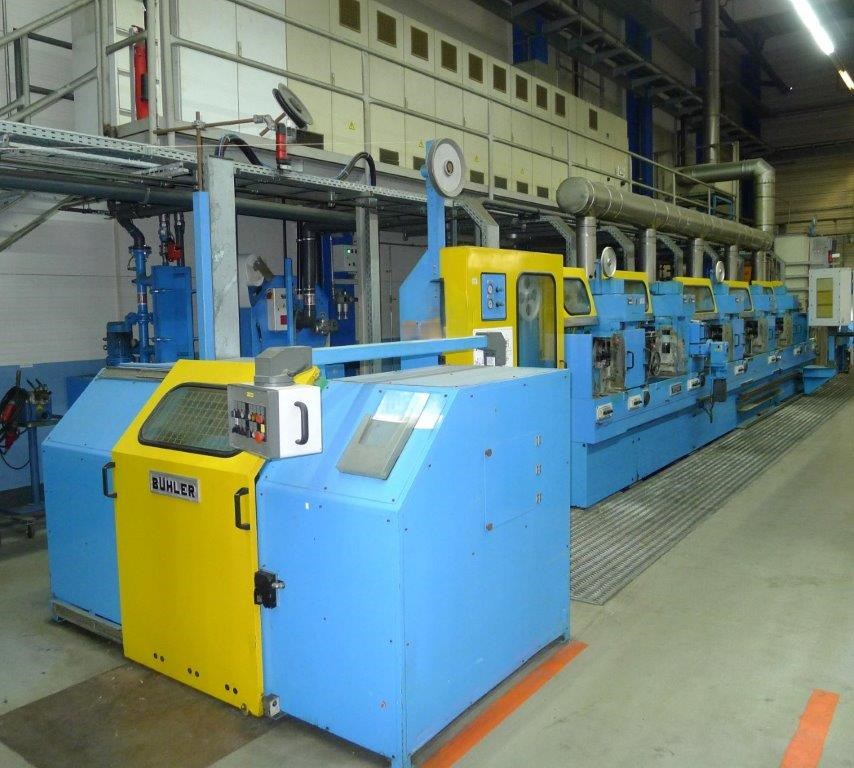

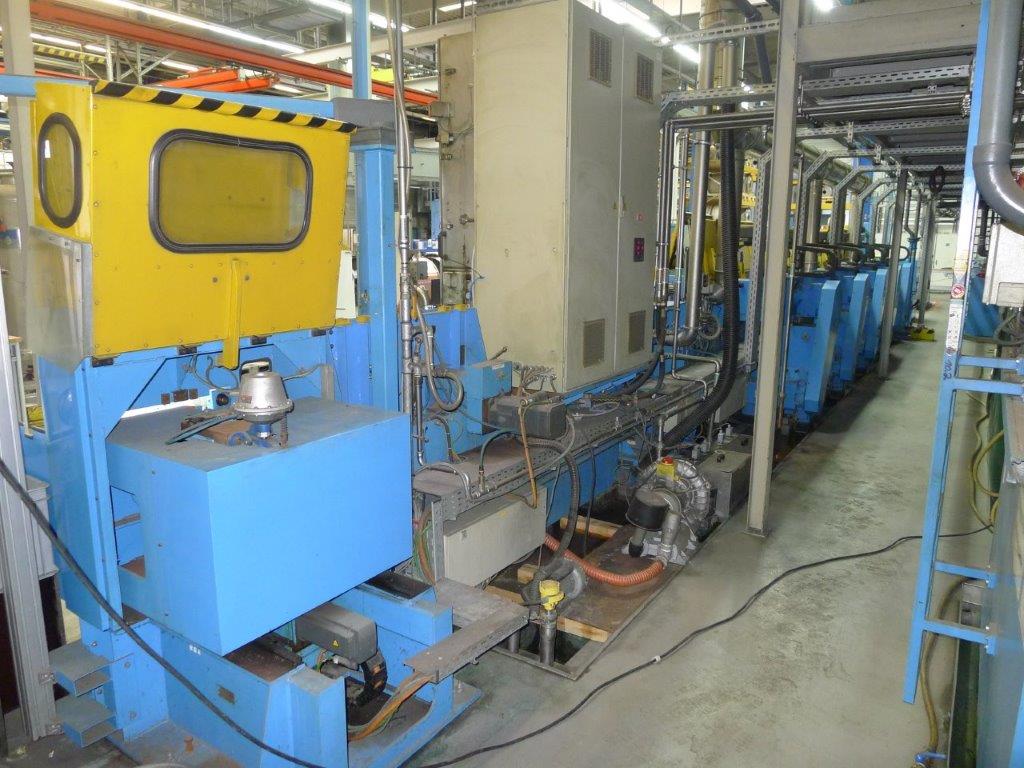

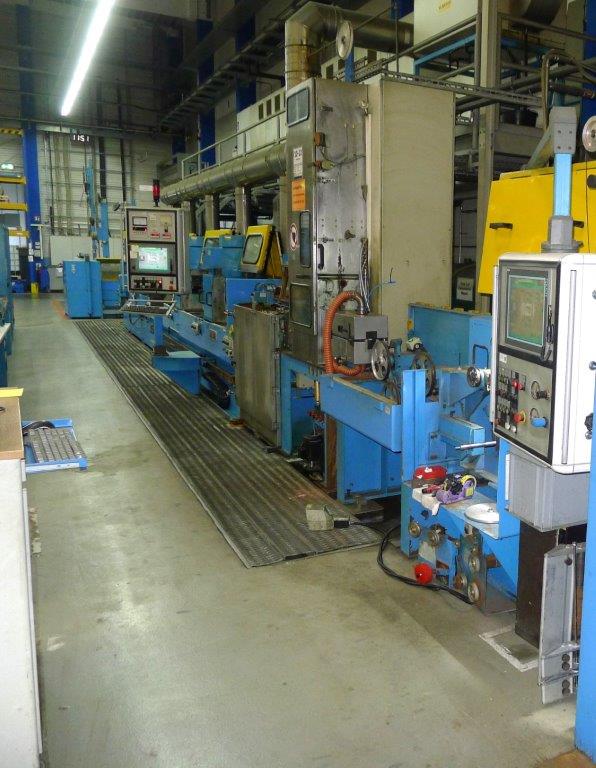

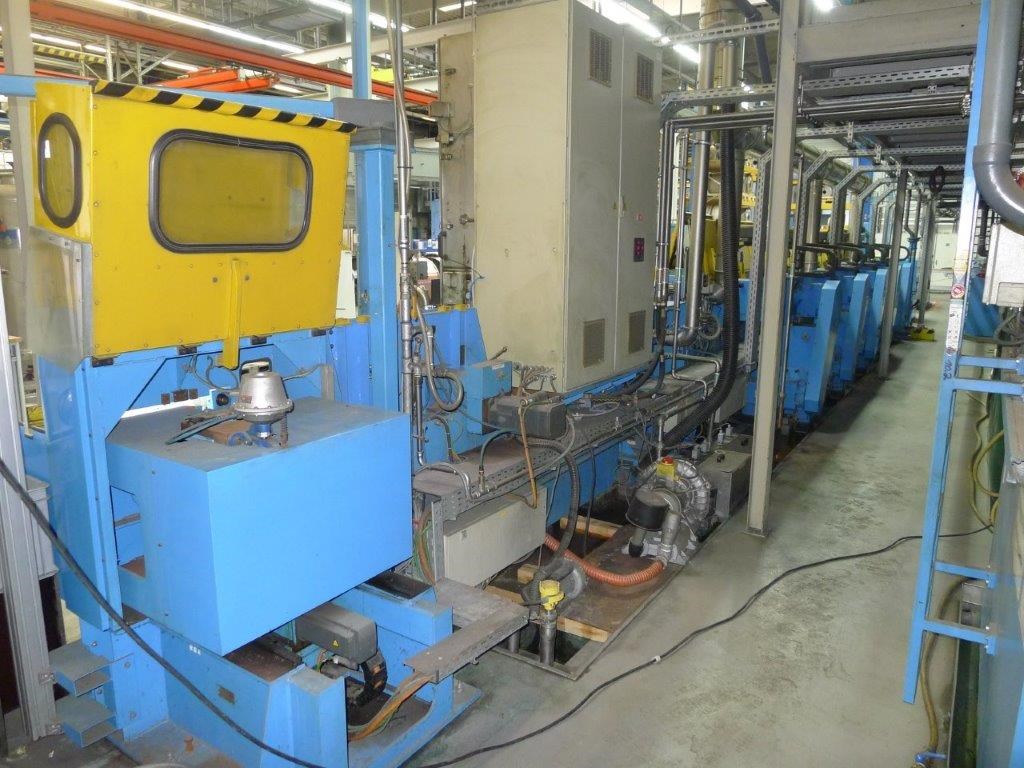

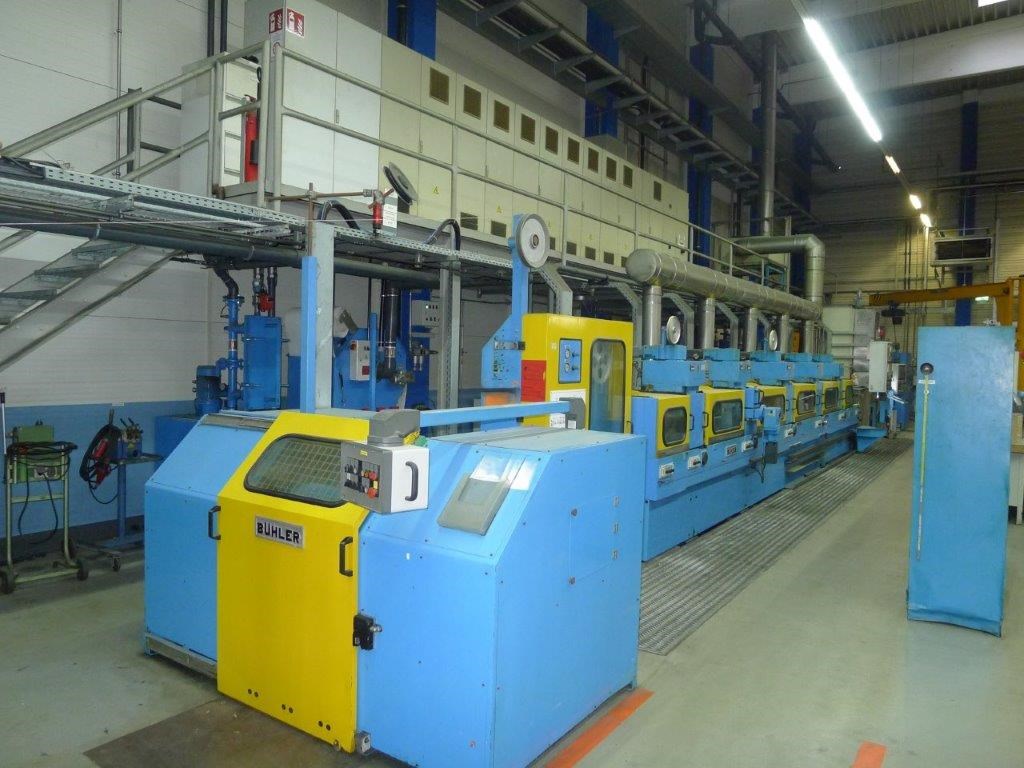

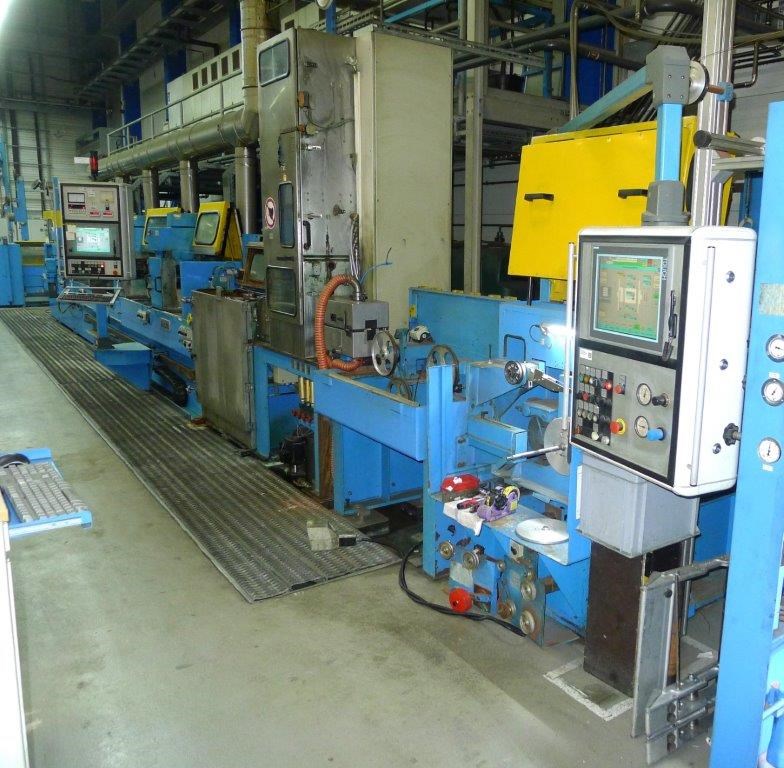

BÜHLER EWT 160-5 rolling line
informations de base
- Nummer: 13616
- contrôle: Siemens S7-400 / Siemens S7-300
détails techniques
- matériel travaillé jusqu'à présent: Cu
- approprié pour: for rolling round to finished material flat wire with natural round edges, burr-free, including plasma inline annealing
- no. de cages: 5
- état technique: installed, production stopped
- largeur matériel min: 1 mm
- largeur matériel max: 12 mm
- épaisseur matériel min: 0,07 mm
- épaisseur matériel max: 0,2 mm
- Ø fil min: 0,5 mm
- Ø fil max: 6 mm
-
example de production:
0,100 mm x 1,54 mm= 600 m/min.
0,100 mm x 4,08 mm= 600 m/min.
0,100 mm x 6,62 mm= 600 m/min.
0,100 mm x 9,16 mm= 300 m/min.
0,100 mm x 11,70 mm= 300 m/min.
0,200 mm x 1,54 mm= 600 m/min.
0,200 mm x 4,08 mm= 600 m/min.
0,200 mm x 6,62 mm= 600 m/min.
0,200 mm x 9,16 mm= 300 m/min.
0,200 mm x 11,70 mm= 300 m/min - vitesse: 10-300 / 10-600 m/min
- vitesse max: 600 m/min
- tension de service: 400 V
- fréquence: 50 Hz
- tension de commande: 230 V

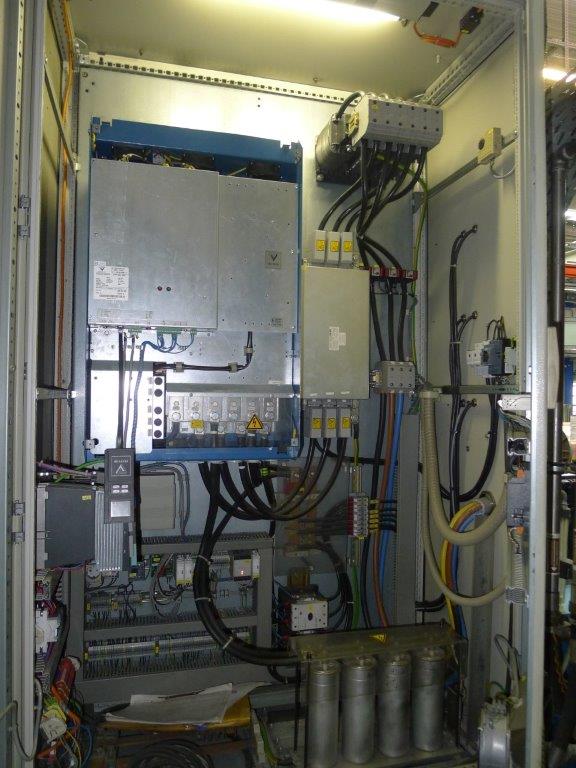

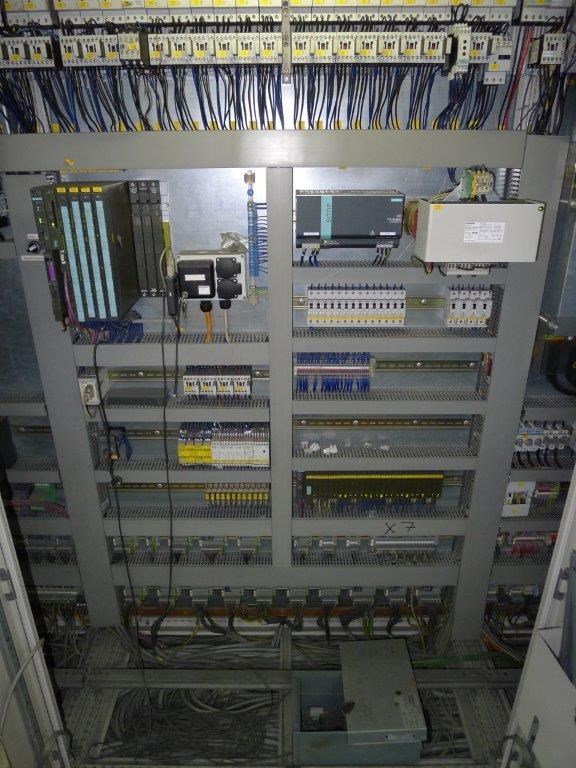

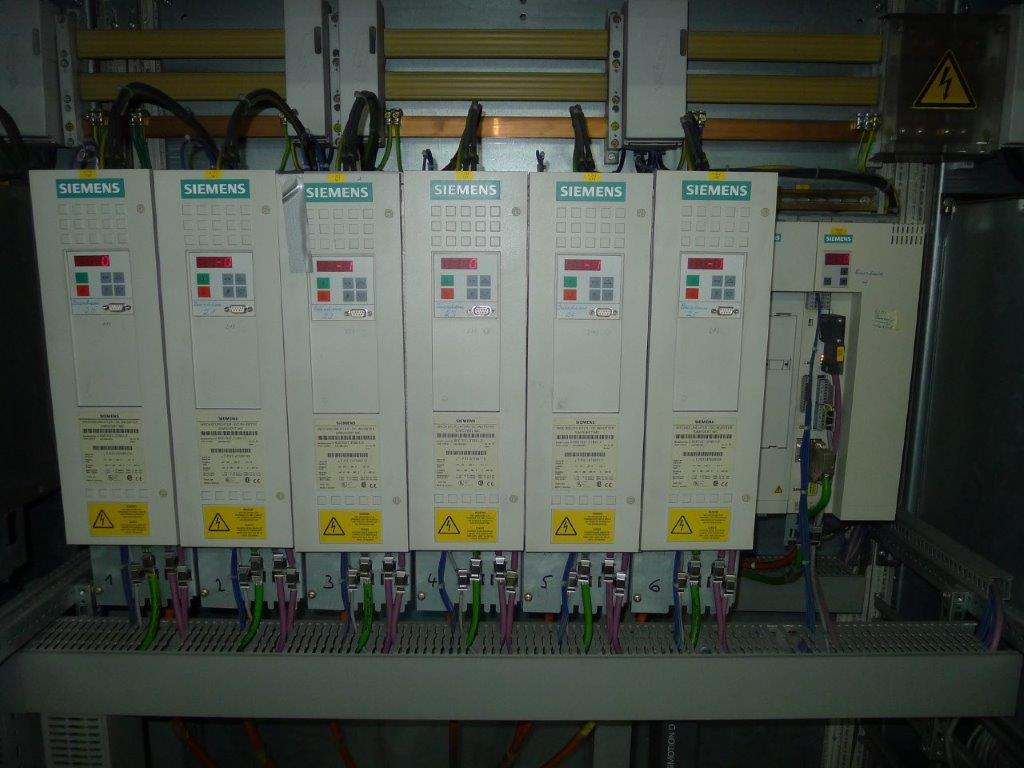

- armoire électrique: disponible
-
données supplémentaires:
Material data:
Primary material: CU soft, hard
Strength: 250 / 400 N/mm²
se compose de

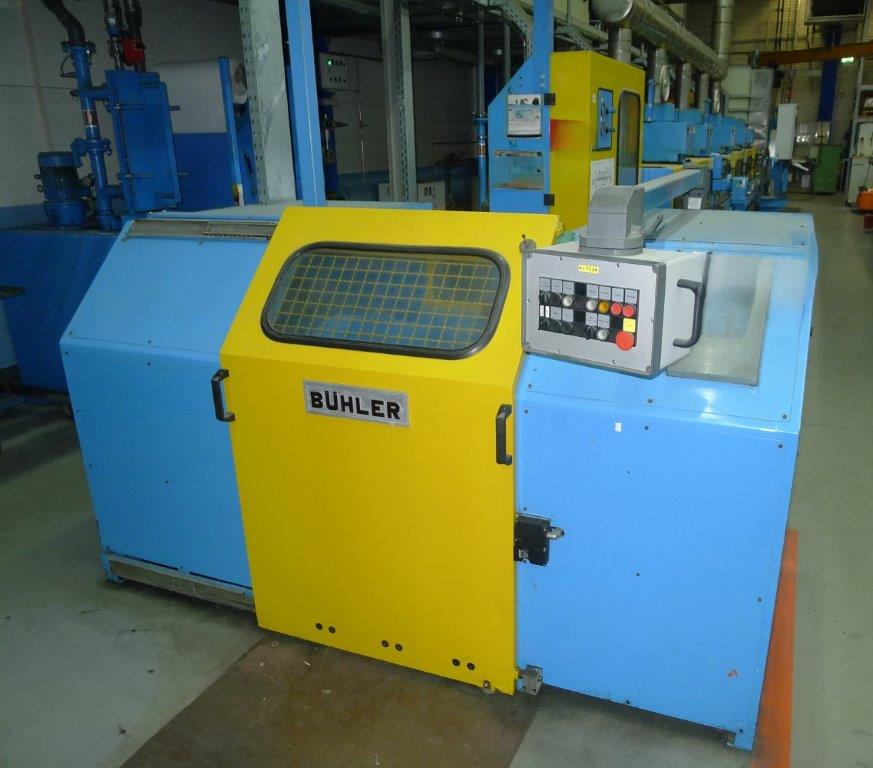

BÜHLER dévidoir à défilée
BÜHLER pintle-type pay-off

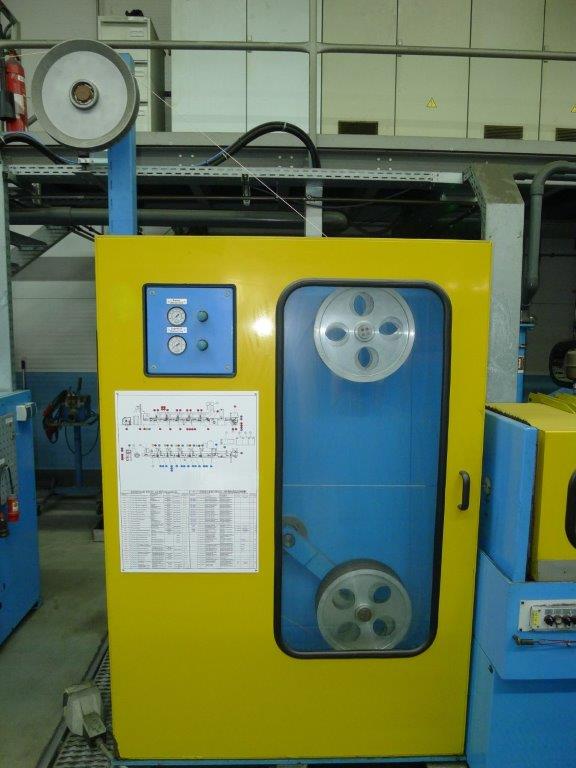

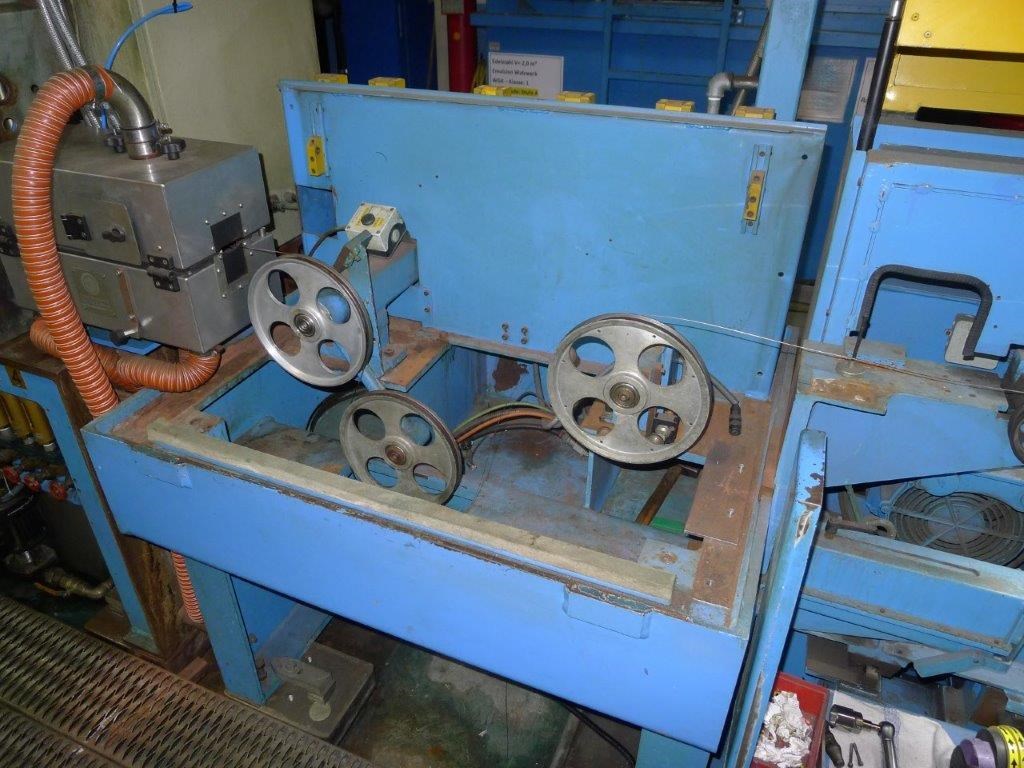

BÜHLER pantin accumulateur

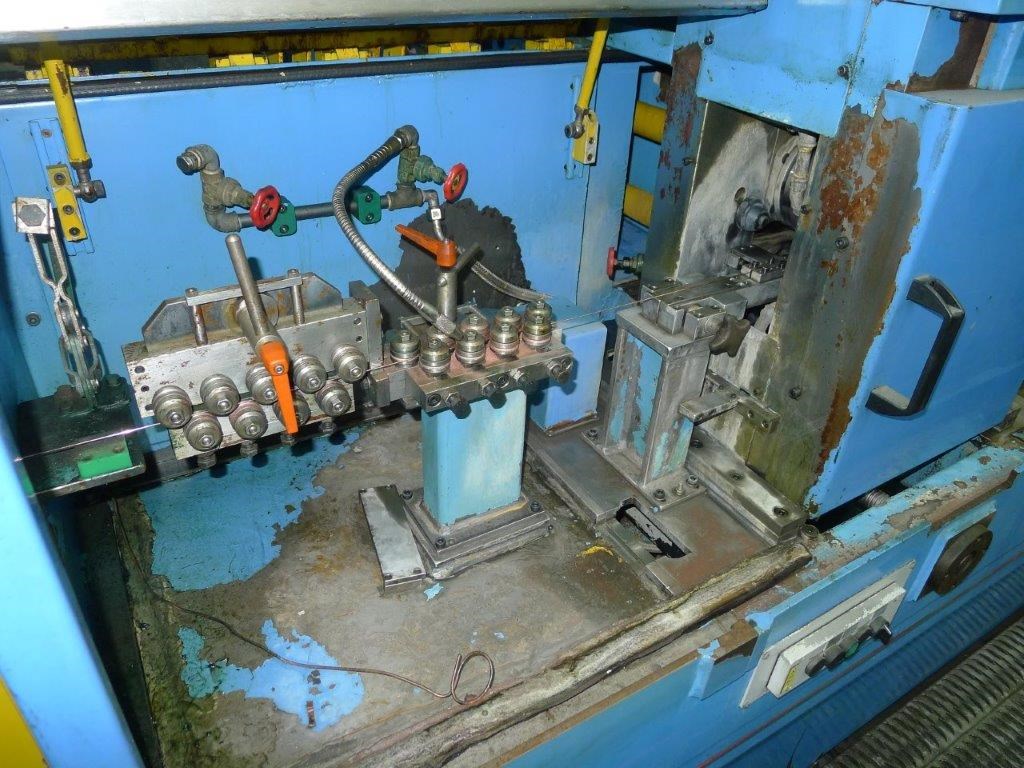

BÜHLER straightening device

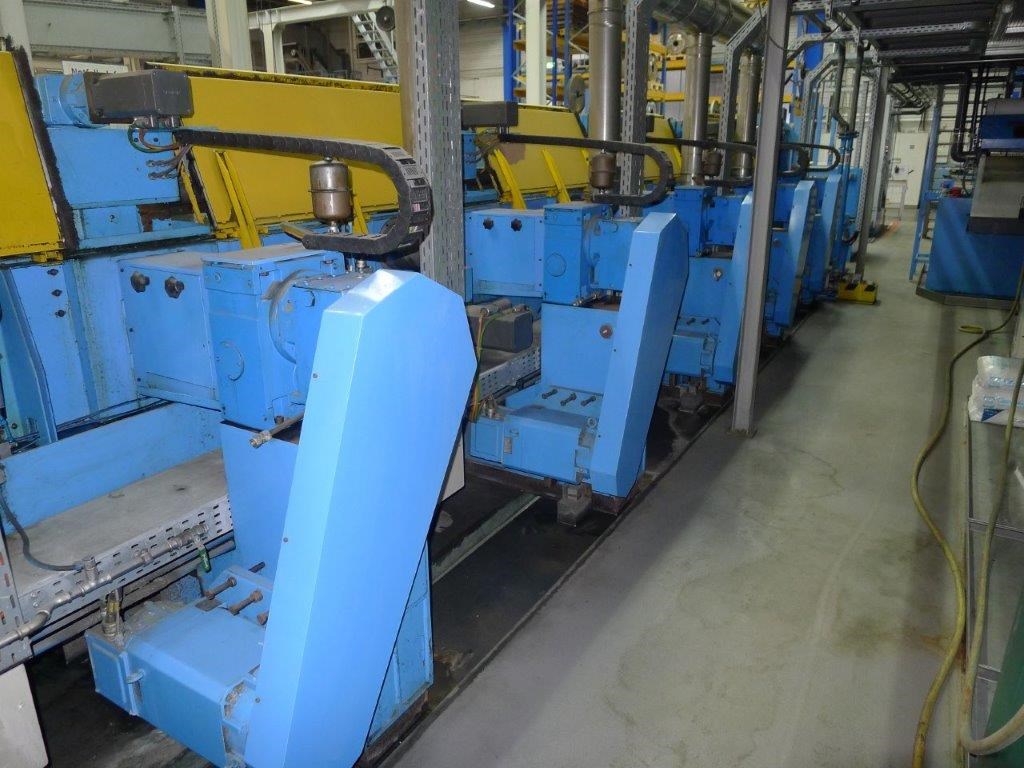

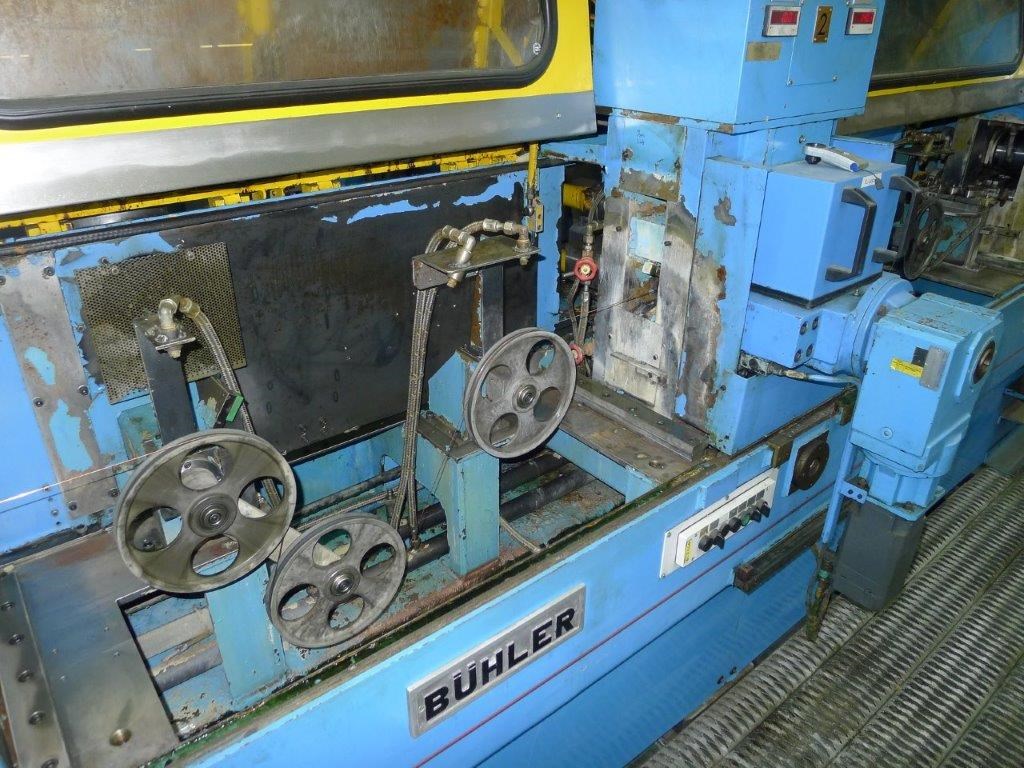

BÜHLER duo rolling mill 1 + 2
BÜHLER Régulateur de tension
BÜHLER four roll mill
BÜHLER duo rolling mill 3+4

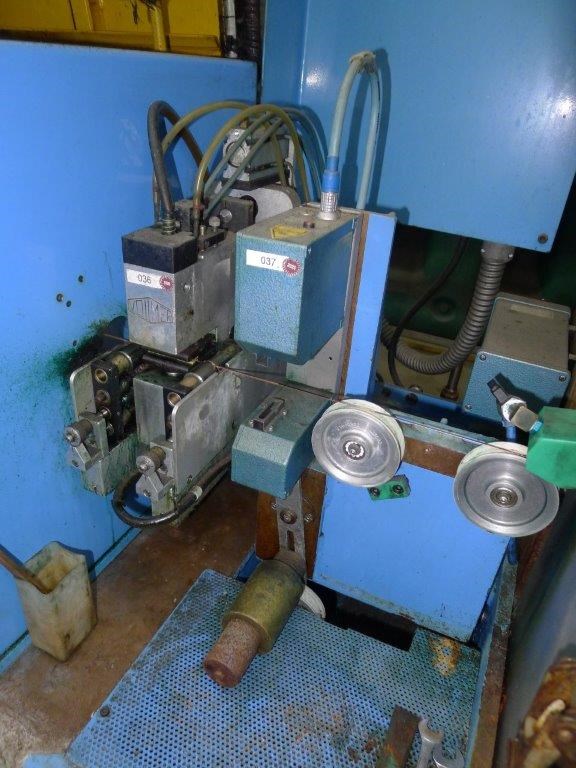

BÜHLER miniature edge roller
BÜHLER pay-off with integrated brush device

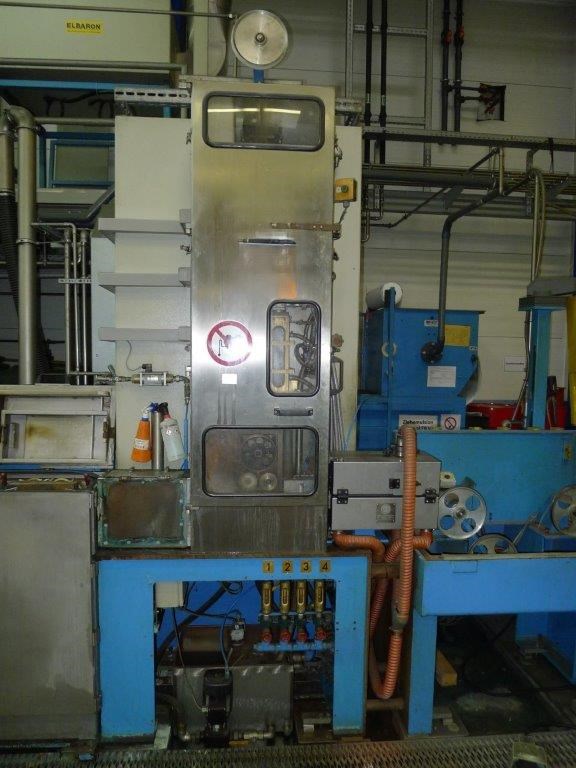

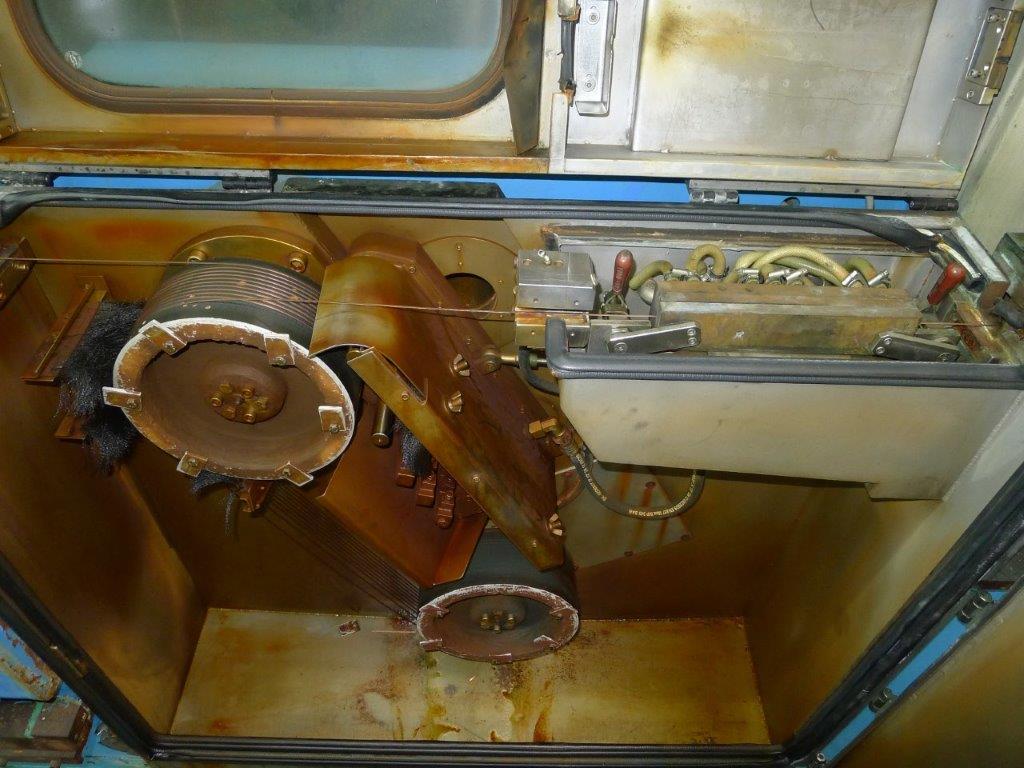

Plasma Inline anealer
BÜHLER Flange spooler

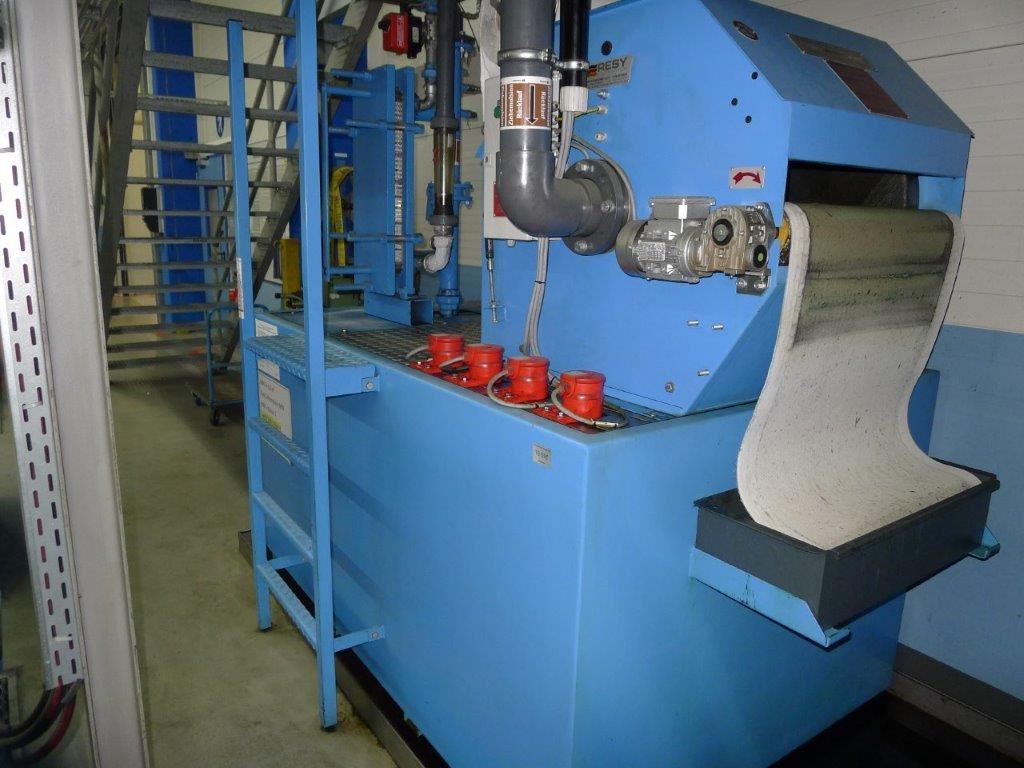

BÜHLER cooling unit (outside cooling)
BÜHLER cooling unit (capstan cleaning)
